P_2x4B_160

P_2x4B_160_C

Parts committed by Isaac Childres on date 5/15/2007

Part	ID
BBM	BBM_160-2x4B
VHDI	2x4_645

ROC ROC wafer Label

ROC0 KBNG0QT 55C

ROC1 KBNG0QT 03C

ROC2 KBNG0QT 43D

ROC3 KBNG0QT 23A

ROC4 KBNG0QT 33A

ROC5 KBNG0QT 43B

ROC6 KBNG0QT 43A

ROC7 KBNG0QT 23D

ROC	ROC wafer	Label
ROC0	KBNG0QT	55C
ROC1	KBNG0QT	03C
ROC2	KBNG0QT	43D
ROC3	KBNG0QT	23A
ROC4	KBNG0QT	33A
ROC5	KBNG0QT	43B
ROC6	KBNG0QT	43A
ROC7	KBNG0QT	23D

Inspected by Lockwood Gale on date 5/30/2007

LR_dev 0.008

LL_dev 0.014

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 5/30/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/30/2007 by Perera Rajiv

PLAQUETTE made READY for testing on 5/30/2007 by Perera Rajiv

P_2x4B_160_Con 6/1/2007 2:20 PM

PLAQUETTE TESTED on 2007-06-01 by Emily Grace

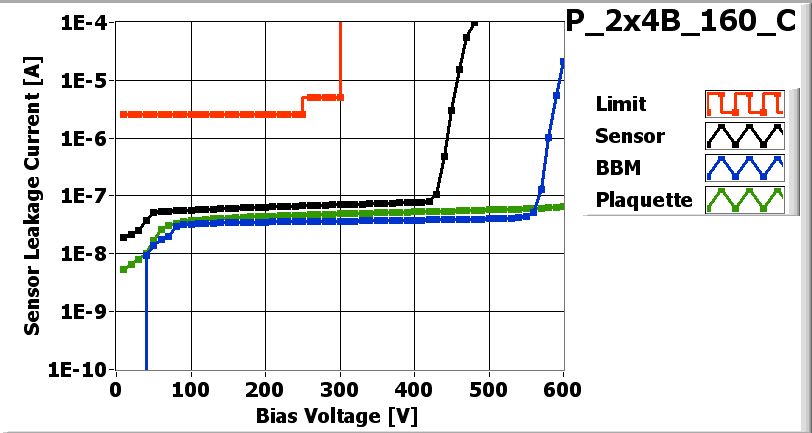

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	162	172	154	148	170	162	154	162
Vana	131	137	145	141	135	144	145	138
Cal_Del	63	67	65	62	71	72	79	80
Vthrs_Comp	83	83	90	88	83	89	82	86
Unbumped	0	2	0	0	0	0	0	1
Dead	0	0	0	0	0	1	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	2	0	0	0	1	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

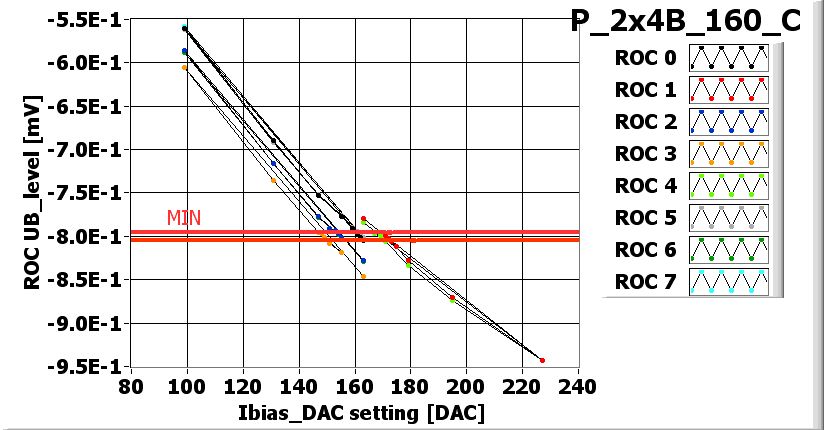

	I_BIAS_DAC_XML-File

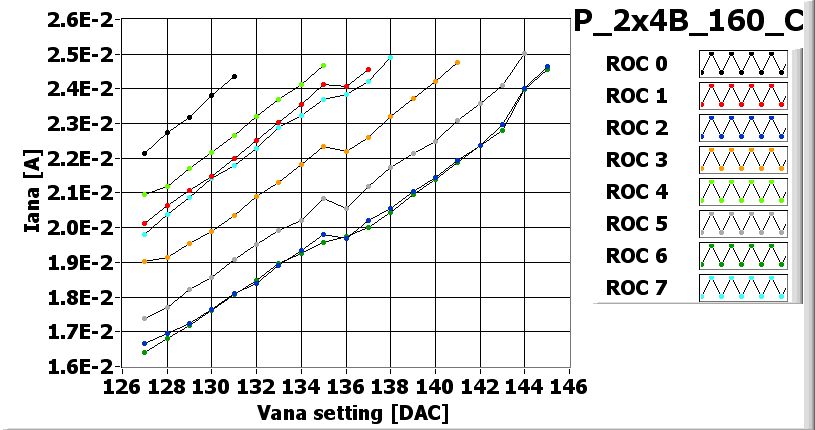

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	125	95	95	100	115	95	85	105
Vsf	140	140	145	140	140	145	150	145
VoffsetOp	75	100	105	110	105	115	95	90
VIbias_PH	95	100	100	100	105	100	100	100

Noise MAP at VMAX

Efficiency MAP

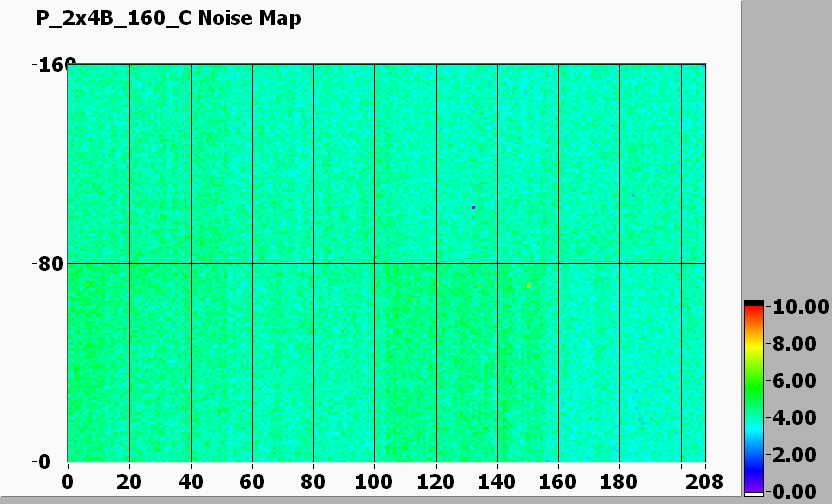

Noise MAP at -200 V

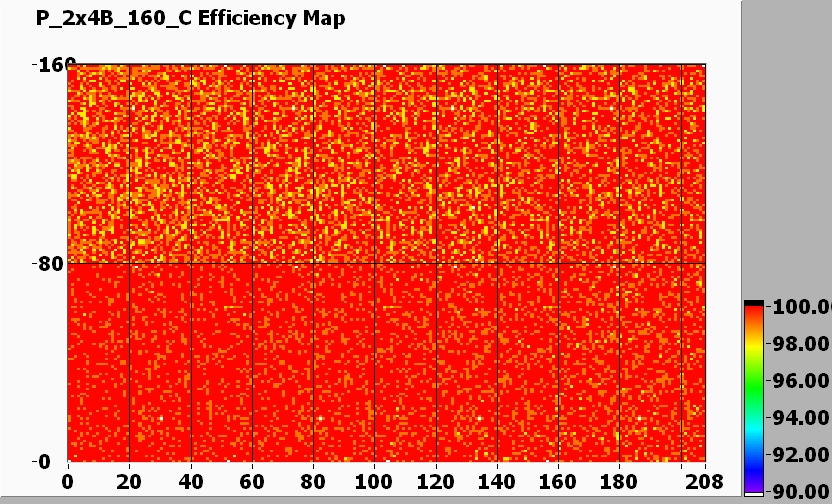

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-04

Plaquette assigned to panel P4R_082
