P_2x4B_157

P_2x4B_157_A

Parts committed by Bolla Gino on date 12/15/2006

Part	ID
BBM	BBM_157-2x4B
VHDI	2x4_320

ROC ROC wafer Label

ROC0 W21_XA4KFIT 37B

ROC1 W21_XA4KFIT 36D

ROC2 W21_XA4KFIT 36C

ROC3 W21_XA4KFIT 36B

ROC4 W21_XA4KFIT 12A

ROC5 W21_XA4KFIT 12B

ROC6 W21_XA4KFIT 12C

ROC7 W21_XA4KFIT 13A

ROC	ROC wafer	Label
ROC0	W21_XA4KFIT	37B
ROC1	W21_XA4KFIT	36D
ROC2	W21_XA4KFIT	36C
ROC3	W21_XA4KFIT	36B
ROC4	W21_XA4KFIT	12A
ROC5	W21_XA4KFIT	12B
ROC6	W21_XA4KFIT	12C
ROC7	W21_XA4KFIT	13A

Inspected by Arndt Kirk on date 12/18/2006

LR_dev 0.025

LL_dev 0.060

FINAL COMMENT by Arndt Kirk No assembly problem. No wirebond problem. BBM motion ("bounce") during wirebonding of ROC0.

PLAQUETTE made READY for testing on 12/18/2006 by Arndt Kirk

P_2x4B_157_Aon 12/18/2006 1:48 PM

PLAQUETTE TESTED on 2006-12-18 by Petra Merkel

IV_XML-File

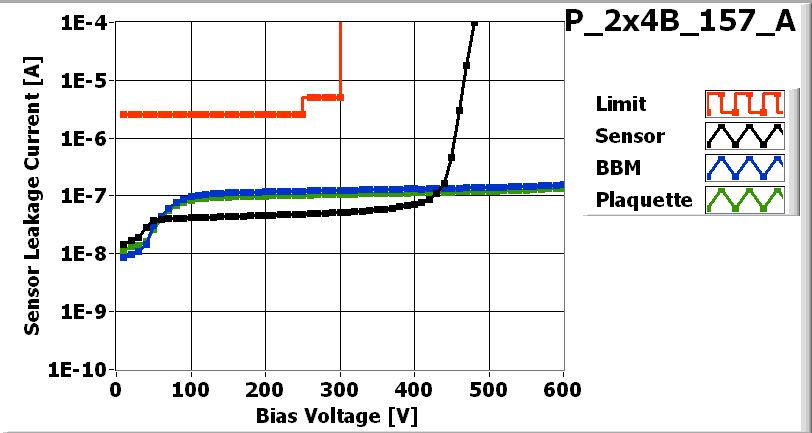

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

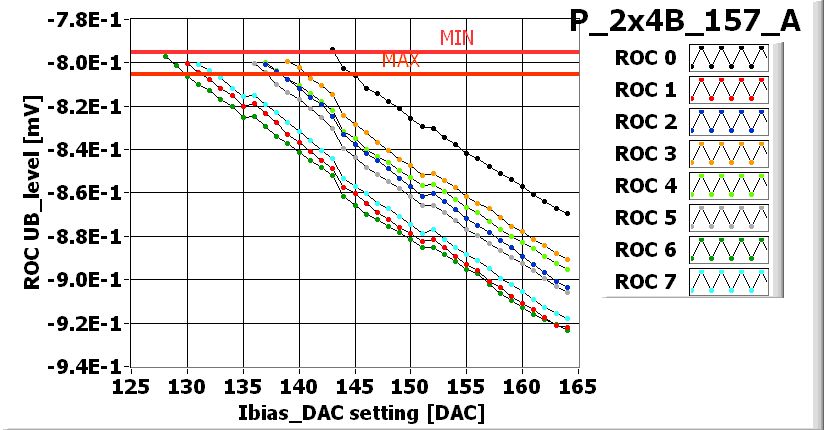

Ibias_DAC	143	130	137	139	137	136	128	131

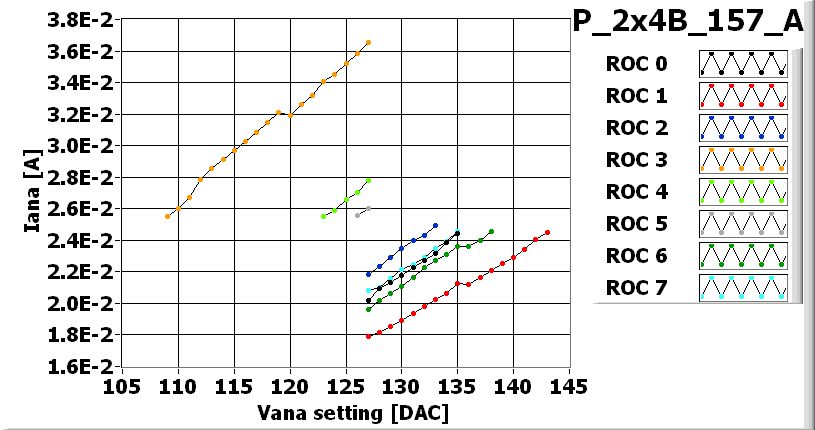

Vana	135	143	133	109	123	126	138	135
Cal_Del	76	82	95	101	89	79	87	71
Vthrs_Comp	67	80	64	65	74	81	71	76
Unbumped	0	0	0	0	0	0	0	1
Dead	1	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	1	0	0	0	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2007-01-05

Plaquette assigned to panel P4L_023
