| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

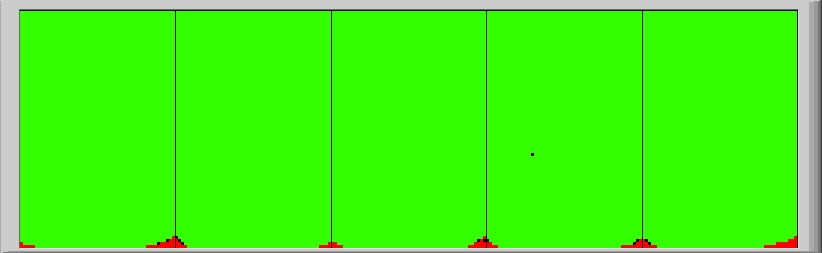

| P_1x5R_061_C | 4 | | | |

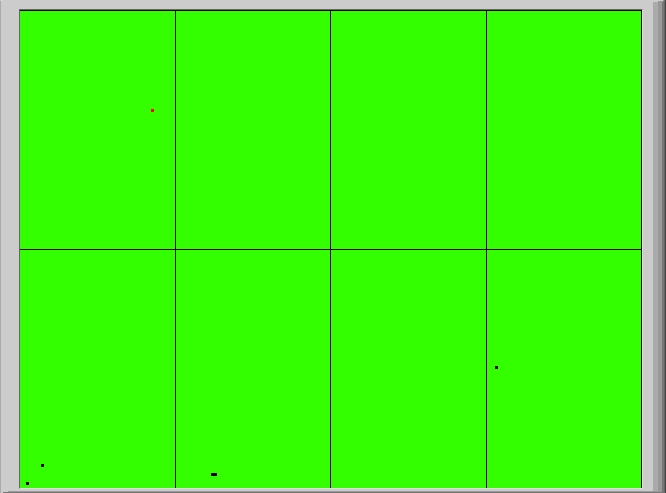

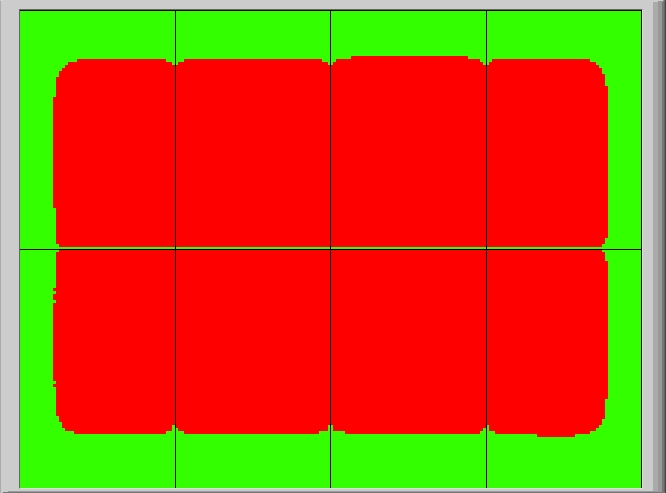

| P_2x4B_157_A | 3 | | | |
| P_2x3T_081_A | 2 | | | |
| Panel assembly comments |
|---|
| 12Feb/Sudhir: This panel is unecanpsulated as of today. It was PTA and light tested today by Alan Hahn. 12Mar2007/ME: Max voltage = 380V, not traceable to any plaquette. 26Mar2007/SM: Breakdown at 380 V is due to the outer loop. See elog entries 3087, 3086, 2882. 19apr07/ME: Upgrade to A- |
