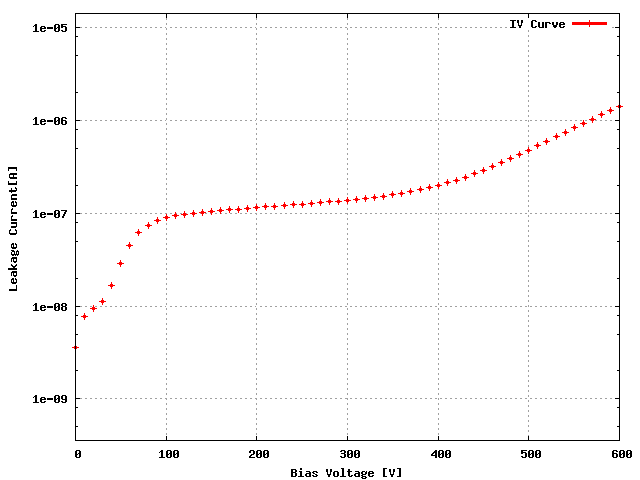

Sensor: S_2x4B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 14C |
ROC1 | W29_X64K5ST | 14B |
ROC2 | W29_X64K5ST | 13D |
ROC3 | W29_X64K5ST | 13C |
ROC4 | W33_XC4K5LT | 62A |
ROC5 | W33_XC4K5LT | 62B |
ROC6 | W33_XC4K5LT | 62C |
ROC7 | W33_XC4K5LT | 62D |
Ibias_DAC, Ibias_DAC Data | 126 | 142 | 144 | 140 | 142 | 146 | 132 | 144 |
Vana, VanaData | 104 | 135 | 130 | 137 | 111 | 132 | 137 | 117 |
CalDelData and plots | 89 | 70 | 77 | 74 | 76 | 88 | 79 | 93 |
VthrCompData and plots | 62 | 79 | 68 | 85 | 79 | 77 | 75 | 72 | Depletion Voltage is -54 and suggested operational voltage is -94
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

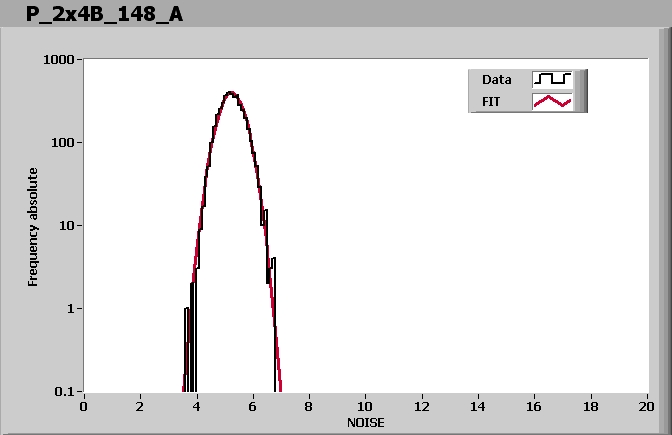

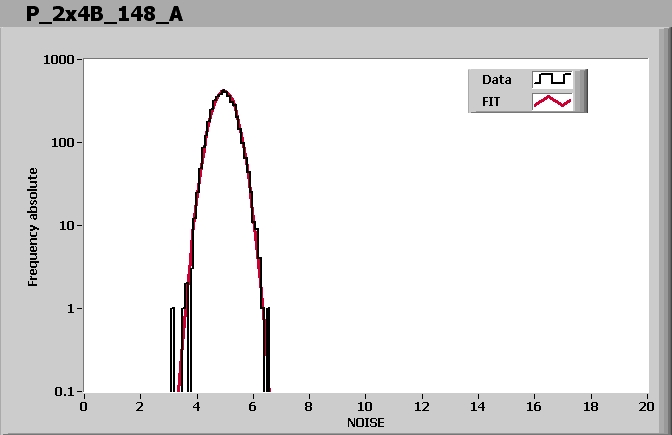

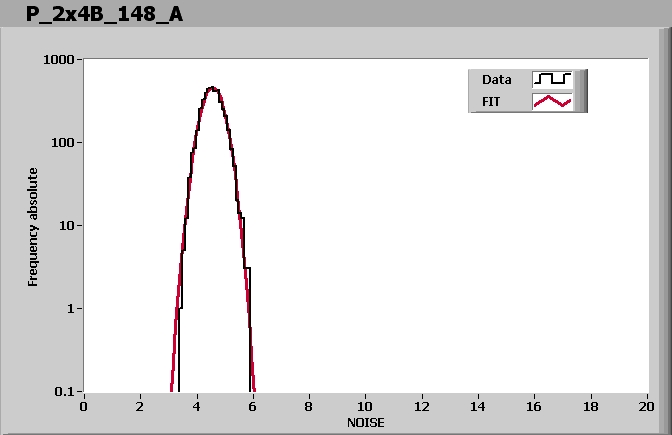

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 175 | 130 | 125 | 110 | 165 | 130 | 100 | 145 |
Vsf | 130 | 140 | 140 | 140 | 130 | 145 | 140 | 135 |
VoffsetOp | 70 | 75 | 75 | 110 | 80 | 80 | 70 | 75 |
VIbias_PH | 100 | 95 | 100 | 100 | 95 | 100 | 100 | 100 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:50 AM
