P_2x4B_147_A

Parts committed by Bolla Gino on date 1/22/2007

Part	ID
BBM	BBM_147-2x4B
VHDI	2x4_272

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	57A
ROC1	W30_X74K5RT	56C
ROC2	W30_X74K5RT	56B
ROC3	W30_X74K5RT	55D
ROC4	W30_X74K5RT	30B
ROC5	W30_X74K5RT	30C
ROC6	W30_X74K5RT	30D
ROC7	W30_X74K5RT	31A

Inspected by Lockwood Gale on date 1/25/2007

LR_dev	0.046
LL_dev	0.058

FINAL COMMENT by Lockwood Gale

No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 1/25/2007 by Lockwood Gale

P_2x4B_147_Aon 1/25/2007 3:57 PM

P_2x4B_147_Aon 1/25/2007 3:57 PM

PLAQUETTE TESTED on 2007-01-25 by Isaac Childres

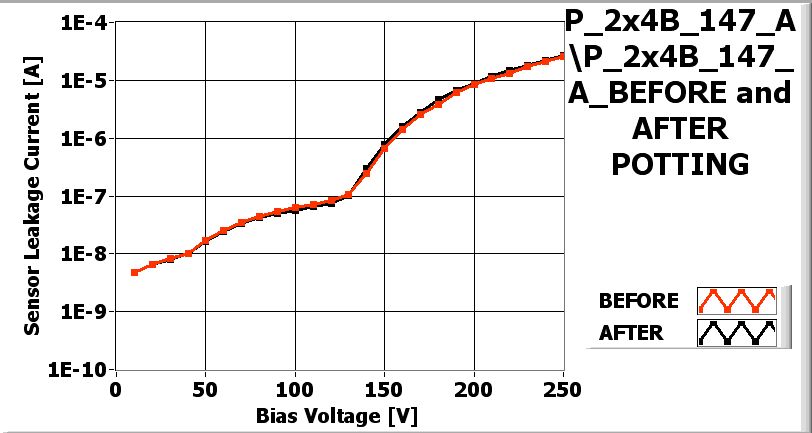

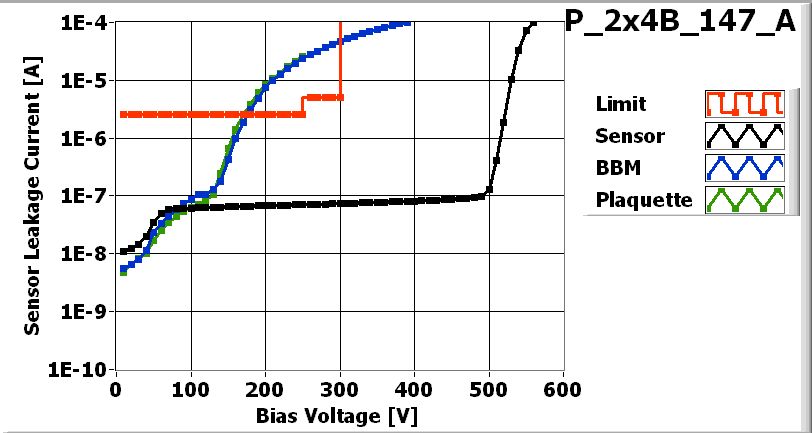

	IV_XML-File Maximum Voltage 250 V

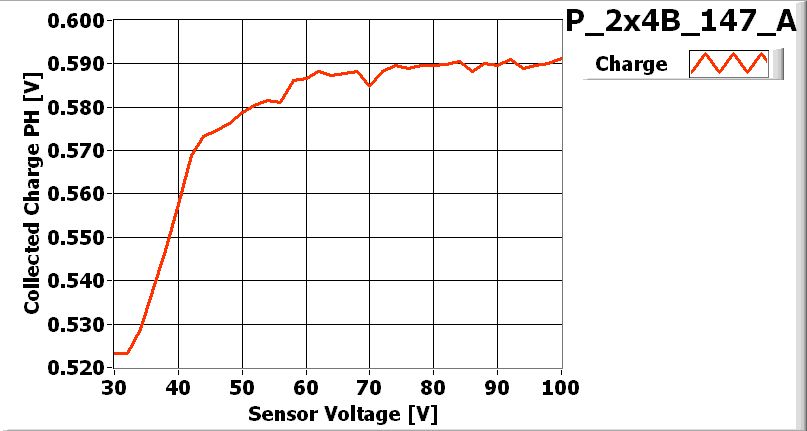

	LASER_XML-File Depletion Voltage 48 V Operational Voltage 88 V

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

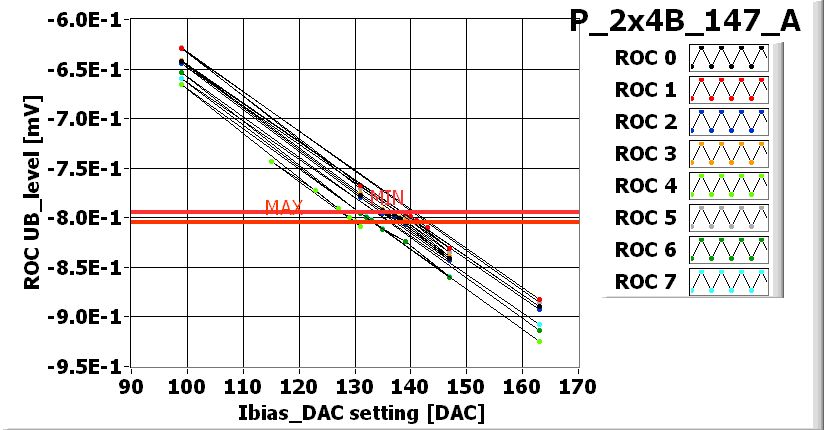

	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

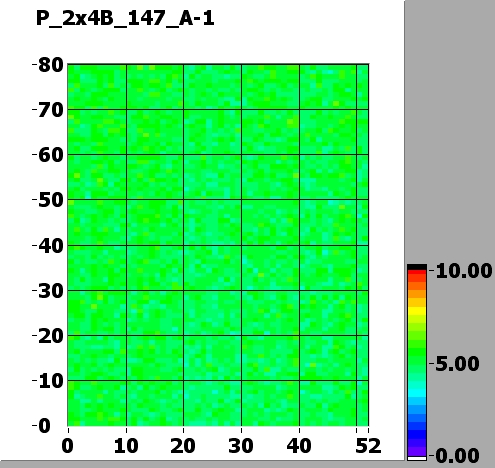

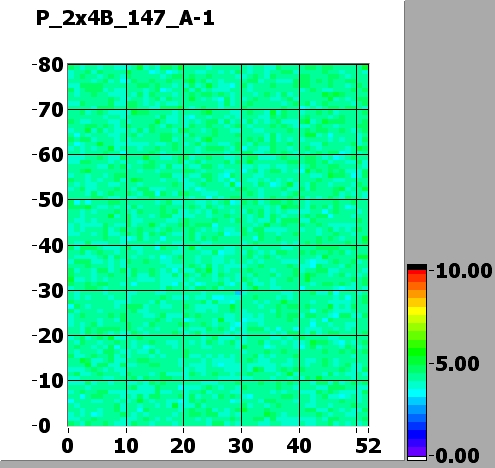

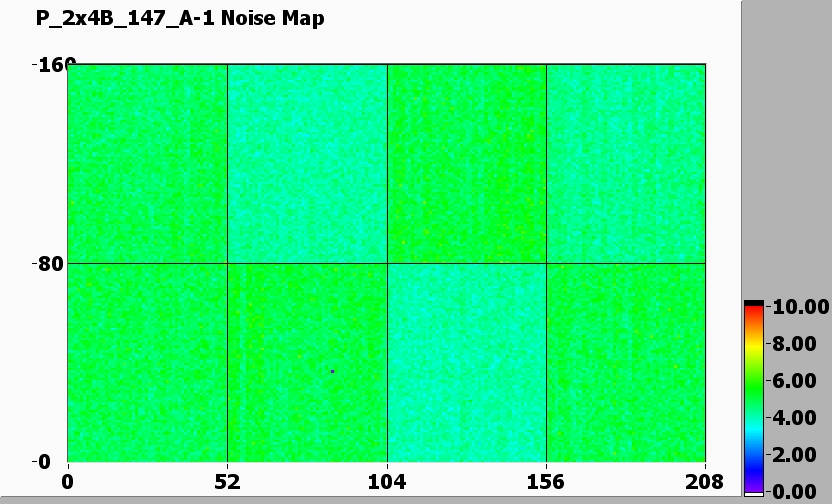

Noise MAP

Efficiency MAP

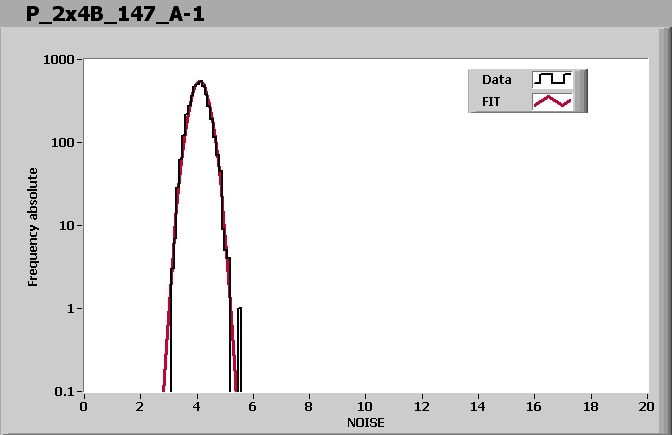

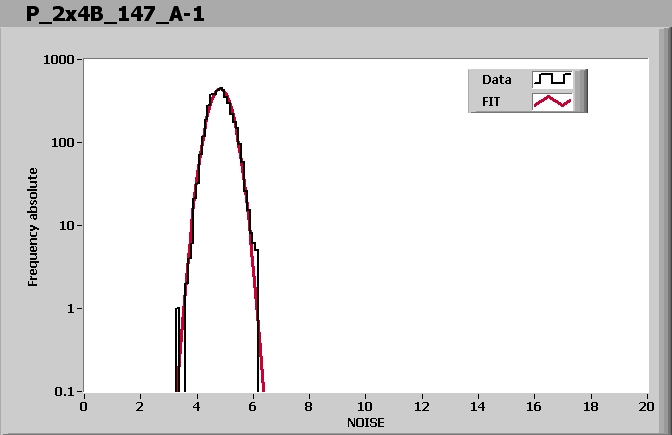

ROC0 NOISE			MEAN = 4.829517 SIGMA = 0.372977
ROC1 NOISE			MEAN = 4.944968 SIGMA = 0.413174
ROC2 NOISE			MEAN = 4.100044 SIGMA = 0.308262

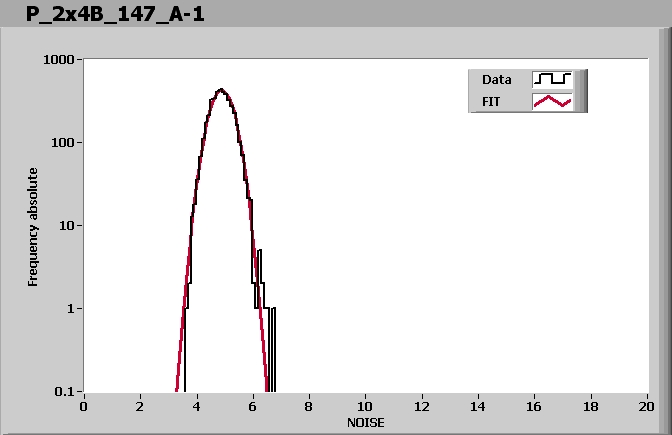

ROC3 NOISE			MEAN = 4.882601 SIGMA = 0.388748
ROC4 NOISE			MEAN = 4.354664 SIGMA = 0.354649

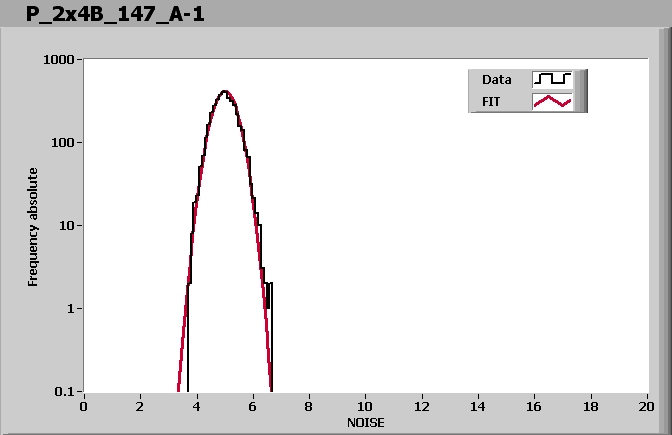

ROC5 NOISE			MEAN = 4.996550 SIGMA = 0.404576
ROC6 NOISE			MEAN = 4.153355 SIGMA = 0.303864
ROC7 NOISE			MEAN = 4.783734 SIGMA = 0.382510

PLAQUETTE encapsulated on 2/7/2007 by Arndt Kirk

P_2x4B_147_A-1on 2/9/2007 9:29 AM

P_2x4B_147_A-1on 2/9/2007 9:29 AM AFTER POTTING
