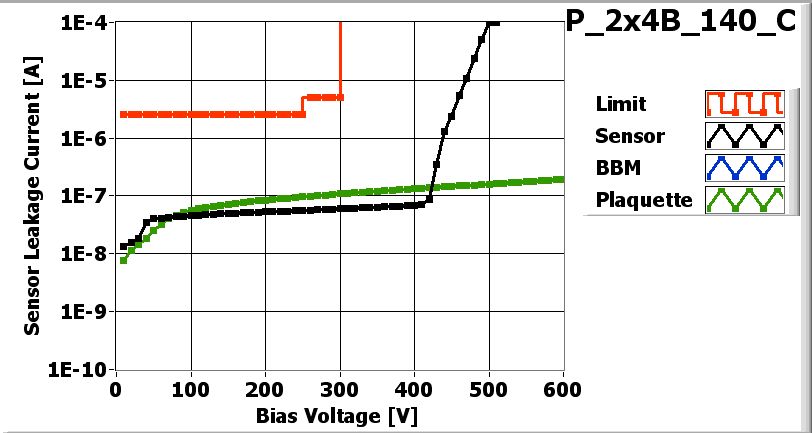

![[IMAGE] of](P_2x4B_140_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_140_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_140-2x4B |
| VHDI | 2x4_409 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DULQEDT | 14A |
| ROC1 | DULQEDT | 04A |
| ROC2 | DULQEDT | 03D |
| ROC3 | DULQEDT | 14D |
| ROC4 | DULQEDT | 14B |
| ROC5 | DULQEDT | 04D |
| ROC6 | DULQEDT | 54B |
| ROC7 | DULQEDT | 17B |
Inspected by Lockwood Gale on date 6/12/2007
| LR_dev | 0.060 |
| LL_dev | 0.043 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/12/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/12/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/12/2007 by Kozak Brian
P_2x4B_140_Con 6/13/2007 1:25 PM
P_2x4B_140_Con 6/13/2007 1:25 PM
PLAQUETTE TESTED on 2007-06-13 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 152 | 144 | 150 | 158 | 162 | 154 | 148 | 142 | |
| Vana | 144 | 135 | 144 | 135 | 134 | 144 | 141 | 145 | |
| Cal_Del | 93 | 83 | 99 | 95 | 97 | 97 | 94 | 103 | |
| Vthrs_Comp | 83 | 91 | 77 | 89 | 80 | 84 | 73 | 84 | |
| Unbumped | 1 | 0 | 112 | 0 | 0 | 53 | 0 | 3 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 112 | 0 | 0 | 53 | 0 | 3 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

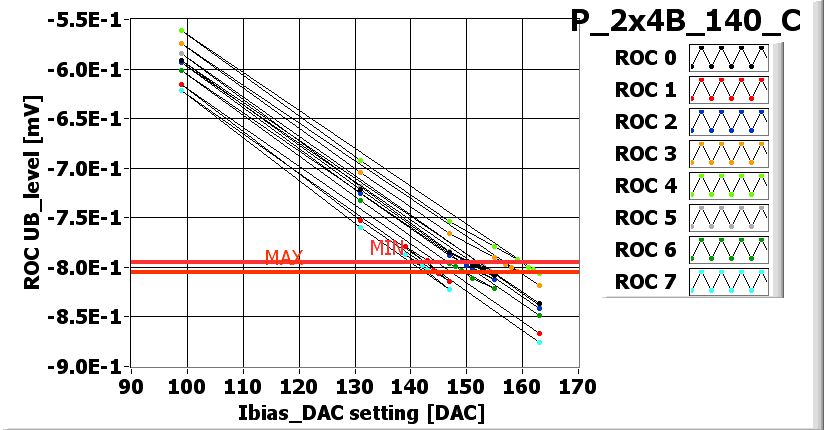

![[IMAGE] of](P_2x4B_140_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4B_140_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_140_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_140_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_140_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_140_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 105 | 95 | 100 | 115 | 85 | 90 | 90 |
| Vsf | 150 | 140 | 145 | 140 | 140 | 140 | 145 | 145 |
| VoffsetOp | 100 | 90 | 110 | 100 | 105 | 85 | 95 | 115 |
| VIbias_PH | 100 | 105 | 105 | 100 | 105 | 105 | 95 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4B_140_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_140_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x4B_140_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_140_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
