P_2x4B_140_C

Production testing

Date:6/13/2007

Operator: Emily Grace

start testing time:1:25 PM

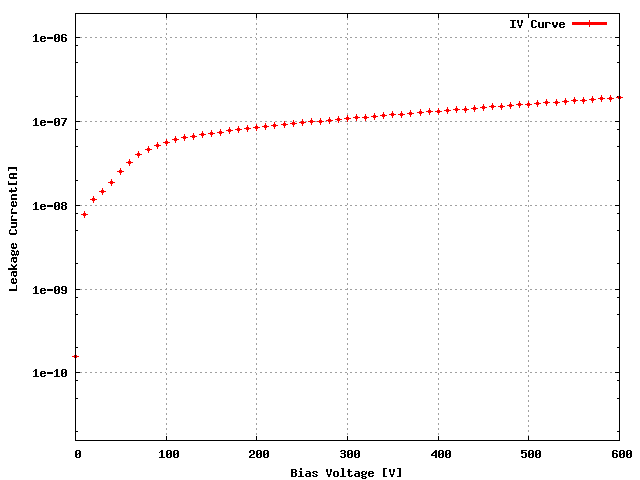

Sensor: S_2x4B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0DULQEDT14A
ROC1DULQEDT04A
ROC2DULQEDT03D
ROC3DULQEDT14D
ROC4DULQEDT14B
ROC5DULQEDT04D
ROC6DULQEDT54B
ROC7DULQEDT17B

Depletion Voltage is -40 and suggested operational voltage is -80
Ibias_DAC, Ibias_DAC Data 152 144 150 158 162 154 148 142
Vana, VanaData 144 135 144 135 134 144 141 145
CalDelData and plots93839995979794103
VthrCompData and plots8391778980847384
TestDdata ,TestD Plots1063003606
LightData ,Light Plots10112005303
Pass/Fail TestD GOOD GOOD BAD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD BAD GOOD GOOD BAD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe8510595100115859090
Vsf150140145140140140145145
VoffsetOp100901101001058595115
VIbias_PH1001051051001051059595

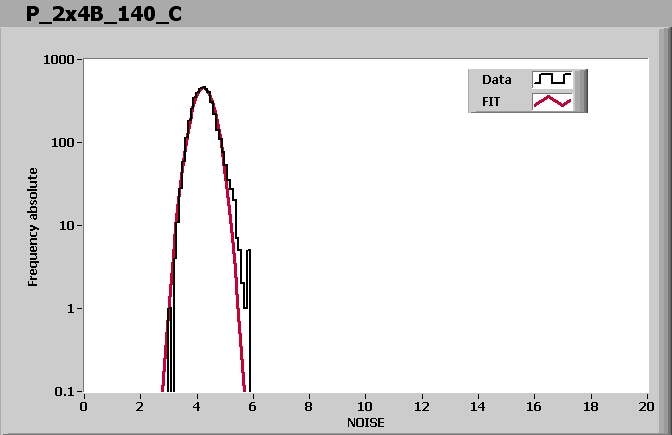

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.232901

SIGMA = 0.352328
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.571276

SIGMA = 0.356832

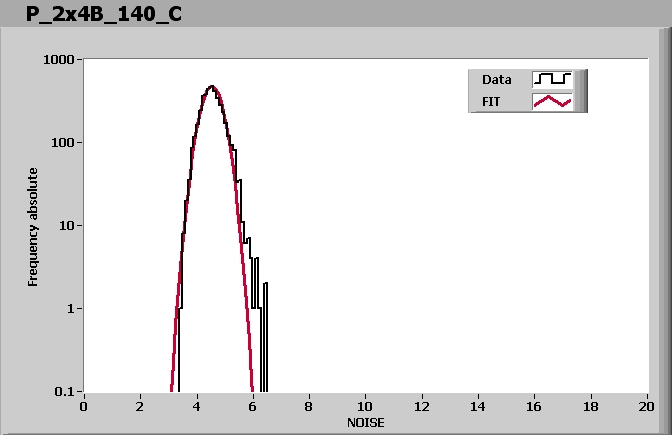

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.530743

SIGMA = 0.352236
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.062566

SIGMA = 0.308747
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.213431

SIGMA = 0.338303
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.701652

SIGMA = 0.401934
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.390135

SIGMA = 0.360377

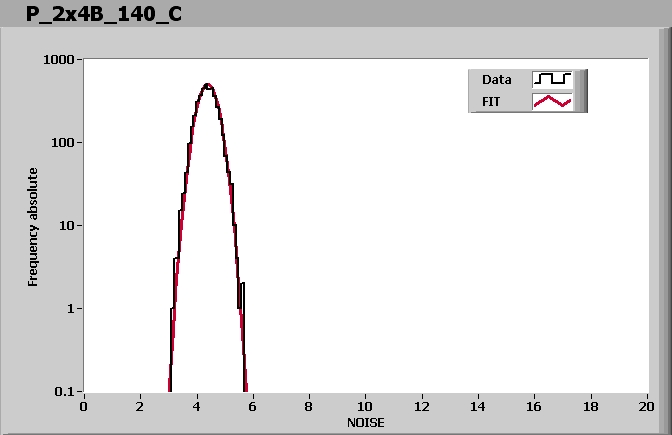

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.378939

SIGMA = 0.332526

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:50 PM
