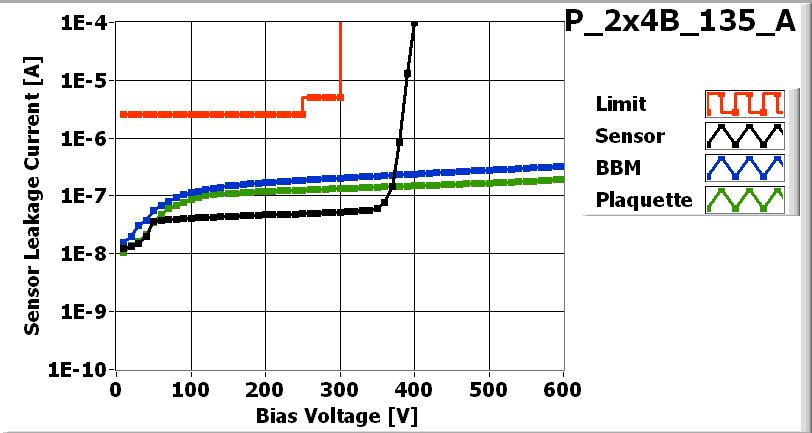

![[IMAGE] of](P_2x4B_135_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

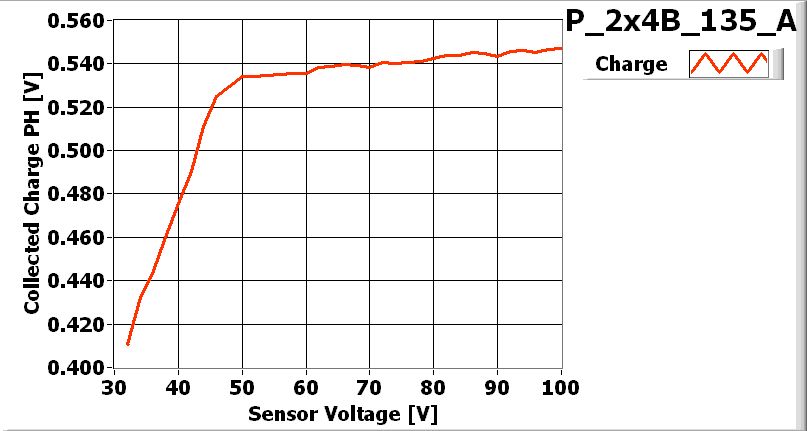

![[IMAGE] of](P_2x4B_135_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_135-2x4B |
| VHDI | 2x4_481 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 39C |
| ROC1 | W36_XD4K3LT | 39A |
| ROC2 | W36_XD4K3LT | 38B |
| ROC3 | W36_XD4K3LT | 38A |
| ROC4 | W36_XD4K3LT | 55D |
| ROC5 | W36_XD4K3LT | 56A |
| ROC6 | W36_XD4K3LT | 56B |
| ROC7 | W36_XD4K3LT | 56D |
Inspected by Arndt Kirk on date 3/21/2007
| LR_dev | 0.073 |
| LL_dev | 0.085 |
| FINAL COMMENT by Arndt Kirk | no assembly problems All wirebonds OK. ROC3 chn 27,32 required multiple attempts to bond to VHDI pads. |
PLAQUETTE made READY for ENCAPSULATION on 3/21/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/21/2007 by Ozhan Koybasi
P_2x4B_135_Aon 3/22/2007 10:18 AM
P_2x4B_135_A-1on 3/22/2007 10:32 AM
P_2x4B_135_A-1on 3/22/2007 10:32 AM
PLAQUETTE TESTED on 2007-03-22 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 148 | 134 | 144 | 154 | 134 | 136 | 144 | |
| Vana | 140 | 130 | 135 | 129 | 146 | 122 | 134 | 126 | |
| Cal_Del | 91 | 90 | 97 | 91 | 76 | 95 | 89 | 87 | |
| Vthrs_Comp | 68 | 77 | 82 | 65 | 89 | 78 | 78 | 83 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

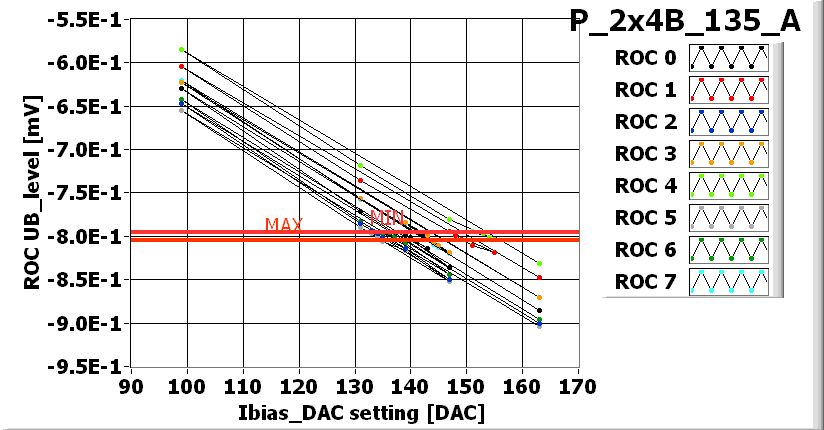

![[IMAGE] of](P_2x4B_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

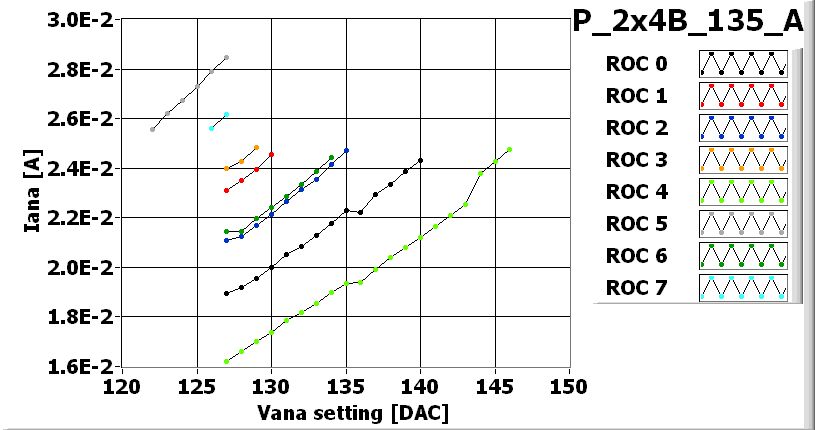

![[IMAGE] of](P_2x4B_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 125 | 125 | 110 | 95 | 145 | 110 | 130 |
| Vsf | 140 | 140 | 140 | 140 | 145 | 135 | 140 | 140 |
| VoffsetOp | 100 | 120 | 85 | 80 | 105 | 60 | 75 | 75 |
| VIbias_PH | 95 | 100 | 100 | 100 | 100 | 105 | 100 | 95 |
Noise MAP
![[IMAGE] of](P_2x4B_135_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_135_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
