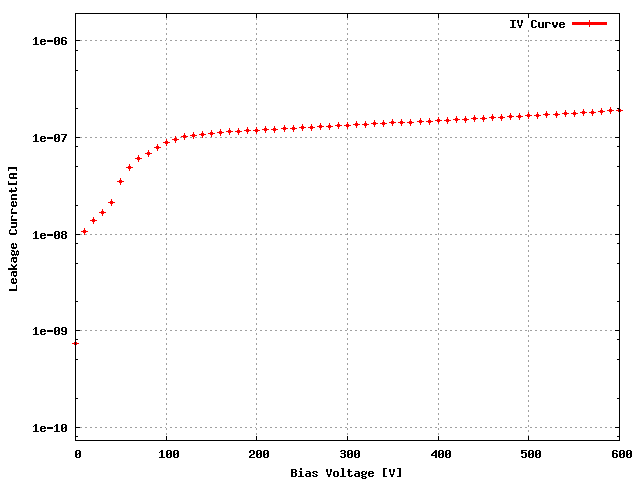

Sensor: S_2x4B_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	39C
ROC1	W36_XD4K3LT	39A
ROC2	W36_XD4K3LT	38B
ROC3	W36_XD4K3LT	38A
ROC4	W36_XD4K3LT	55D
ROC5	W36_XD4K3LT	56A
ROC6	W36_XD4K3LT	56B
ROC7	W36_XD4K3LT	56D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	140	148	134	144	154	134	136	144
Vana, VanaData	140	130	135	129	146	122	134	126
CalDelData and plots	91	90	97	91	76	95	89	87
VthrCompData and plots	68	77	82	65	89	78	78	83
TestDdata ,TestD Plots	1	0	0	0	1	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

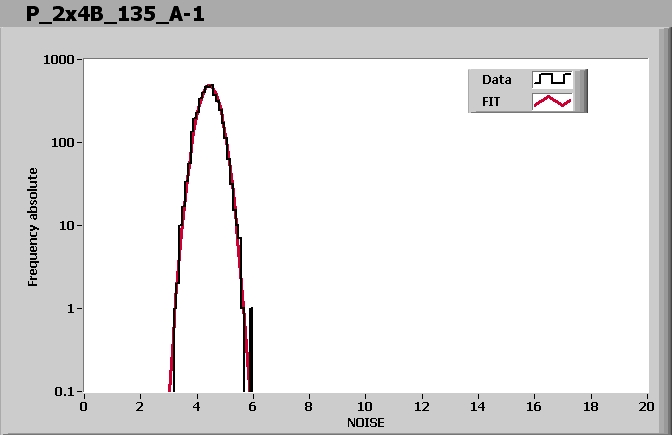

ROC0 NOISE			MEAN = 4.439837 SIGMA = 0.345010

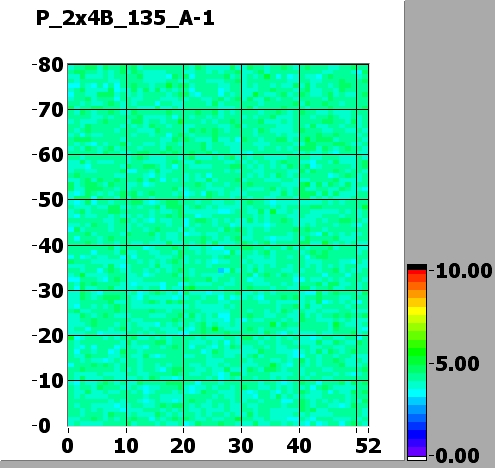

ROC1 NOISE			MEAN = 4.055934 SIGMA = 0.306107
ROC2 NOISE			MEAN = 5.089173 SIGMA = 0.404121

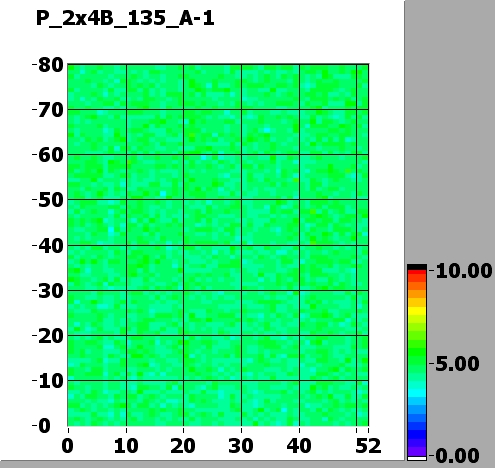

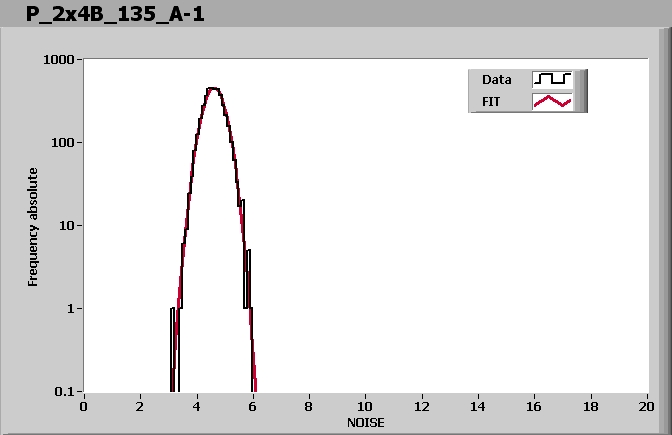

ROC3 NOISE			MEAN = 4.608768 SIGMA = 0.363433
ROC4 NOISE			MEAN = 4.319235 SIGMA = 0.326650

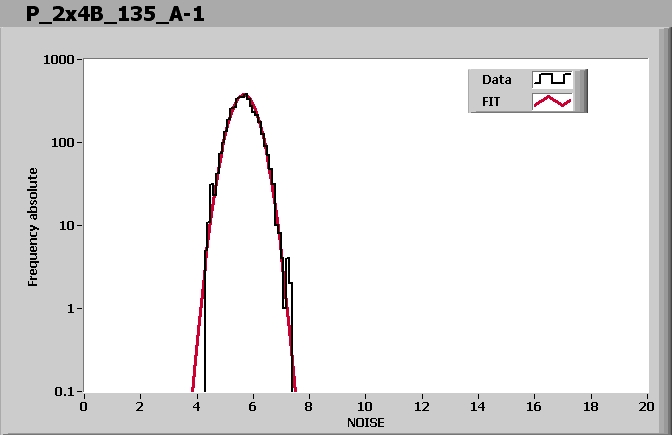

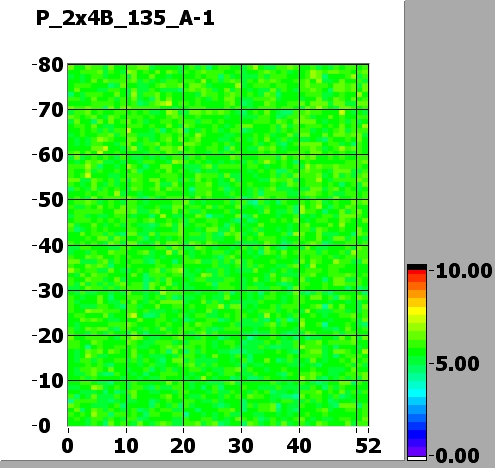

ROC5 NOISE			MEAN = 5.667336 SIGMA = 0.446953
ROC6 NOISE			MEAN = 5.296349 SIGMA = 0.416730

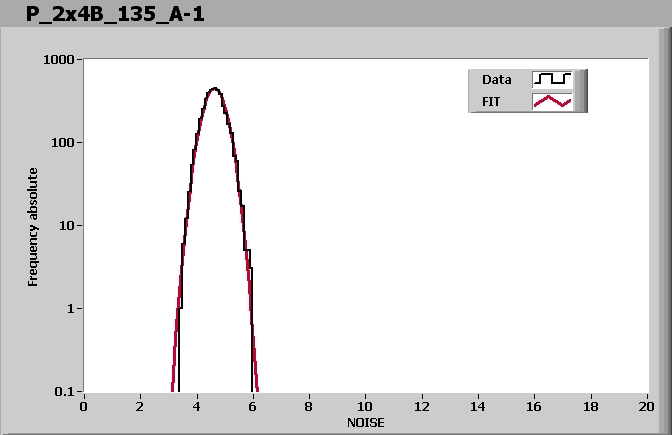

ROC7 NOISE			MEAN = 4.626438 SIGMA = 0.370281

Comment (if any): Good

P_2x4B_135_A.html,

End testing time: 10:52 AM
