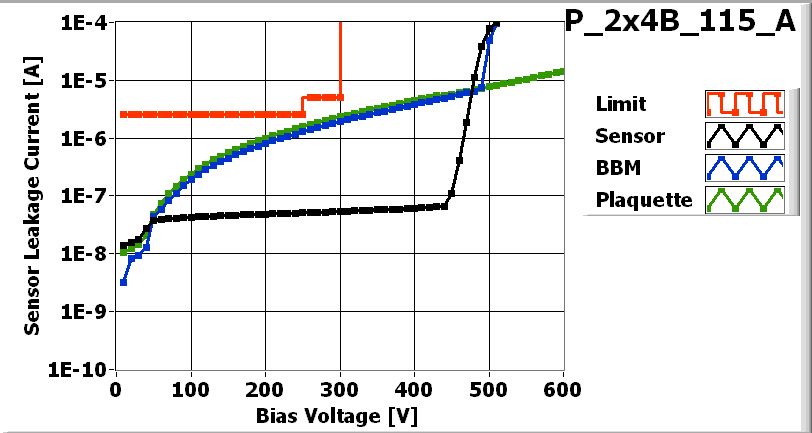

| IV_XML-File |
| Maximum Voltage 600 V |

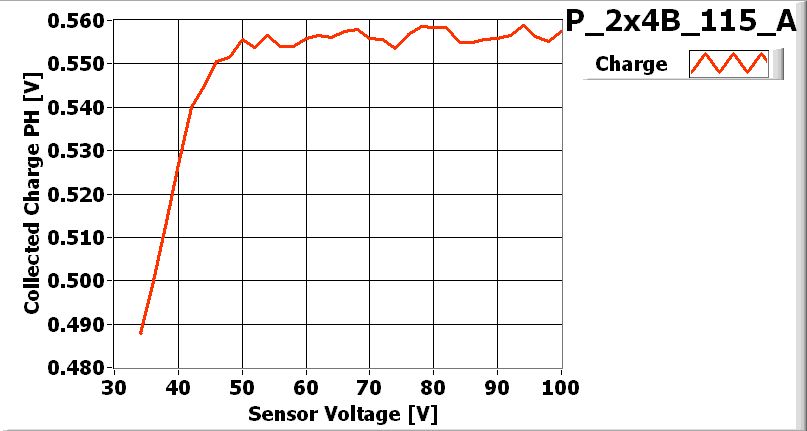

![[IMAGE] of](P_2x4B_115_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_115-2x4B |
| VHDI | 2x4_292 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 40B |
| ROC1 | W34_XA4K3PT | 40A |
| ROC2 | W34_XA4K3PT | 58D |
| ROC3 | W34_XA4K3PT | 58A |
| ROC4 | W34_XA4K3PT | 31D |
| ROC5 | W34_XA4K3PT | 32A |
| ROC6 | W34_XA4K3PT | 32C |
| ROC7 | W34_XA4K3PT | 32D |
Inspected by Arndt Kirk on date 3/9/2007
| LR_dev | 0.045 |
| LL_dev | 0.029 |
| FINAL COMMENT by Arndt Kirk | no assembly problems ROC0 chn 1; ROC1 chn 3; ROC2 chn 21,22,23,24; ROC3 chn 23 required multiple bond attempts to bond to VHDI pads. All wirebonds OK. |
PLAQUETTE made READY for ENCAPSULATION on 3/9/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/9/2007 by Ozhan Koybasi
P_2x4B_115_Aon 3/12/2007 1:38 PM
P_2x4B_115_Aon 3/12/2007 1:38 PM
PLAQUETTE TESTED on 2007-03-12 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 134 | 132 | 148 | 144 | 136 | 150 | 138 | 144 | |
| Vana | 117 | 124 | 144 | 131 | 143 | 153 | 123 | 143 | |
| Cal_Del | 85 | 75 | 95 | 84 | 99 | 73 | 87 | 59 | |
| Vthrs_Comp | 74 | 74 | 80 | 84 | 74 | 92 | 85 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 51 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 4 | 52 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

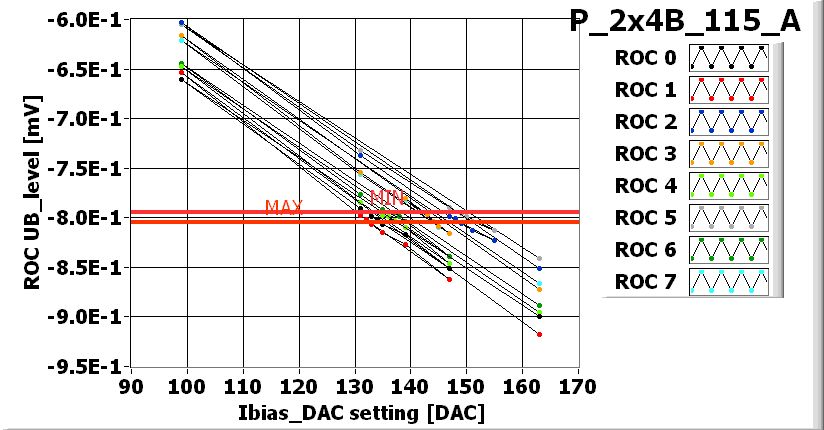

![[IMAGE] of](P_2x4B_115_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

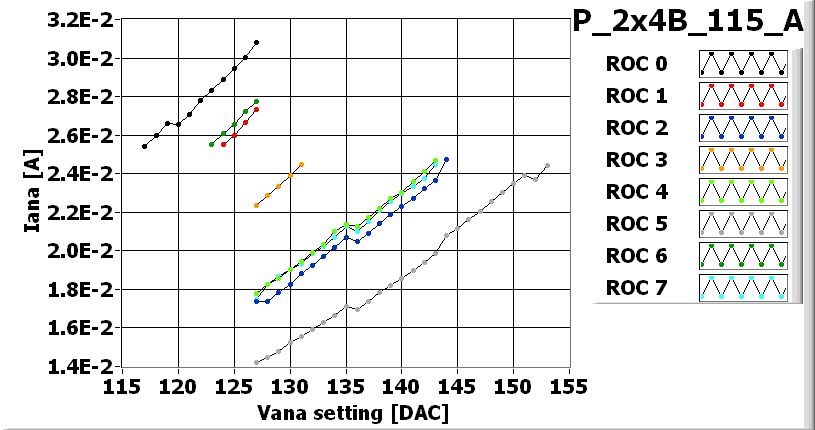

![[IMAGE] of](P_2x4B_115_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_115_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

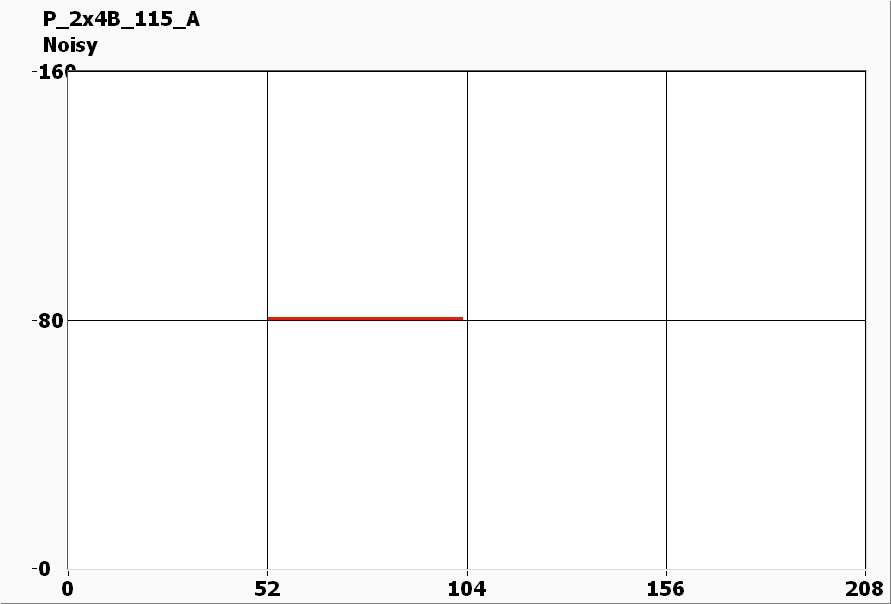

![[IMAGE] of](P_2x4B_115_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_115_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_115_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 135 | 95 | 105 | 115 | 95 | 0 | 95 |
| Vsf | 135 | 135 | 140 | 140 | 140 | 150 | 0 | 140 |
| VoffsetOp | 65 | 50 | 110 | 85 | 90 | 230 | 0 | 85 |
| VIbias_PH | 100 | 100 | 100 | 100 | 105 | 100 | 0 | 95 |

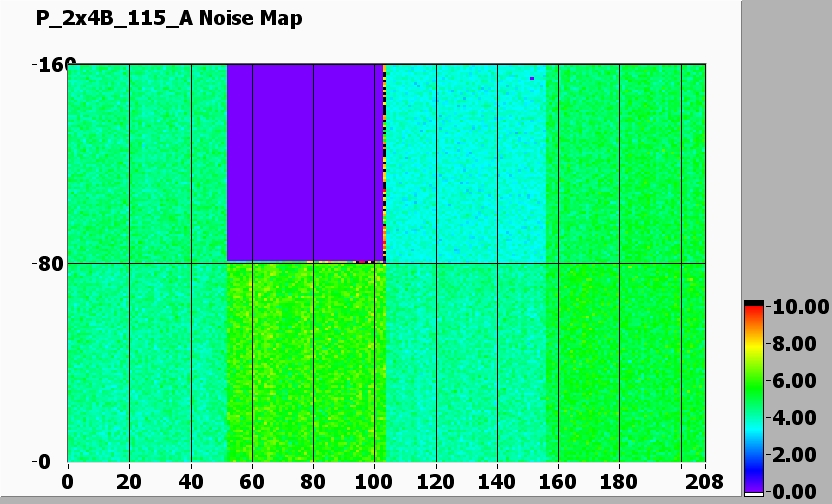

Noise MAP
![[IMAGE] of](P_2x4B_115_A-580-noise.jpg)

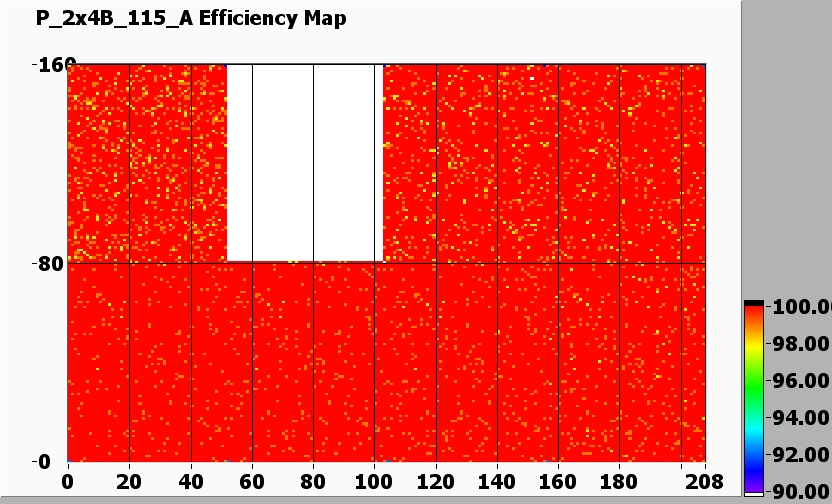

Efficiency MAP
![[IMAGE] of](P_2x4B_115_A-580-efficiency.jpg)
The noise analysis code does NOT deal well with the channels on the last row of ROC6 that cannot be killed. As a consequence the maps look empty in that ROC. I am curious to see what FNAL come up with for this ROC.
PLAQUETTE READY TO BE SHIPPED
