P_2x4B_111

P_2x4B_111_C

Parts committed by Bolla Gino on date 4/17/2007

Part	ID
BBM	BBM_111-2x4B
VHDI	2x4_560

ROC ROC wafer Label

ROC0 DWLQFTT 52B

ROC1 DWLQFTT 61B

ROC2 DWLQFTT 52A

ROC3 DWLQFTT 51A

ROC4 DWLQFTT 53B

ROC5 DWLQFTT 62B

ROC6 DWLQFTT 62A

ROC7 DWLQFTT 55D

ROC	ROC wafer	Label
ROC0	DWLQFTT	52B
ROC1	DWLQFTT	61B
ROC2	DWLQFTT	52A
ROC3	DWLQFTT	51A
ROC4	DWLQFTT	53B
ROC5	DWLQFTT	62B
ROC6	DWLQFTT	62A
ROC7	DWLQFTT	55D

Inspected by Lockwood Gale on date 4/18/2007

LR_dev 0.027

LL_dev 0.048

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problem. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/18/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/19/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/19/2007 by Ozhan Koybasi

P_2x4B_111_Con 4/20/2007 9:34 AM

PLAQUETTE TESTED on 2007-04-20 by Gino Bolla

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	144	136	148	144	122	122	136	144
Vana	135	144	149	150	137	127	138	151
Cal_Del	88	96	72	85	101	87	81	76
Vthrs_Comp	82	84	91	83	74	83	85	87
Unbumped	0	0	0	1	0	0	0	1
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	1	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	120	90	100	95	85	130	95	100
Vsf	140	145	150	150	140	140	140	150
VoffsetOp	90	115	120	105	80	110	90	100
VIbias_PH	105	100	100	100	95	100	100	105

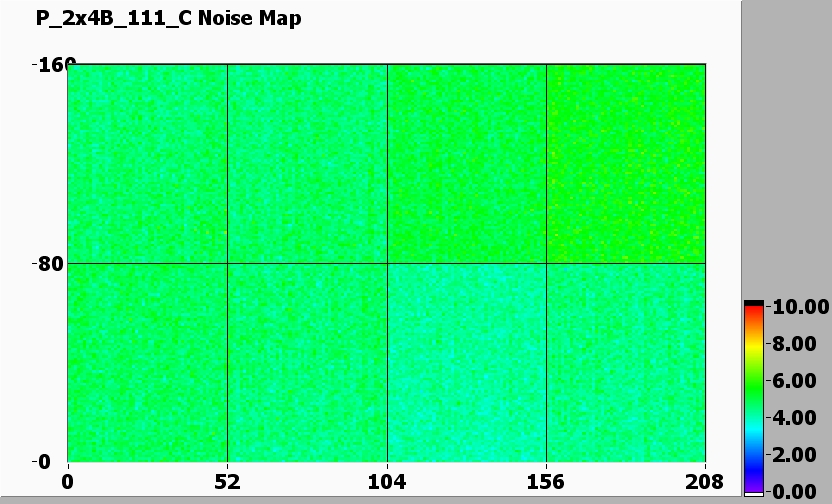

Noise MAP

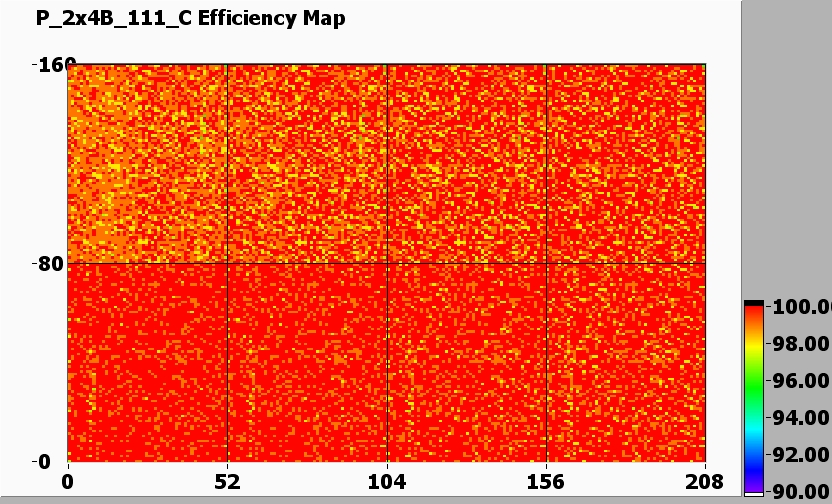

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-23

Plaquette assigned to panel P3L_033
