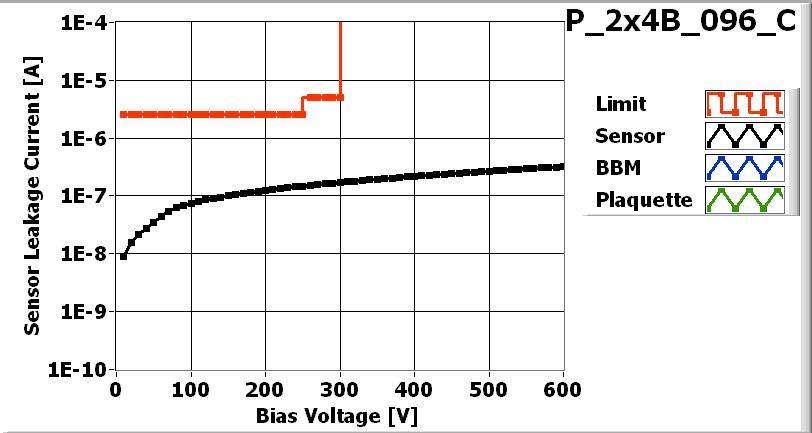

![[IMAGE] of](P_2x4B_096_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

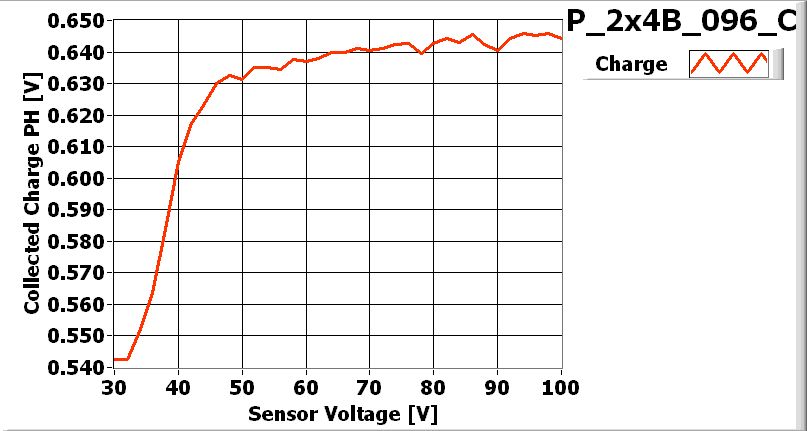

![[IMAGE] of](P_2x4B_096_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_096-2x4B |
| VHDI | 2x4_541 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 75C |
| ROC1 | XK4K3ET | 76C |
| ROC2 | XK4K3ET | 76D |
| ROC3 | XK4K3ET | 67A |
| ROC4 | XK4K3ET | 63A |
| ROC5 | XK4K3ET | 64B |
| ROC6 | XK4K3ET | 65B |
| ROC7 | XK4K3ET | 66A |
Inspected by Arndt Kirk on date 2006-08-21
| LR_dev | 0.047 |
| LL_dev | 0.035 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-21 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-22 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 168 | 147 | 165 | 159 | 148 | 160 | 147 | 141 | |
| Vana | 139 | 125 | 135 | 144 | 127 | 139 | 127 | 113 | |
| Cal_Del | 81 | 77 | 71 | 81 | 105 | 95 | 86 | 105 | |
| Vthrs_Comp | 81 | 77 | 66 | 87 | 72 | 78 | 82 | 69 | |
| Unbumped | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

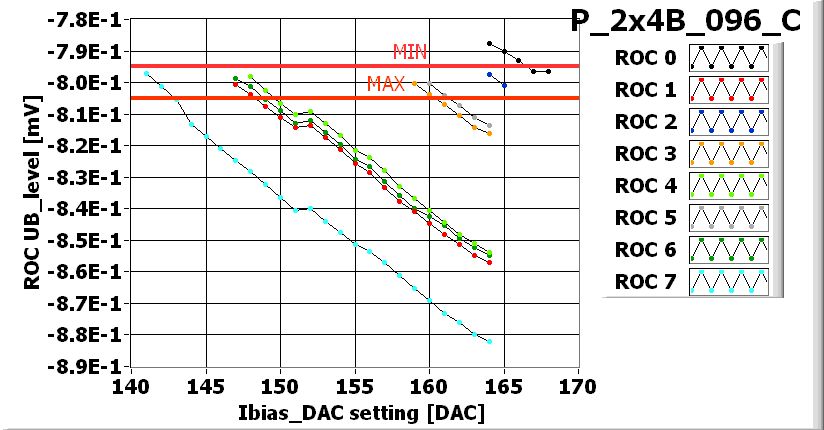

![[IMAGE] of](P_2x4B_096_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4B_096_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_096_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_096_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_096_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_096_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-23
