| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

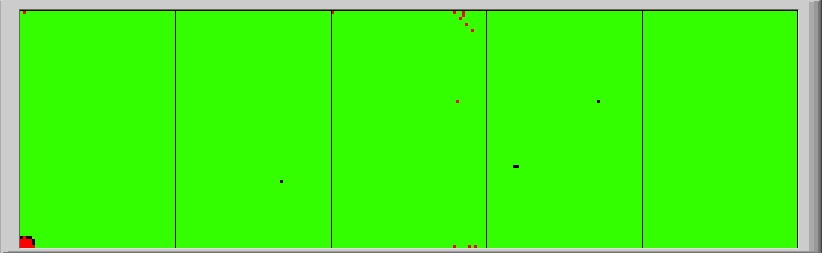

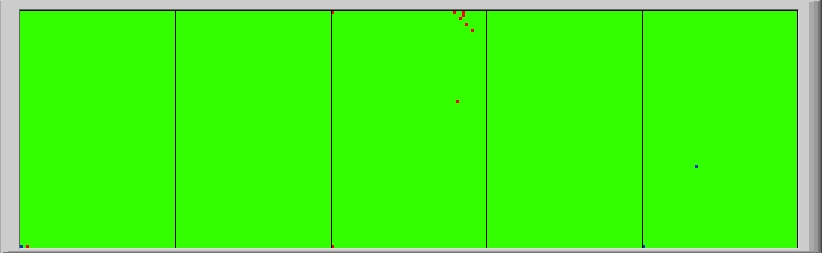

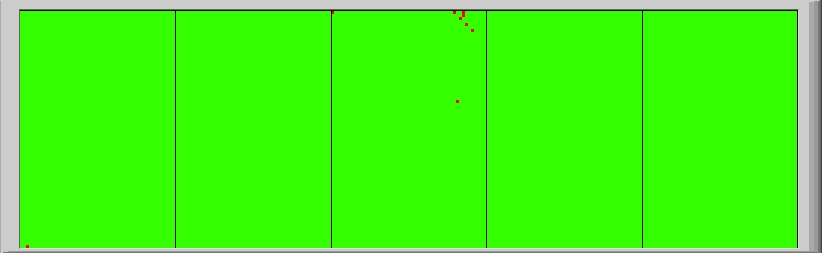

| P_1x5L_084_C | 4 | | | |

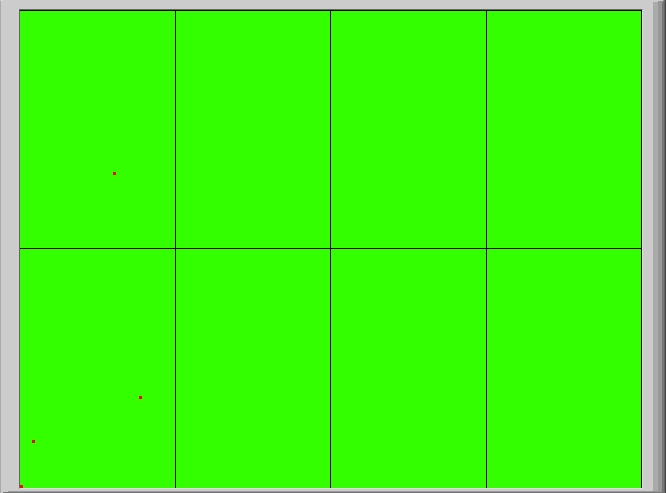

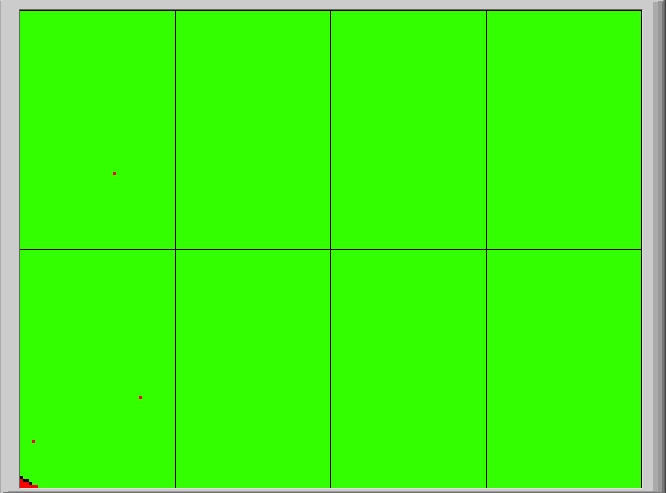

| P_2x4B_096_C | 3 | | | |

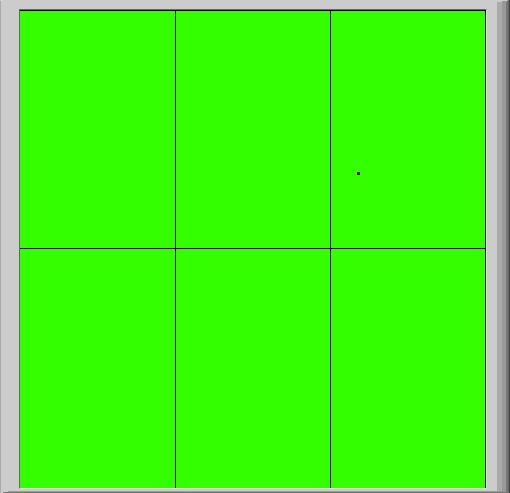

| P_2x3B_029_C | 2 | | | |

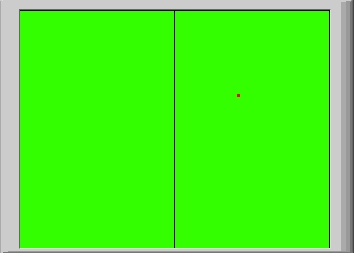

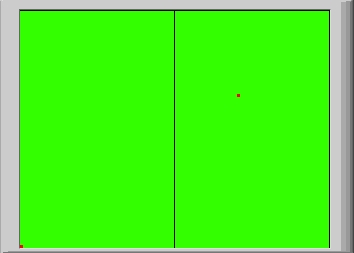

| P_1x2R_026_C | 1 | | | |
| Panel assembly comments |
|---|
| 5apr2007/ME: IV current over limit, Max voltage = 420V (not traceable to any plaquette) 24apr07/ME: Breakdown due to outer loop. Current in inner loop is still large. Upgraded to A2. |
