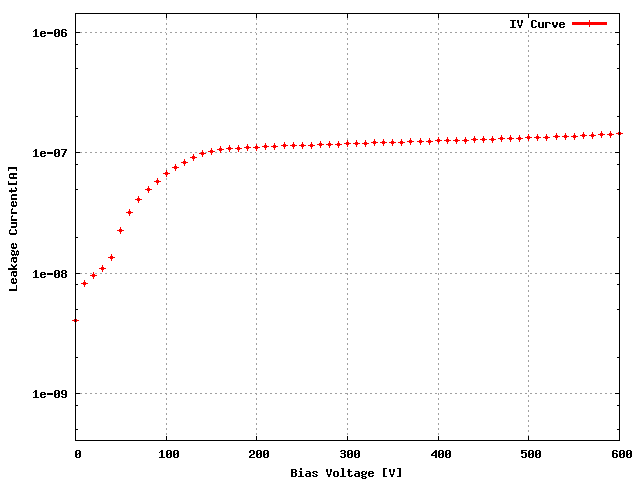

Sensor: S_2x4B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W21_XA4KFIT	66A
ROC1	W21_XA4KFIT	65D
ROC2	W21_XA4KFIT	65C
ROC3	W21_XA4KFIT	65B
ROC4	W21_XA4KFIT	43A
ROC5	W21_XA4KFIT	43B
ROC6	W21_XA4KFIT	43C
ROC7	W21_XA4KFIT	43D

Depletion Voltage is -56 and suggested operational voltage is -96

Ibias_DAC, Ibias_DAC Data	133	139	142	139	140	127	135	138
Vana, VanaData	127	113	142	120	120	128	130	126
CalDelData and plots	86	75	83	85	81	90	85	69
VthrCompData and plots	82	73	84	86	67	61	82	89
TestDdata ,TestD Plots	0	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Comment (if any): Everything turned out fine.

P_2x4B_088_A.html,

End testing time: 4:42 PM
