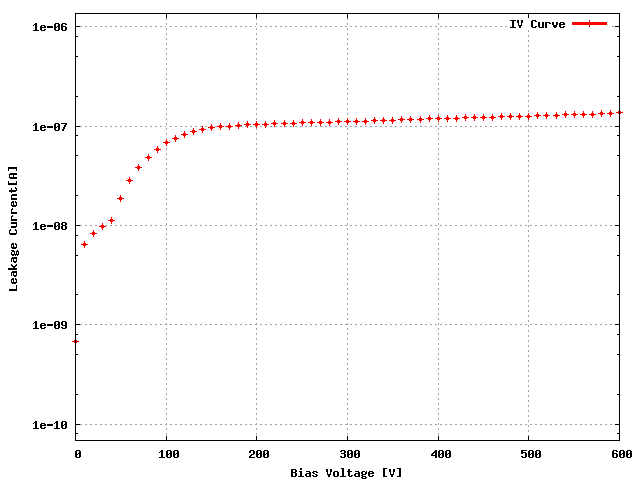

Sensor: S_2x4B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 66A |
| ROC1 | W21_XA4KFIT | 65D |
| ROC2 | W21_XA4KFIT | 65C |
| ROC3 | W21_XA4KFIT | 65B |
| ROC4 | W21_XA4KFIT | 43A |
| ROC5 | W21_XA4KFIT | 43B |
| ROC6 | W21_XA4KFIT | 43C |
| ROC7 | W21_XA4KFIT | 43D |
| Ibias_DAC, Ibias_DAC Data | 133 | 139 | 142 | 138 | 140 | 127 | 135 | 138 |
| Vana, VanaData | 127 | 114 | 142 | 120 | 121 | 128 | 130 | 126 |
| CalDelData and plots | 86 | 75 | 83 | 85 | 81 | 90 | 85 | 69 |
| VthrCompData and plots | 82 | 73 | 84 | 86 | 68 | 61 | 82 | 89 | Depletion Voltage is -58 and suggested operational voltage is -98
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 332 | 52 | 0 | 0 | 0 | 292 | 1864 | 1292 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | BAD | GOOD | GOOD | GOOD | BAD | BAD | BAD |
Comment (if any): Light test says it's bad. Retesting with light closer.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:14 PM
