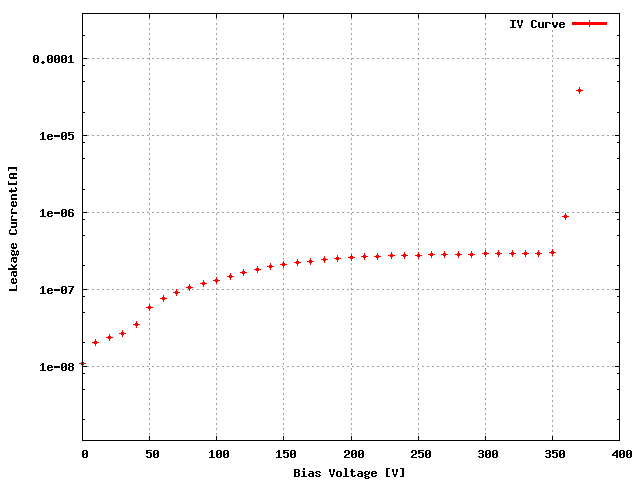

Sensor: S_2x4B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W13_XX4JPAT	17A
ROC1	W13_XX4JPAT	16D
ROC2	W13_XX4JPAT	16A
ROC3	W13_XX4JPAT	15D
ROC4	W13_XX4JPAT	18C
ROC5	W13_XX4JPAT	18D
ROC6	W13_XX4JPAT	03A
ROC7	W13_XX4JPAT	03B

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	141	115	136	128	137	124	140	131
Vana, VanaData	125	124	127	135	133	121	140	116
CalDelData and plots	81	98	68	84	85	79	81	72
VthrCompData and plots	83	65	85	69	80	66	78	70
TestDdata ,TestD Plots	0	0	858	0	0	3	0	1
LightData ,Light Plots	0	0	1043	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD

Comment (if any): pretty much the same as previous test.

P_2x4B_079_A.html,

End testing time: 10:28 AM
