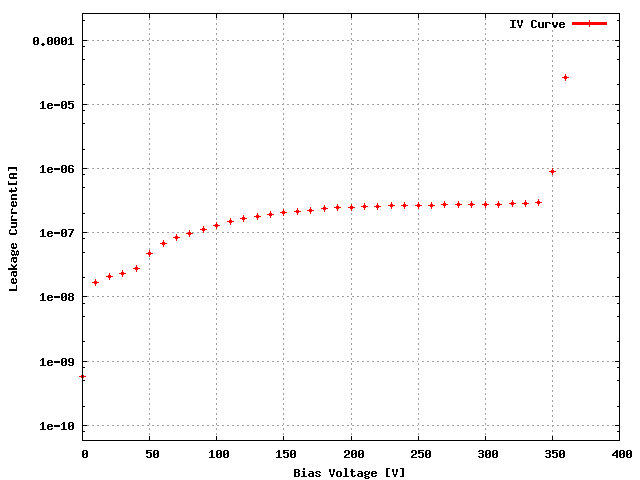

Sensor: S_2x4B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W13_XX4JPAT | 17A |
| ROC1 | W13_XX4JPAT | 16D |
| ROC2 | W13_XX4JPAT | 16A |
| ROC3 | W13_XX4JPAT | 15D |
| ROC4 | W13_XX4JPAT | 18C |
| ROC5 | W13_XX4JPAT | 18D |
| ROC6 | W13_XX4JPAT | 03A |
| ROC7 | W13_XX4JPAT | 03B |
| Ibias_DAC, Ibias_DAC Data | 140 | 114 | 135 | 127 | 137 | 123 | 140 | 131 |
| Vana, VanaData | 125 | 124 | 127 | 135 | 134 | 121 | 141 | 116 |
| CalDelData and plots | 81 | 98 | 68 | 84 | 85 | 79 | 81 | 72 |
| VthrCompData and plots | 83 | 65 | 85 | 69 | 80 | 66 | 79 | 70 | Depletion Voltage is -52 and suggested operational voltage is -92
| TestDdata ,TestD Plots | 19 | 13 | 854 | 7 | 23 | 92 | 38 | 152 |
| LightData ,Light Plots | 0 | 0 | 1042 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD | BAD | GOOD | BAD |
| Pass/Fail LIGHT | GOOD | GOOD | BAD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): 1/4 of ROC2 is reported as bad bumps. CalDel for ROC2 looks lowish (68)... Will re-test.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:06 AM
