P_2x4B_062

P_2x4B_062_C

Parts committed by Bolla Gino on date 8/20/2007

Part	ID
BBM	BBM_062-2x4B
VHDI	2x4_612

ROC ROC wafer Label

ROC0 XH4KFBT 25B

ROC1 KFNG13T 43D

ROC2 XH4KFBT 15A

ROC3 XH4KFBT 16D

ROC4 XH4KFBT 28D

ROC5 XH4KFBT 11A

ROC6 XH4KFBT 28C

ROC7 XH4KFBT 15B

ROC	ROC wafer	Label
ROC0	XH4KFBT	25B
ROC1	KFNG13T	43D
ROC2	XH4KFBT	15A
ROC3	XH4KFBT	16D
ROC4	XH4KFBT	28D
ROC5	XH4KFBT	11A
ROC6	XH4KFBT	28C
ROC7	XH4KFBT	15B

This plaquette was reworked. Old results here

Inspected by Lockwood Gale on date 8/21/2007

LR_dev 0.054

LL_dev 0.005

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale

PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi

P_2x4B_062_Con 8/22/2007 2:59 PM

PLAQUETTE TESTED on 2007-08-22 by Emily Grace

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 42 V

Operational Voltage 82 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	134	166	178	150	156	158	154	154
Vana	125	151	146	115	130	128	134	128
Cal_Del	80	59	83	89	83	90	91	74
Vthrs_Comp	83	91	83	74	73	78	64	82
Unbumped	1	0	0	0	3	0	0	1
Dead	0	0	0	0	0	0	2	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	1	0	0	0	3	0	2	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

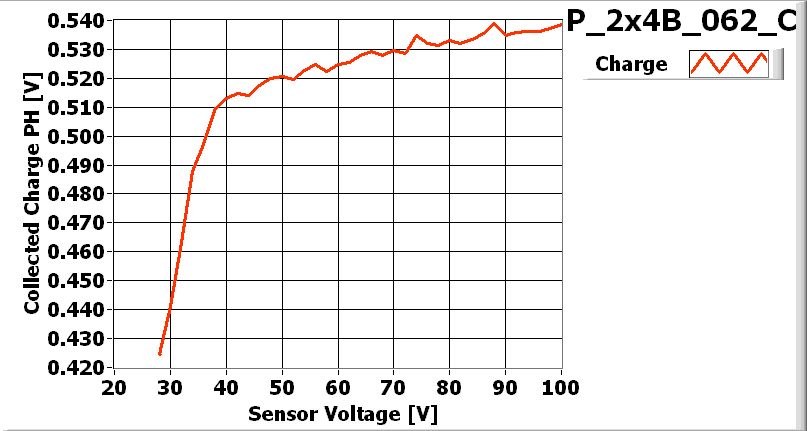

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	140	100	90	150	135	150	100	125
Vsf	140	155	150	140	135	140	135	135
VoffsetOp	70	90	105	65	85	65	80	80
VIbias_PH	95	105	100	105	100	95	105	95

Noise MAP at VMAX

Efficiency MAP

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-08-27
