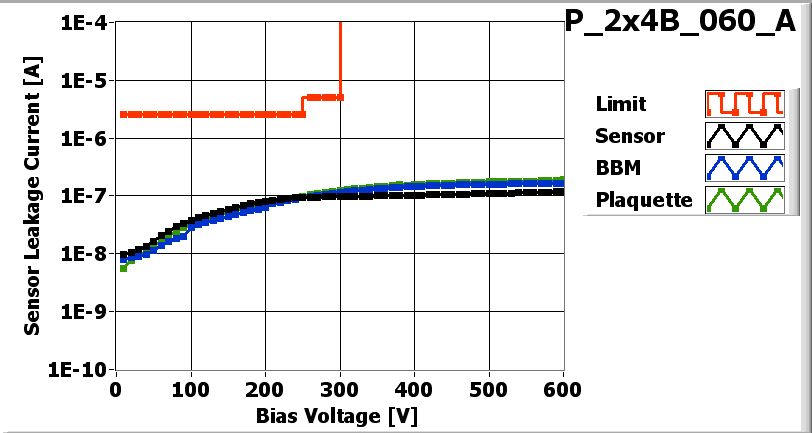

![[IMAGE] of](P_2x4B_060_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

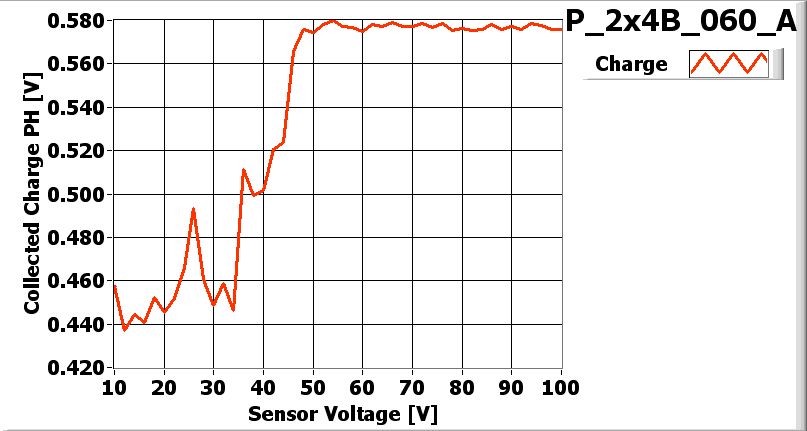

![[IMAGE] of](P_2x4B_060_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_060-2x4B |
| VHDI | 2x4_642 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 48B |
| ROC1 | W46_D3LQC5T | 48A |
| ROC2 | W46_D3LQC5T | 47D |
| ROC3 | W46_D3LQC5T | 47B |
| ROC4 | W46_D3LQC5T | 32D |
| ROC5 | W46_D3LQC5T | 33A |
| ROC6 | W46_D3LQC5T | 33C |
| ROC7 | W46_D3LQC5T | 33D |
Inspected by Lockwood Gale on date 5/29/2007
| LR_dev | 0.046 |
| LL_dev | 0.048 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/29/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/29/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/29/2007 by Perera Rajiv
P_2x4B_060_Aon 5/30/2007 10:30 AM
P_2x4B_060_Aon 5/30/2007 10:30 AM
PLAQUETTE TESTED on 2007-05-30 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 158 | 150 | 160 | 154 | 156 | 152 | 166 | 154 | |
| Vana | 155 | 144 | 150 | 153 | 157 | 135 | 155 | 145 | |
| Cal_Del | 71 | 84 | 93 | 78 | 74 | 86 | 92 | 90 | |
| Vthrs_Comp | 92 | 89 | 88 | 91 | 93 | 74 | 90 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

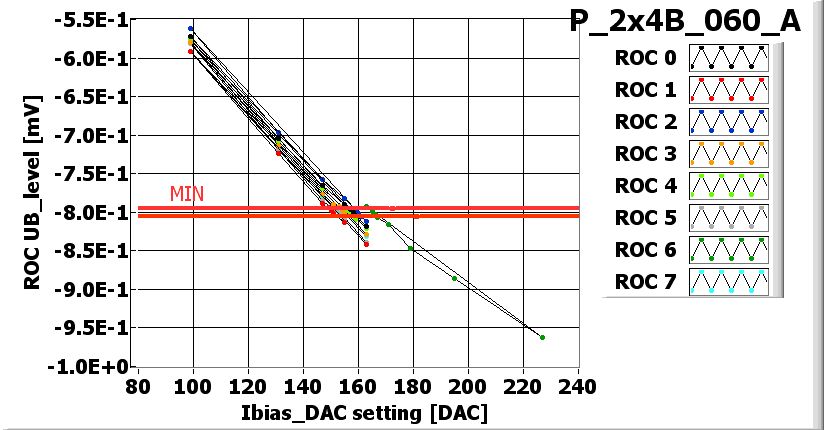

![[IMAGE] of](P_2x4B_060_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

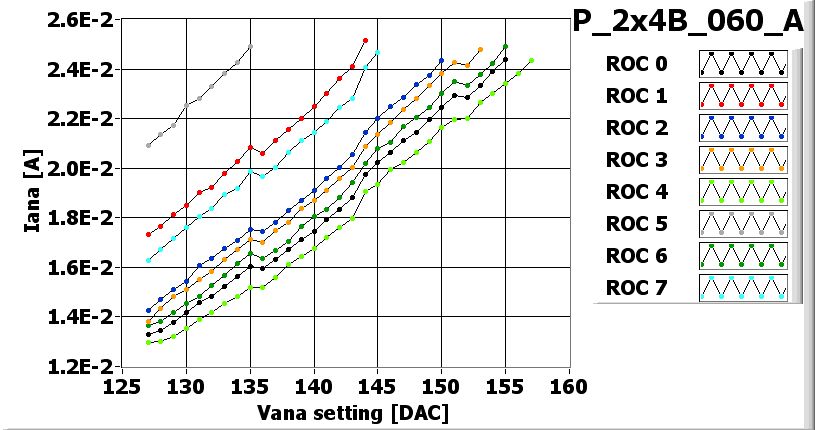

![[IMAGE] of](P_2x4B_060_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_060_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_060_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_060_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_060_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 105 | 95 | 100 | 95 | 105 | 90 | 90 |
| Vsf | 155 | 145 | 150 | 150 | 165 | 140 | 155 | 145 |
| VoffsetOp | 110 | 95 | 95 | 105 | 125 | 75 | 95 | 115 |
| VIbias_PH | 95 | 95 | 95 | 105 | 100 | 95 | 100 | 105 |

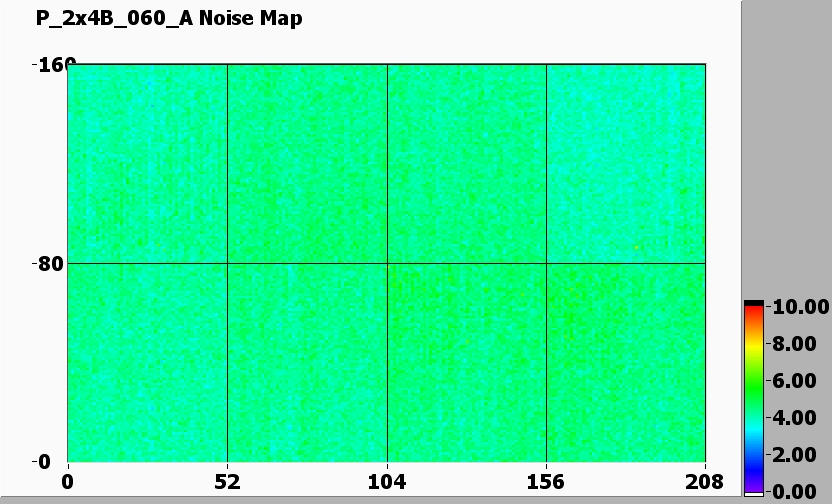

Noise MAP at VMAX
![[IMAGE] of](P_2x4B_060_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_060_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x4B_060_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_060_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
