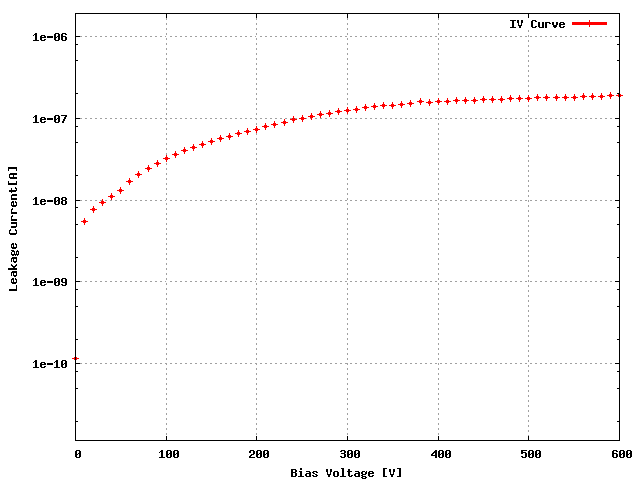

Sensor: S_2x4B_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W46_D3LQC5T | 48B |
ROC1 | W46_D3LQC5T | 48A |
ROC2 | W46_D3LQC5T | 47D |
ROC3 | W46_D3LQC5T | 47B |
ROC4 | W46_D3LQC5T | 32D |
ROC5 | W46_D3LQC5T | 33A |
ROC6 | W46_D3LQC5T | 33C |
ROC7 | W46_D3LQC5T | 33D |
Ibias_DAC, Ibias_DAC Data | 158 | 150 | 160 | 154 | 156 | 152 | 166 | 154 |
Vana, VanaData | 155 | 144 | 150 | 153 | 157 | 135 | 155 | 145 |
CalDelData and plots | 71 | 84 | 93 | 78 | 74 | 86 | 92 | 90 |
VthrCompData and plots | 92 | 89 | 88 | 91 | 93 | 74 | 90 | 84 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

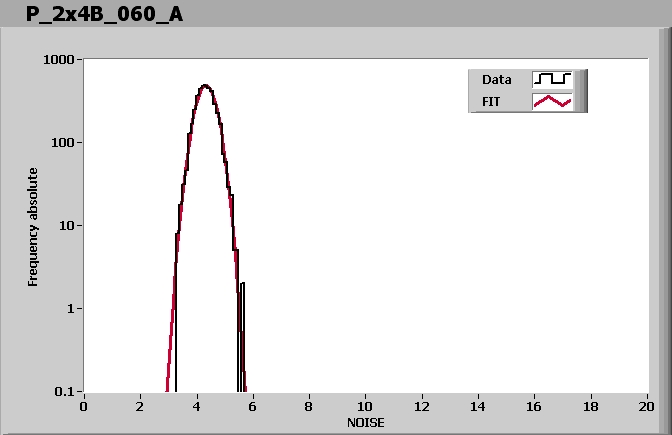

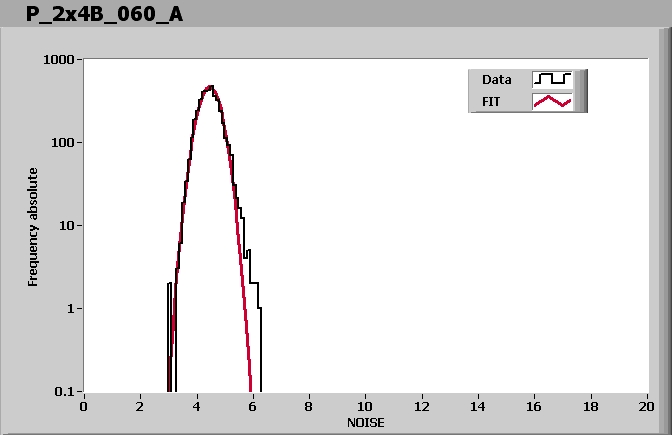

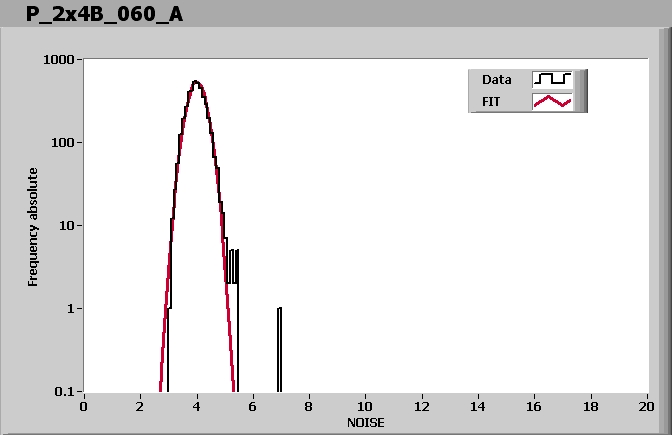

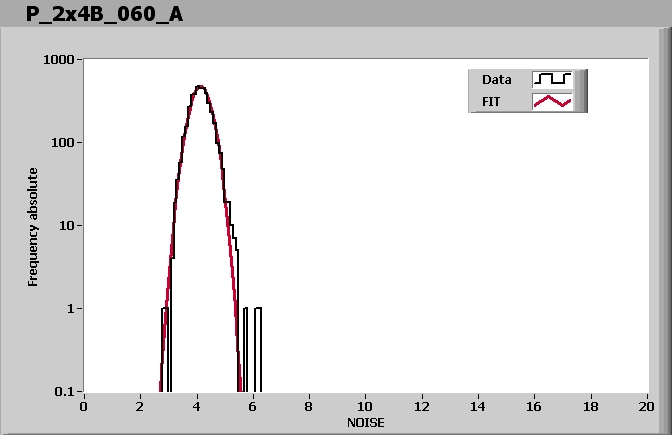

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 105 | 105 | 95 | 100 | 95 | 105 | 90 | 90 |
Vsf | 155 | 145 | 150 | 150 | 165 | 140 | 155 | 145 |
VoffsetOp | 110 | 95 | 95 | 105 | 125 | 75 | 95 | 115 |
VIbias_PH | 95 | 95 | 95 | 105 | 100 | 95 | 100 | 105 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:57 AM
