P_2x4B_052_C

Parts committed by Bolla Gino on date 5/29/2007

PartID
BBMBBM_052-2x4B
VHDI2x4_708

ROCROC waferLabel
ROC0KZNG1JT74C
ROC1KZNG1JT13C
ROC2KZNG1JT03B
ROC3KZNG1JT52C
ROC4KZNG1JT42A
ROC5KZNG1JT42B
ROC6KZNG1JT62A
ROC7KZNG1JT03D

Inspected by Lockwood Gale on date 6/1/2007
LR_dev0.025
LL_dev0.076

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood GaleAssembled at HALF-PRESSURE. No assembly problems. ROC 3 Ch 34.35, ROC 2 CH 1, ROC 7 Ch 34.35, ROC 5 Ch 35 multiple bond cycles, no other wirebodning problems.

PLAQUETTE made READY for ENCAPSULATION on 6/1/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/1/2007 by Arndt Kirk

PLAQUETTE made READY for testing on 6/1/2007 by Arndt Kirk

Inspected by Arndt Kirk on date 6/1/2007
PictureComment

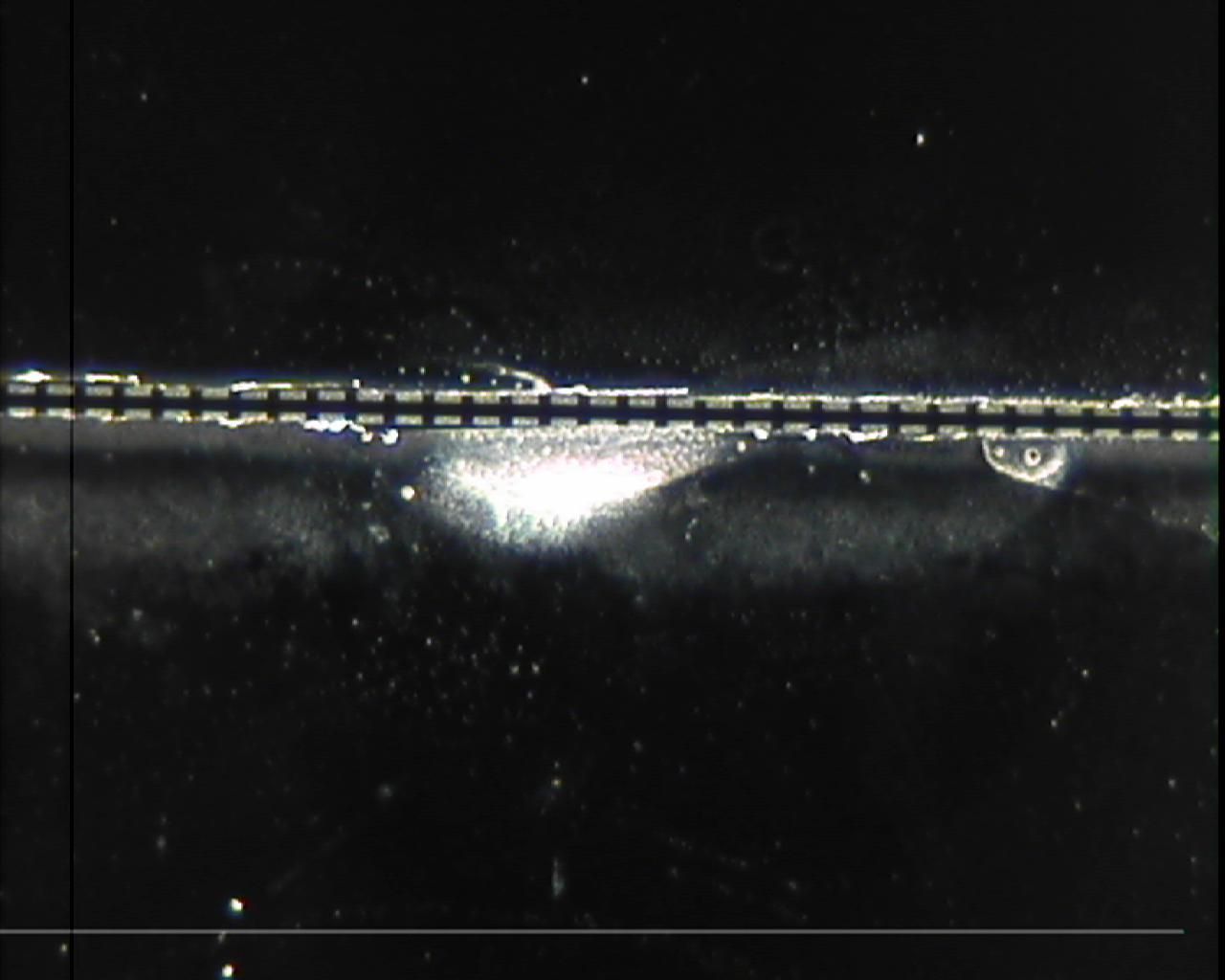

[IMAGE] of Blemish on backside of ROC5 (on edge next to ROC2) noted before plaquette assembly.

P_2x4B_052_Con 6/4/2007 11:14 AM

P_2x4B_052_Con 6/4/2007 11:14 AM

PLAQUETTE TESTED on 2007-06-04 by Emily Grace

[IMAGE] of

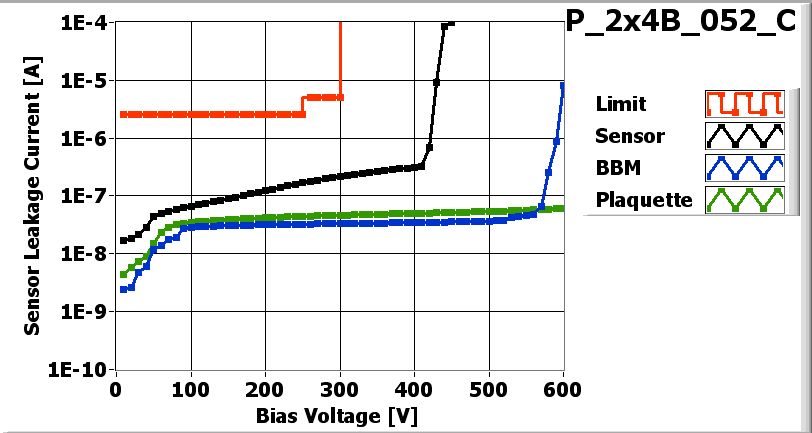

IV_XML-File
Maximum Voltage 600 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 52 V
Operational Voltage 92 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7
Ibias_DAC158172160154162150158160
Vana133139129128145132135138
Cal_Del8174817477687577
Vthrs_Comp7885767984808875
Unbumped001000054
Dead00000000
Noisy00000000
Undecoded00000000
Total BAD001000054

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

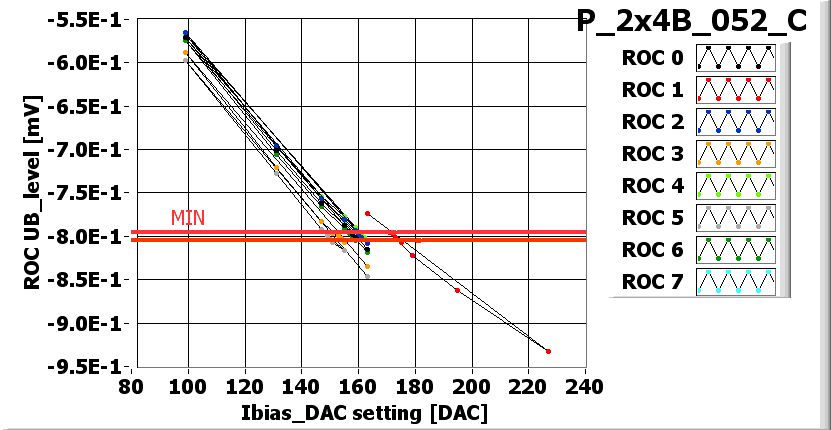

[IMAGE] of I_BIAS_DAC_XML-File

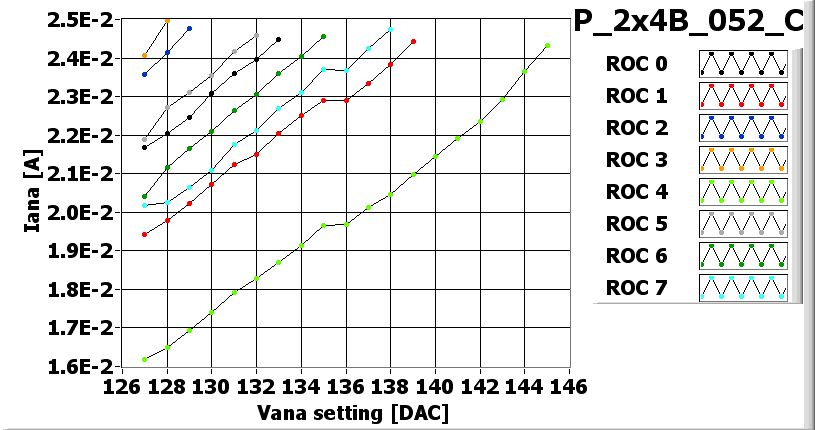

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

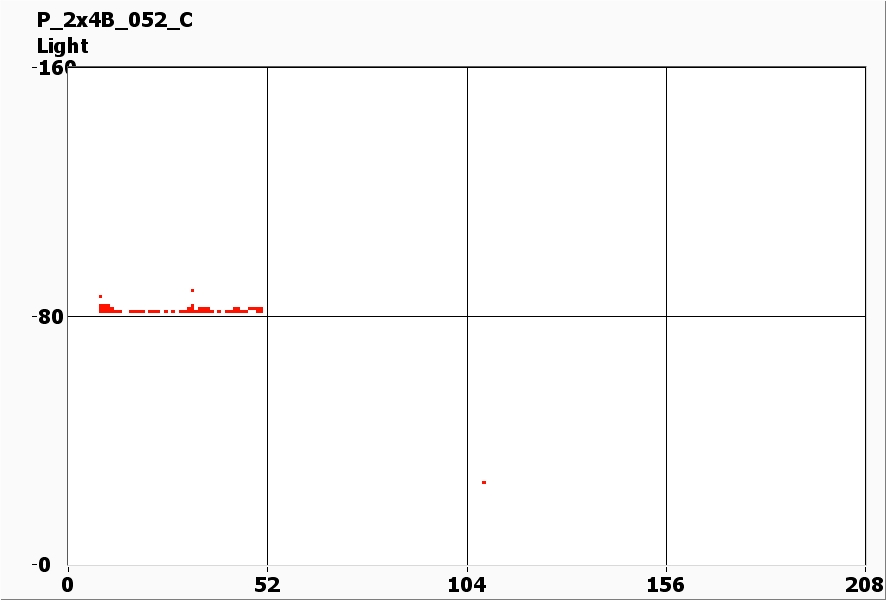

[IMAGE] of LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe1051051151259512095100
Vsf135145135140145145140140
VoffsetOp851009080105608090
VIbias_PH100100105100100105100100

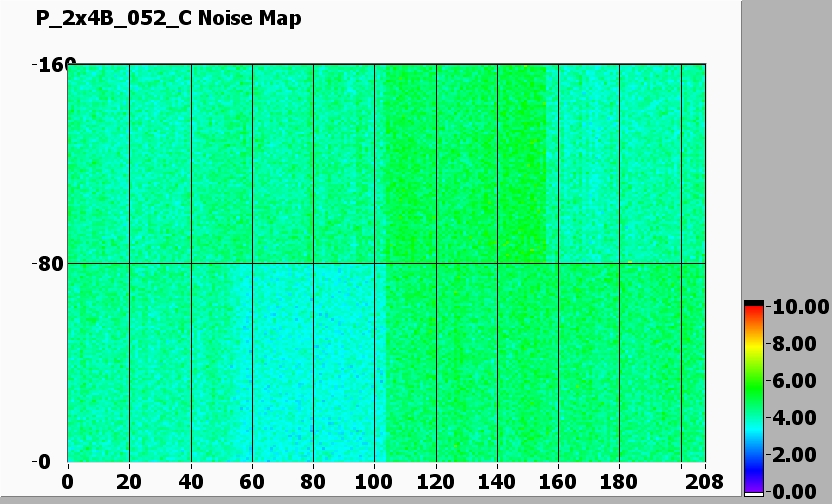

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

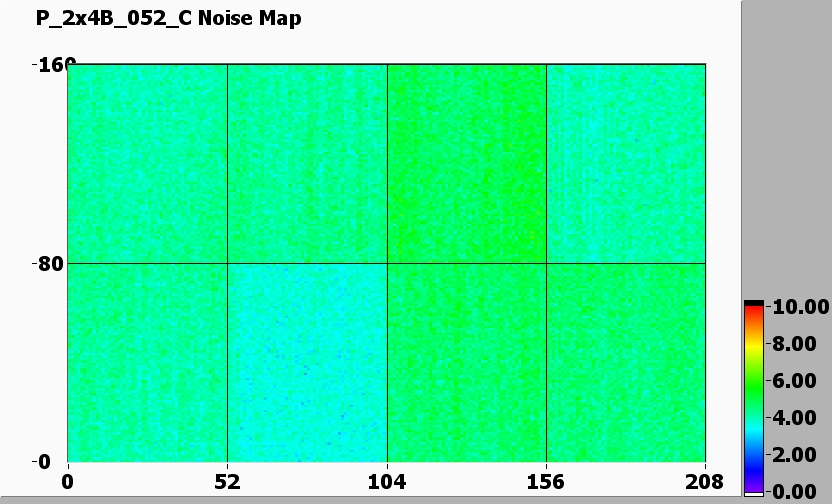

Noise MAP at -200 V

[IMAGE] of

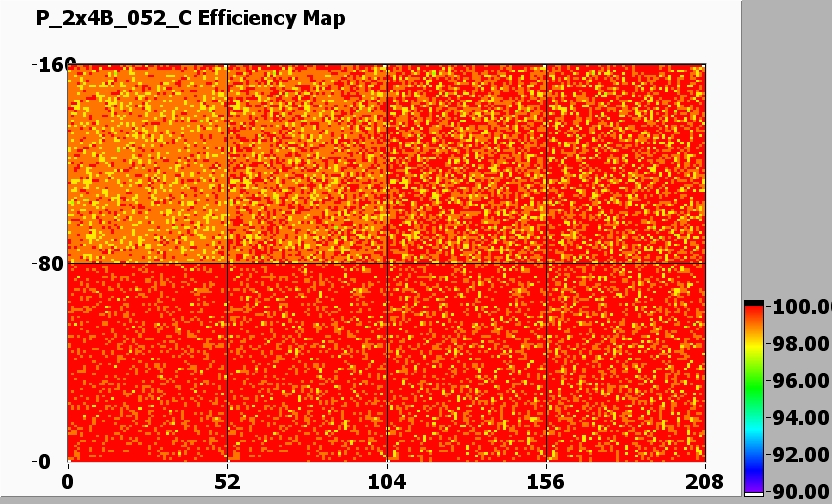

Efficiency MAP

[IMAGE] of

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-05
