Sensor: S_2x4B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KZNG1JT	74C
ROC1	KZNG1JT	13C
ROC2	KZNG1JT	03B
ROC3	KZNG1JT	52C
ROC4	KZNG1JT	42A
ROC5	KZNG1JT	42B
ROC6	KZNG1JT	62A
ROC7	KZNG1JT	03D

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	158	172	160	154	162	150	158	160
Vana, VanaData	133	139	129	128	145	132	135	138
CalDelData and plots	81	74	81	74	77	68	75	77
VthrCompData and plots	78	85	76	79	84	80	88	75
TestDdata ,TestD Plots	0	0	1	0	0	0	0	5
LightData ,Light Plots	0	0	1	0	0	0	0	54
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.117158 SIGMA = 0.328611

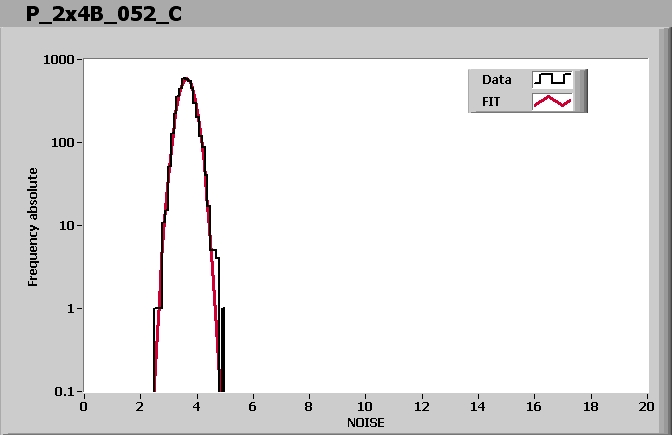

ROC1 NOISE			MEAN = 3.639188 SIGMA = 0.280883

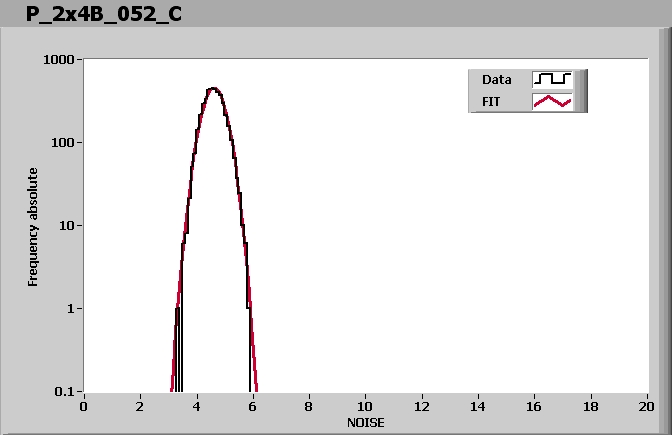

ROC2 NOISE			MEAN = 4.607082 SIGMA = 0.369329
ROC3 NOISE			MEAN = 4.517366 SIGMA = 0.346946

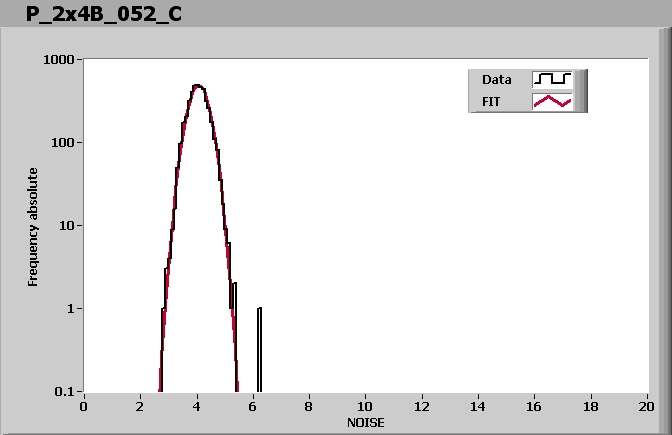

ROC4 NOISE			MEAN = 4.059802 SIGMA = 0.336969
ROC5 NOISE			MEAN = 4.814161 SIGMA = 0.416902
ROC6 NOISE			MEAN = 4.234680 SIGMA = 0.330806

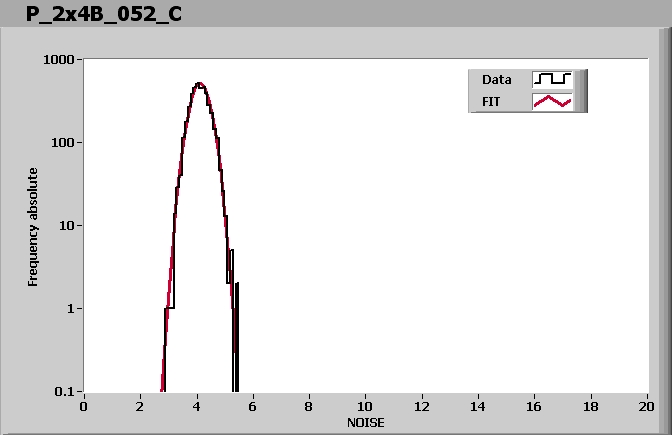

ROC7 NOISE			MEAN = 4.113098 SIGMA = 0.326723

Comment (if any):

End testing time: 11:40 AM
