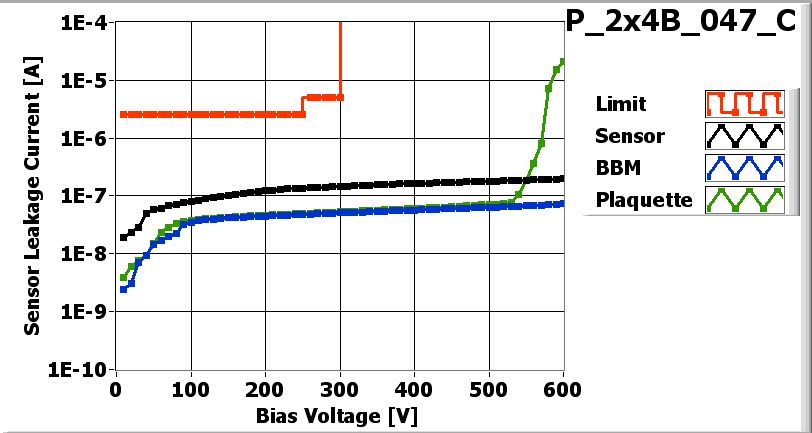

![[IMAGE] of](P_2x4B_047_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_047_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_047-2x4B |
| VHDI | 2x4_464 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 25D |
| ROC1 | XG4KFCT | 25C |
| ROC2 | XG4KFCT | 24C |
| ROC3 | XG4KFCT | 23D |
| ROC4 | XG4KFCT | 18B |
| ROC5 | XG4KFCT | 20D |
| ROC6 | XG4KFCT | 21C |
| ROC7 | XG4KFCT | 21D |
Inspected by Arndt Kirk on date 2/23/2007
| LR_dev | 0.058 |
| LL_dev | 0.066 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. All wirebonds OK. ROC2 chn 35 required 2 attempts to bond. |
PLAQUETTE made READY for ENCAPSULATION on 2/23/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/28/2007 by Ozhan Koybasi
P_2x4B_047_Con 3/1/2007 4:12 PM
P_2x4B_047_Con 3/1/2007 4:12 PM
PLAQUETTE TESTED on 2007-03-01 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 132 | 130 | 138 | 124 | 134 | 134 | 124 | 130 | |
| Vana | 118 | 127 | 116 | 107 | 140 | 126 | 118 | 116 | |
| Cal_Del | 83 | 91 | 97 | 94 | 73 | 104 | 98 | 96 | |
| Vthrs_Comp | 75 | 72 | 71 | 69 | 73 | 65 | 70 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

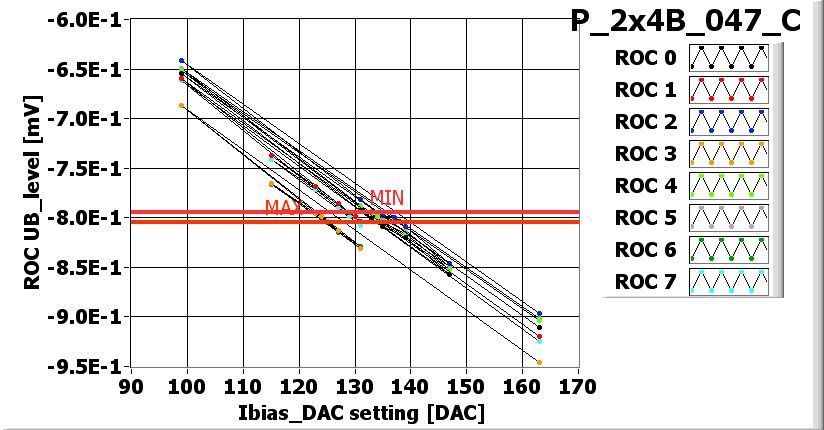

![[IMAGE] of](P_2x4B_047_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

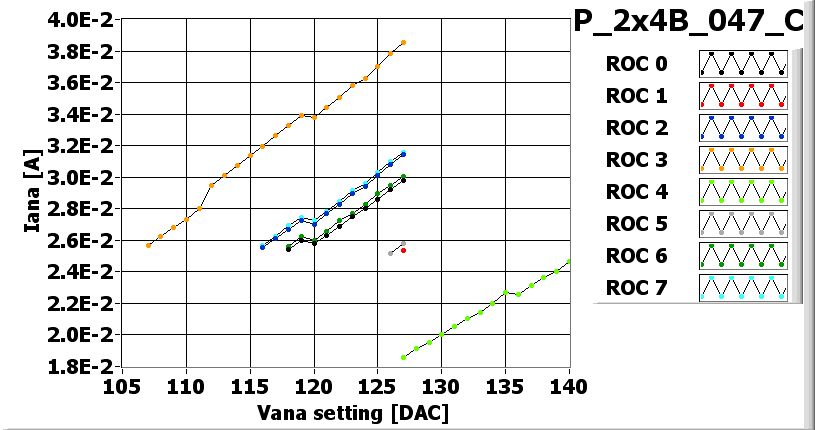

![[IMAGE] of](P_2x4B_047_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_047_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_047_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_047_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_047_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 160 | 130 | 155 | 165 | 115 | 110 | 165 | 150 |
| Vsf | 140 | 140 | 130 | 130 | 140 | 135 | 140 | 140 |
| VoffsetOp | 80 | 70 | 75 | 55 | 80 | 75 | 50 | 60 |
| VIbias_PH | 100 | 95 | 105 | 95 | 105 | 110 | 105 | 110 |

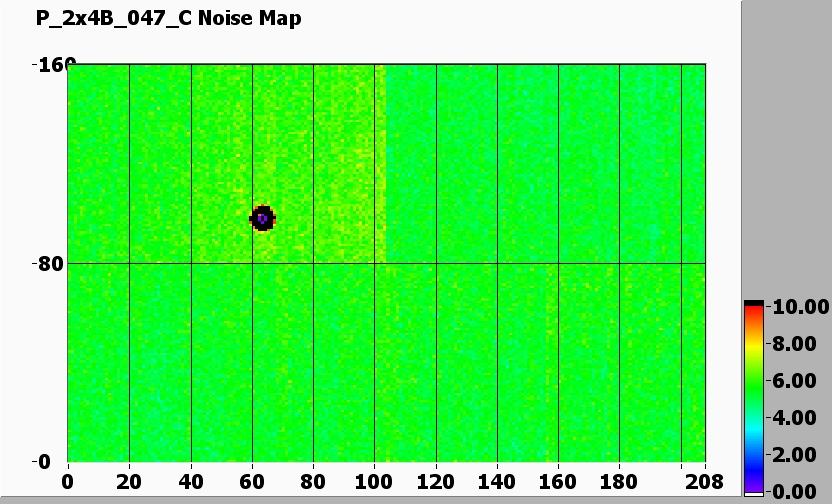

Noise MAP
![[IMAGE] of](P_2x4B_047_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_047_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
