P_2x4B_047_C

Production testing

Date:3/1/2007

Operator: Isaac Childres

start testing time:4:12 PM

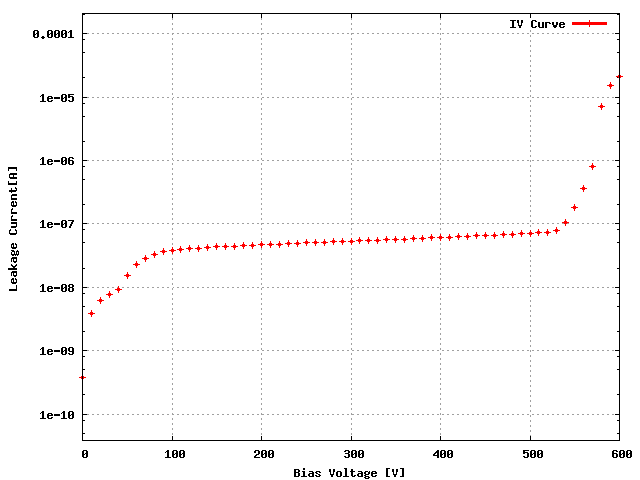

Sensor: S_2x4B_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XG4KFCT25D
ROC1XG4KFCT25C
ROC2XG4KFCT24C
ROC3XG4KFCT23D
ROC4XG4KFCT18B
ROC5XG4KFCT20D
ROC6XG4KFCT21C
ROC7XG4KFCT21D

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 132 130 138 124 134 134 124 130
Vana, VanaData 118 127 116 107 140 126 118 116
CalDelData and plots83919794731049896
VthrCompData and plots7572716973657077
TestDdata ,TestD Plots10001120
LightData ,Light Plots00000020
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

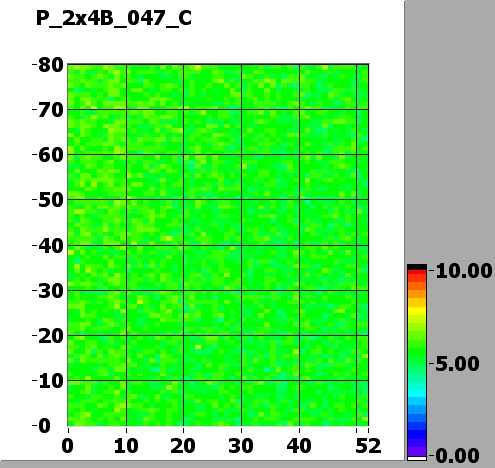

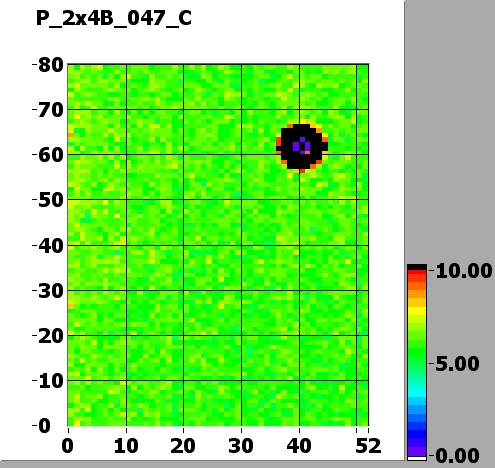

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe160130155165115110165150
Vsf140140130130140135140140
VoffsetOp8070755580755060
VIbias_PH1009510595105110105110

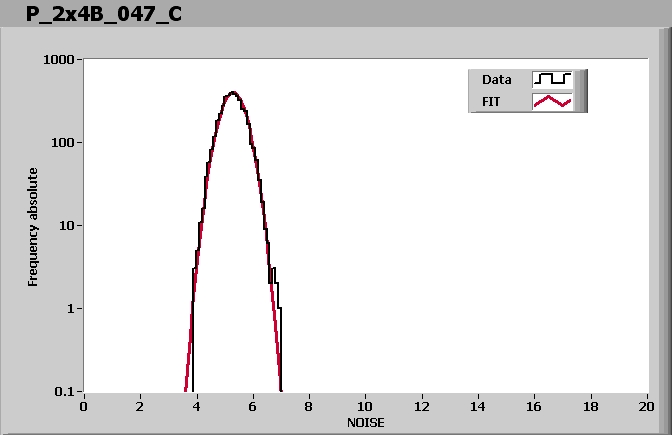

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.284850

SIGMA = 0.416093

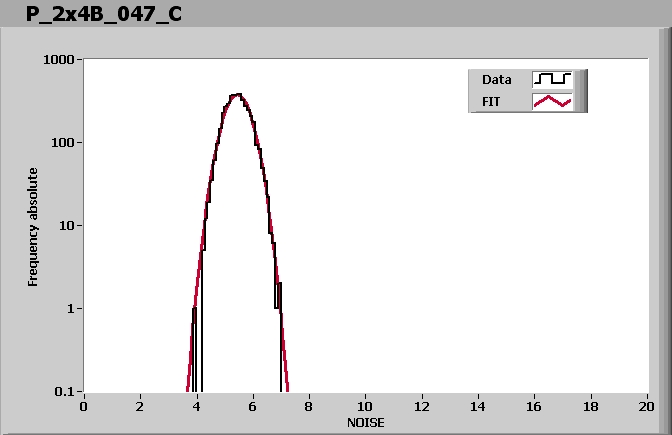

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 5.439239

SIGMA = 0.440804

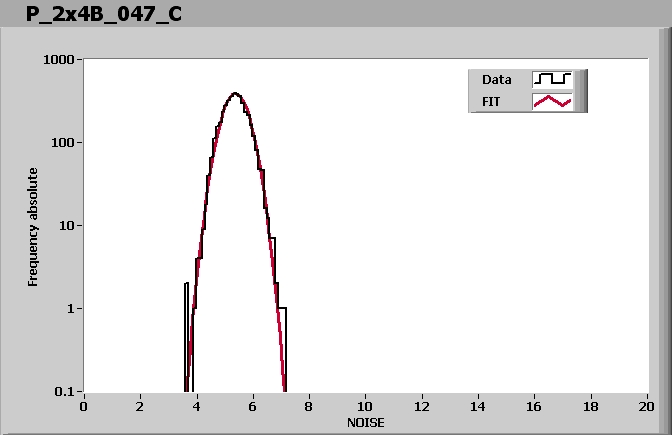

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 5.370544

SIGMA = 0.429815
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 5.441444

SIGMA = 0.435171
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.168455

SIGMA = 0.403289
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 5.229093

SIGMA = 0.412723

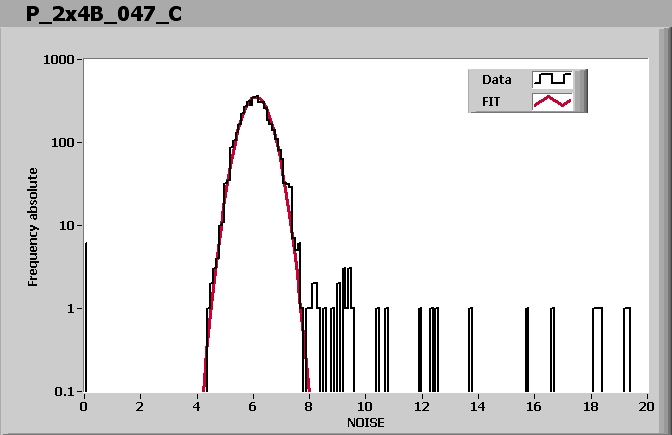

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 6.096059

SIGMA = 0.464612
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 5.630599

SIGMA = 0.459179

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:31 PM
