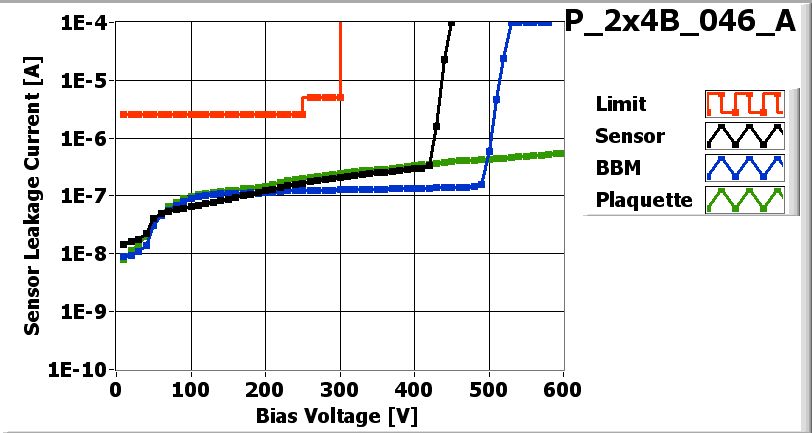

![[IMAGE] of](P_2x4B_046_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_046_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_046-2x4B |
| VHDI | 2x4_672 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQGST | 74A |
| ROC1 | W49_D1LQGST | 73D |
| ROC2 | W35_XH4K3HT | 25A |
| ROC3 | W36_XD4K3LT | 29B |
| ROC4 | W45_D3LQFLT | 73B |
| ROC5 | W45_D3LQFLT | 73D |
| ROC6 | W45_D3LQFLT | 74A |
| ROC7 | W45_D3LQFLT | 75A |
Inspected by Lockwood Gale on date 5/24/2007
| LR_dev | 0.065 |
| LL_dev | 0.033 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding rpblems. ROC 7, CH 1, ROC 2 Ch 2, ROC 2 CH 21, ROC 0 CH 1 2 attempts. |
PLAQUETTE made READY for ENCAPSULATION on 5/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/24/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/24/2007 by Perera Rajiv
P_2x4B_046_Aon 5/25/2007 10:19 AM
P_2x4B_046_Aon 5/25/2007 10:19 AM
PLAQUETTE TESTED on 2007-05-25 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 158 | 166 | 154 | 158 | 158 | 158 | 162 | 156 | |
| Vana | 154 | 144 | 124 | 143 | 149 | 156 | 145 | 143 | |
| Cal_Del | 85 | 89 | 82 | 86 | 90 | 78 | 100 | 82 | |
| Vthrs_Comp | 92 | 84 | 82 | 81 | 84 | 89 | 88 | 94 | |
| Unbumped | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 3 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 1 | 4 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

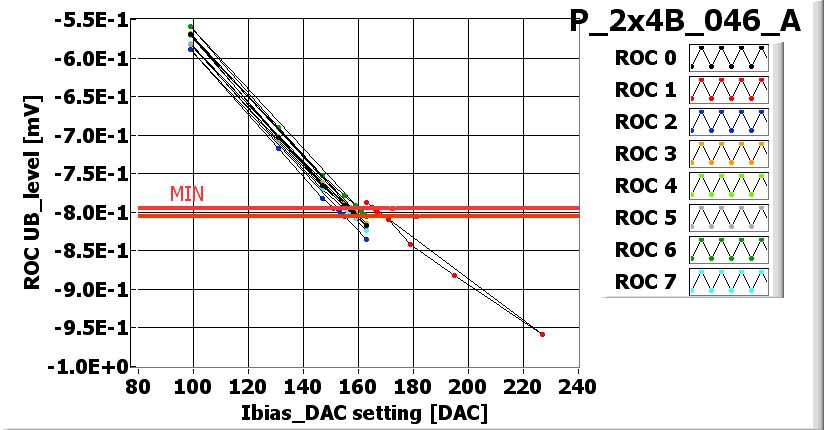

![[IMAGE] of](P_2x4B_046_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

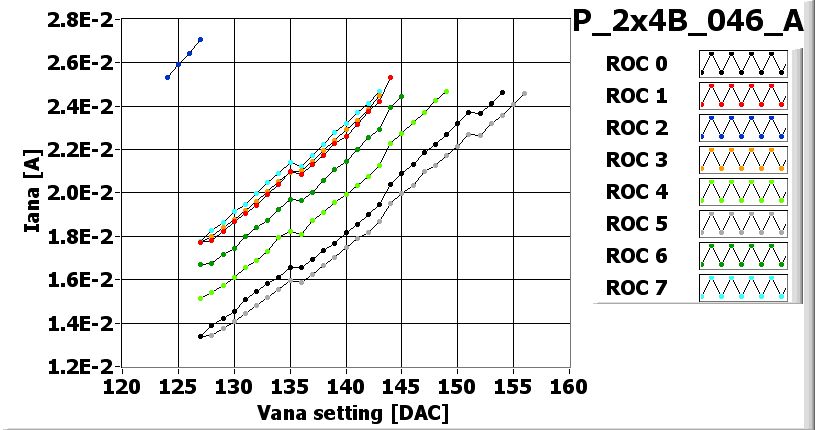

![[IMAGE] of](P_2x4B_046_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_046_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_046_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_046_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_046_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 100 | 130 | 110 | 85 | 100 | 95 | 100 |
| Vsf | 150 | 145 | 140 | 145 | 150 | 155 | 145 | 145 |
| VoffsetOp | 95 | 85 | 75 | 85 | 105 | 105 | 100 | 90 |
| VIbias_PH | 105 | 105 | 100 | 95 | 100 | 100 | 100 | 95 |

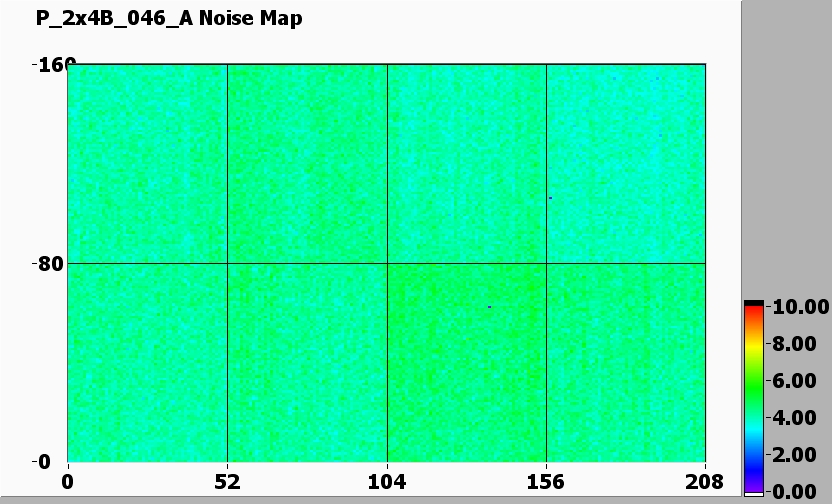

Noise MAP at VMAX
![[IMAGE] of](P_2x4B_046_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_046_A-580-efficiency.jpg)

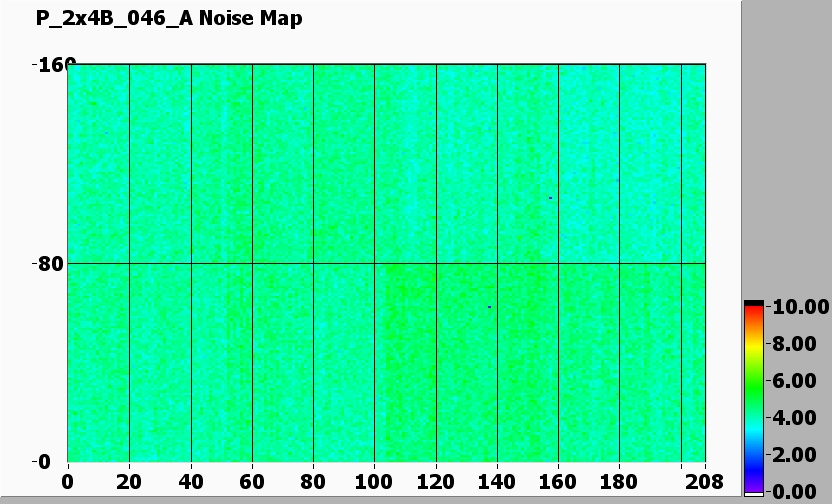

Noise MAP at -200 V
![[IMAGE] of](P_2x4B_046_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_046_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
