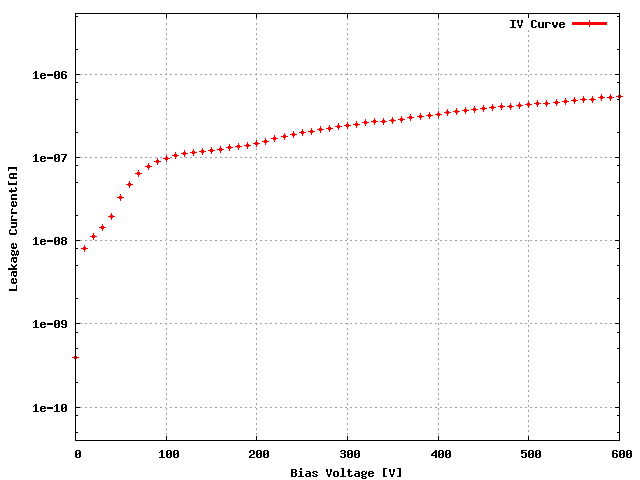

Sensor: S_2x4B_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W49_D1LQGST	74A
ROC1	W49_D1LQGST	73D
ROC2	W35_XH4K3HT	25A
ROC3	W36_XD4K3LT	29B
ROC4	W45_D3LQFLT	73B
ROC5	W45_D3LQFLT	73D
ROC6	W45_D3LQFLT	74A
ROC7	W45_D3LQFLT	75A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	158	166	154	158	158	158	162	156
Vana, VanaData	154	144	124	143	149	156	145	143
CalDelData and plots	85	89	82	86	90	78	100	82
VthrCompData and plots	92	84	82	81	84	89	88	94
TestDdata ,TestD Plots	5	0	1	4	1	0	0	0
LightData ,Light Plots	1	0	0	1	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

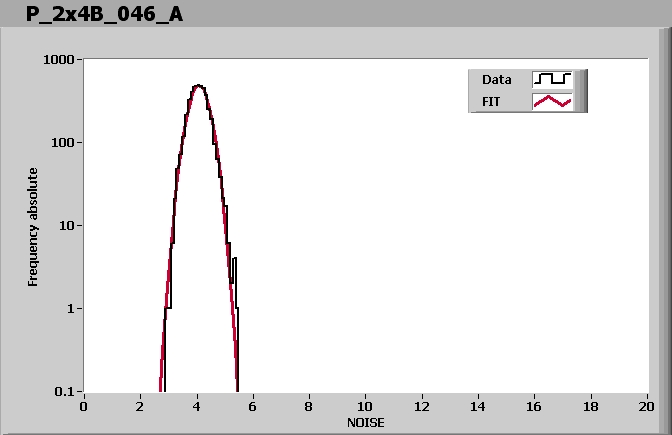

ROC0 NOISE			MEAN = 4.143870 SIGMA = 0.311376
ROC1 NOISE			MEAN = 4.206275 SIGMA = 0.341580
ROC2 NOISE			MEAN = 4.508626 SIGMA = 0.365180
ROC3 NOISE			MEAN = 4.275983 SIGMA = 0.337977
ROC4 NOISE			MEAN = 3.903173 SIGMA = 0.306217
ROC5 NOISE			MEAN = 4.073680 SIGMA = 0.335360
ROC6 NOISE			MEAN = 4.273288 SIGMA = 0.343767
ROC7 NOISE			MEAN = 4.102862 SIGMA = 0.327511

Comment (if any):

End testing time: 10:46 AM
