| IV_XML-File |

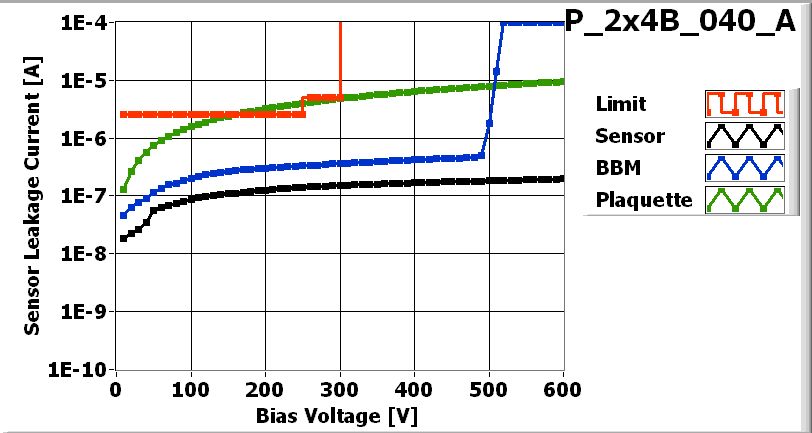

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_040_A_LASER.jpg)
| LASER_XML-File |

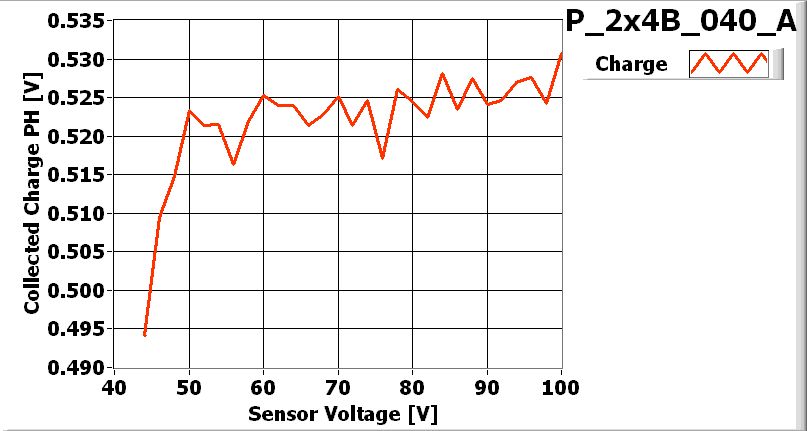

| Depletion Voltage 56 V |
| Operational Voltage 96 V |
Parts committed by Bolla Gino on date 8/9/2007
| Part | ID |
|---|---|
| BBM | BBM_040-2x4B |
| VHDI | 2x4_462 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W13_XX4JPAT | 06C |
| ROC1 | W33_XC4K5LT | 04C |
| ROC2 | W35_XH4K3HT | 58A |
| ROC3 | W35_XH4K3HT | 57D |
| ROC4 | W36_XD4K3LT | 12D |
| ROC5 | W36_XD4K3LT | 13A |
| ROC6 | W36_XD4K3LT | 13B |
| ROC7 | W36_XD4K3LT | 13C |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/15/2007
| LR_dev | 0.085 |
| LL_dev | 0.040 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | NO ASSEMBLY PROBLEMS No wirebonding problems |
PLAQUETTE made READY for ENCAPSULATION on 8/15/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/15/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/15/2007 by Ozhan Koybasi
P_2x4B_040_Aon 8/15/2007 5:02 PM
P_2x4B_040_A-1on 8/15/2007 5:13 PM
P_2x4B_040_A-1on 8/15/2007 5:13 PM
PLAQUETTE TESTED on 2007-08-15 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 146 | 160 | 172 | 146 | 160 | 158 | 152 | 146 | |
| Vana | 128 | 137 | 138 | 114 | 123 | 132 | 130 | 122 | |
| Cal_Del | 86 | 83 | 84 | 93 | 87 | 71 | 85 | 87 | |
| Vthrs_Comp | 70 | 76 | 92 | 75 | 82 | 81 | 74 | 71 | |
| Unbumped | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 10 | 0 | 1 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 3 | 0 | 10 | 0 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4B_040_A_Ibias-dac.jpg) |

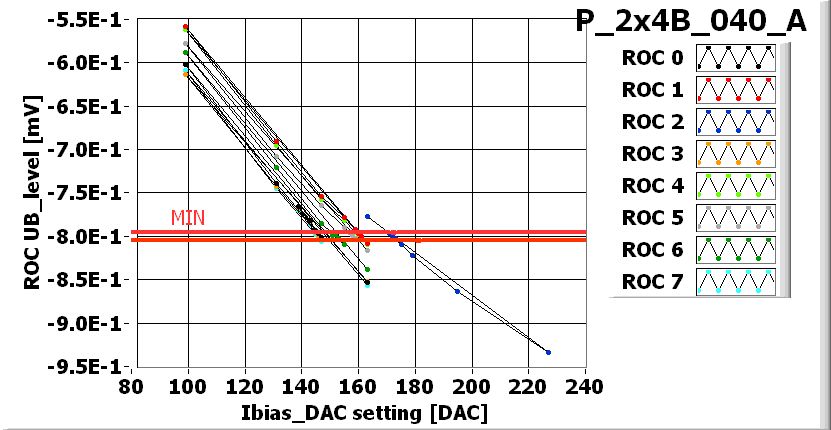

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4B_040_A_Vana.jpg) |

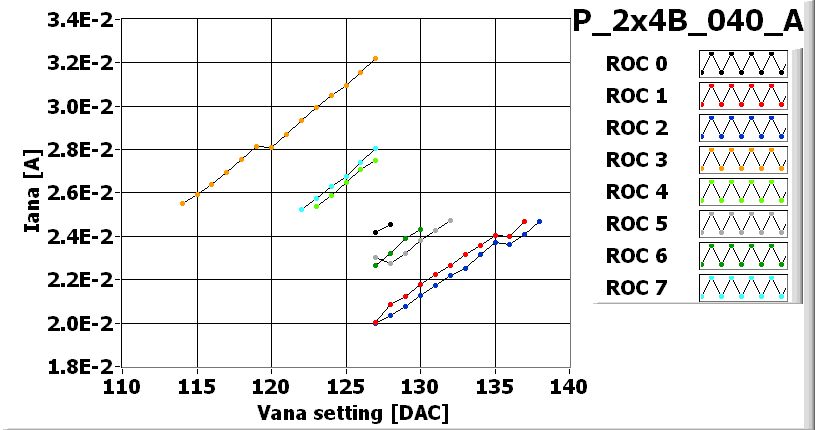

VANA_XML-File |
![[IMAGE] of](P_2x4B_040_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_040_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_040_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_040_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 100 | 130 | 125 | 130 | 90 | 100 | 140 |
| Vsf | 135 | 140 | 140 | 135 | 140 | 140 | 140 | 140 |
| VoffsetOp | 70 | 85 | 115 | 80 | 80 | 75 | 85 | 85 |
| VIbias_PH | 95 | 95 | 100 | 100 | 100 | 100 | 95 | 100 |

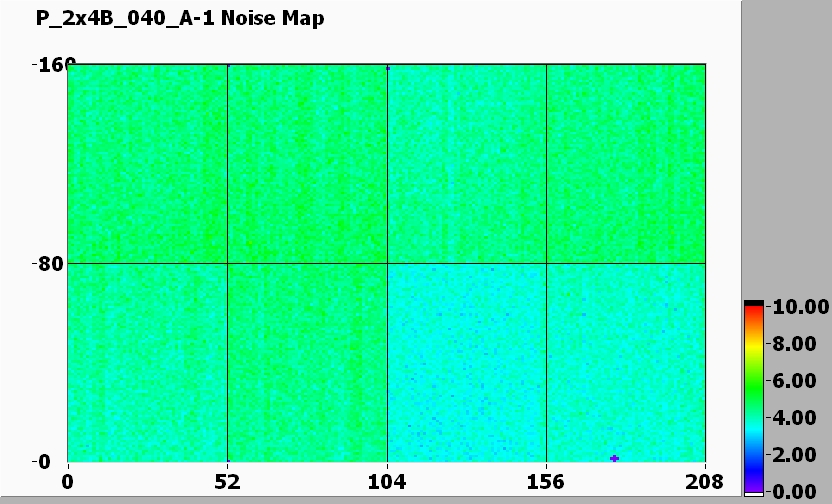

Noise MAP at VMAX
![[IMAGE] of](P_2x4B_040_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_040_A-1-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x4B_040_A-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_040_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
