P_2x4B_036

P_2x4B_036_C

Parts committed by Bolla Gino on date 1/9/2007

Part	ID
BBM	BBM_036-2x4B
VHDI	2x4_397

ROC ROC wafer Label

ROC0 XE4KFET 03D

ROC1 XE4KFET 05B

ROC2 XE4KFET 18C

ROC3 XE4KFET 15D

ROC4 XE4KFET 05A

ROC5 XE4KFET 03A

ROC6 XE4KFET 04A

ROC7 XE4KFET 05D

ROC	ROC wafer	Label
ROC0	XE4KFET	03D
ROC1	XE4KFET	05B
ROC2	XE4KFET	18C
ROC3	XE4KFET	15D
ROC4	XE4KFET	05A
ROC5	XE4KFET	03A
ROC6	XE4KFET	04A
ROC7	XE4KFET	05D

Inspected by Lockwood Gale on date 1/10/2007

LR_dev 0.077

LL_dev 0.081

FINAL COMMENT by Lockwood Gale No assembly problem. No wirebonding problems.

PLAQUETTE made READY for testing on 1/10/2007 by Lockwood Gale

P_2x4B_036_Con 1/10/2007 11:04 AM

PLAQUETTE TESTED on 2007-01-10 by Gino Bolla

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	132	134	158	124	136	140	134	134
Vana	110	122	147	127	127	132	127	127
Cal_Del	78	98	76	79	85	85	92	97
Vthrs_Comp	73	75	80	72	80	76	79	86
Unbumped	2	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	2	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

PLAQUETTE encapsulated on 1/17/2007 by Arndt Kirk

P_2x4B_036_C-1on 1/17/2007 3:55 PM

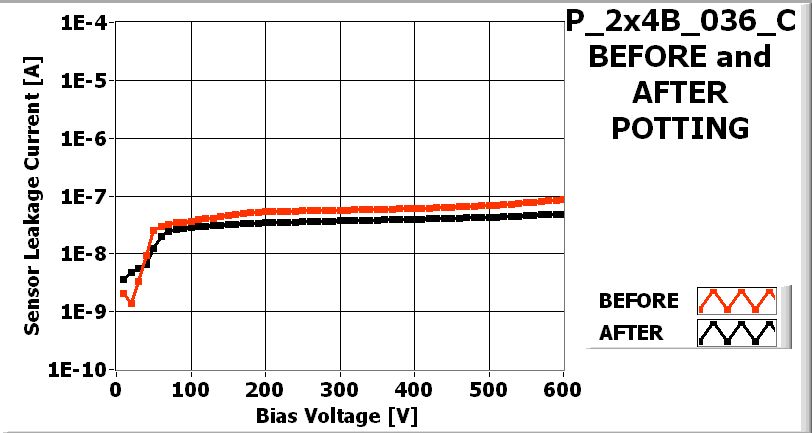

P_2x4B_036_C-1on 1/17/2007 3:55 PM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 1/1 2/2

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/0 0/0

ROC3 0/0 0/0 0/0 1/0 0/0

ROC4 0/0 0/0 0/0 1/0 0/0

ROC5 0/0 0/0 0/0 0/0 0/0

ROC6 0/0 0/0 0/0 0/0 0/0

ROC7 0/0 0/0 0/0 0/0 0/1

DEVICE READY FOR SHIPPING

Shipped on date 2007-01-22

Plaquette assigned to panel P4L_028
