![[IMAGE] of](P_2x4B_030_A-0.jpg)
Parts committed by Bolla Gino on date 4/23/2007
| Part | ID |
|---|---|
| BBM | BBM_030-2x4B |
| VHDI | 2x4_569 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 15B |
| ROC1 | W35_XH4K3HT | 15A |
| ROC2 | W35_XH4K3HT | 14D |
| ROC3 | W35_XH4K3HT | 14C |
| ROC4 | W35_XH4K3HT | 33D |
| ROC5 | W35_XH4K3HT | 34B |
| ROC6 | W35_XH4K3HT | 34C |
| ROC7 | W35_XH4K3HT | 34D |
Inspected by Lockwood Gale on date 4/24/2007
| LR_dev | 0.063 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 6, ch 24, ROC 1, Ch 20,24,25,34, ROC 3 Ch 35 2 attempts, not wiorebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/24/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/24/2007 by Ozhan Koybasi
Inspected by Arndt Kirk on date 4/24/2007
| Picture | Comment |
|---|---|

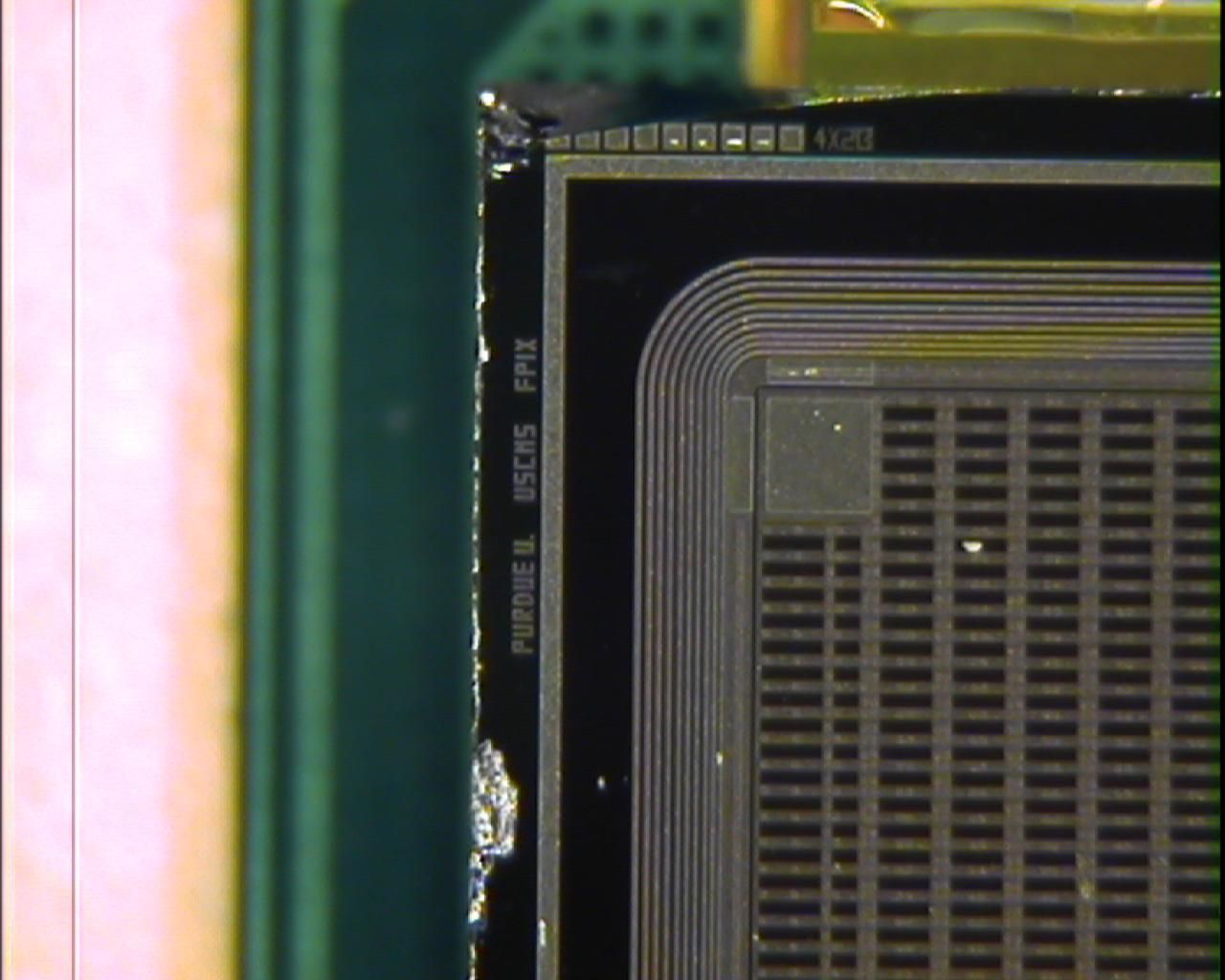

| Chips in edges of the sensor (noted during encapsulation of plaquette wirebonds). |
P_2x4B_030_Aon 4/25/2007 9:49 AM
P_2x4B_030_Aon 4/25/2007 9:49 AM
PLAQUETTE TESTED on 2007-04-25 by Gino Bolla

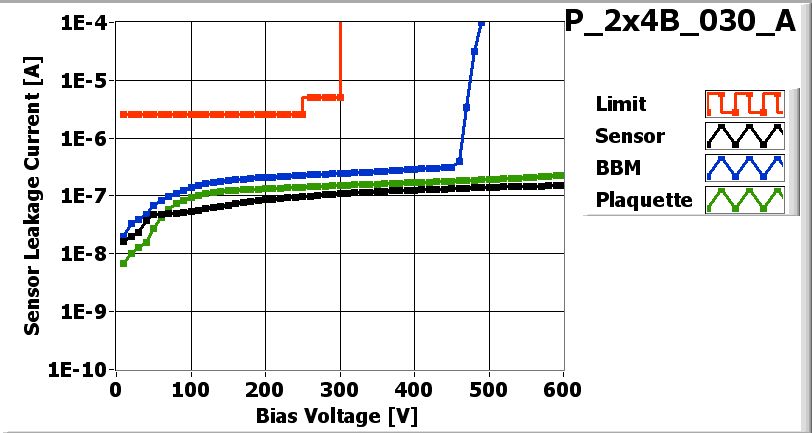

![[IMAGE] of](P_2x4B_030_A_IV.jpg) |
|
|||
![[IMAGE] of](P_2x4B_030_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 136 | 148 | 136 | 132 | 140 | 122 | 138 | 120 | |
| Vana | 115 | 127 | 116 | 146 | 147 | 124 | 126 | 122 | |
| Cal_Del | 76 | 83 | 82 | 70 | 90 | 94 | 70 | 88 | |
| Vthrs_Comp | 77 | 78 | 70 | 85 | 82 | 69 | 87 | 68 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

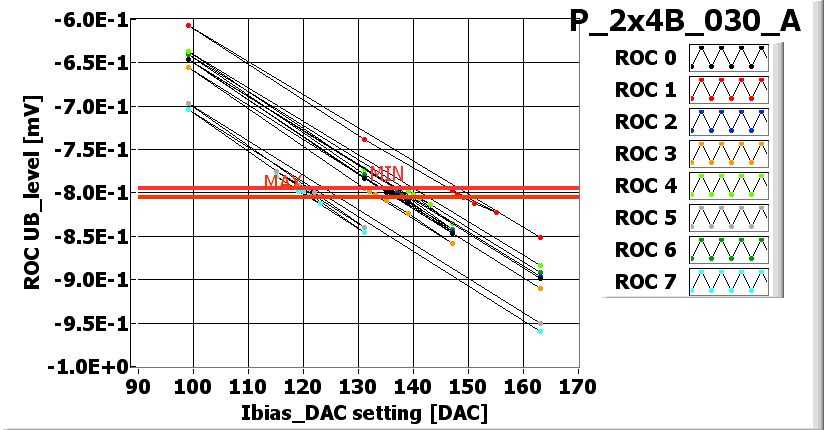

![[IMAGE] of](P_2x4B_030_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

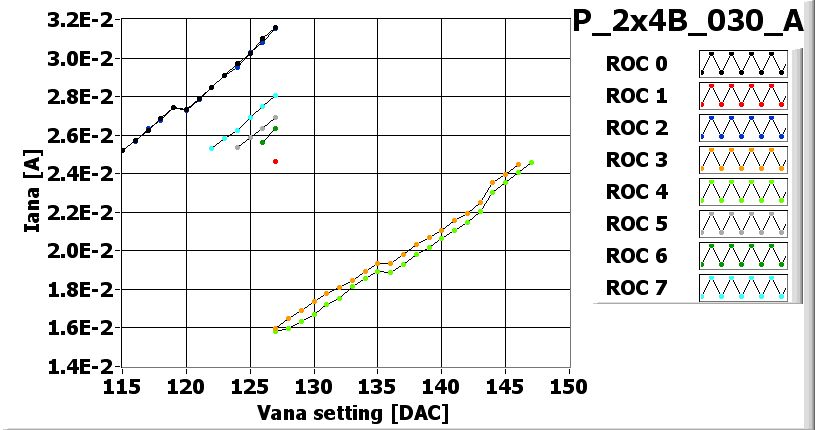

![[IMAGE] of](P_2x4B_030_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_030_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_030_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_030_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_030_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 160 | 130 | 140 | 100 | 95 | 130 | 125 | 145 |
| Vsf | 135 | 140 | 135 | 145 | 145 | 135 | 135 | 140 |
| VoffsetOp | 75 | 85 | 65 | 80 | 100 | 60 | 85 | 50 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 100 | 95 | 100 |

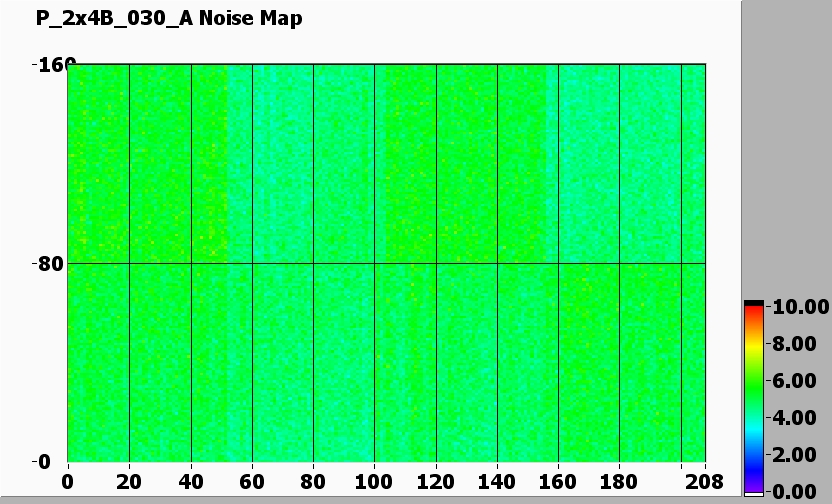

Noise MAP
![[IMAGE] of](P_2x4B_030_A-580-noise.jpg)

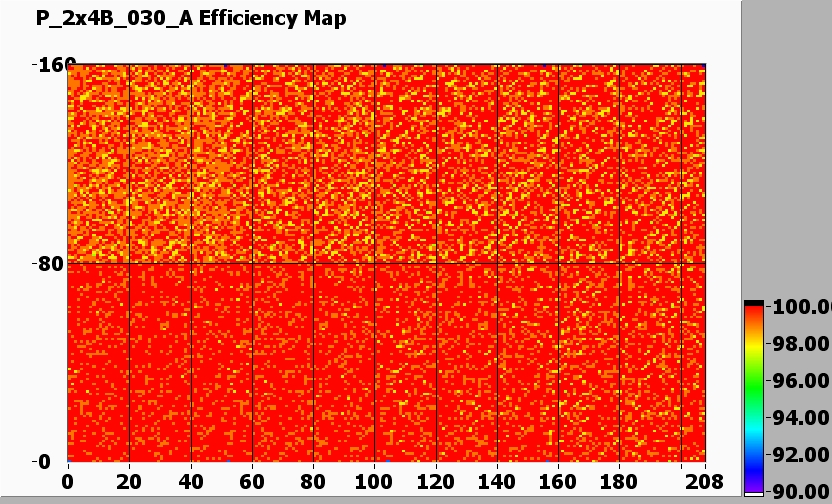

Efficiency MAP
![[IMAGE] of](P_2x4B_030_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
