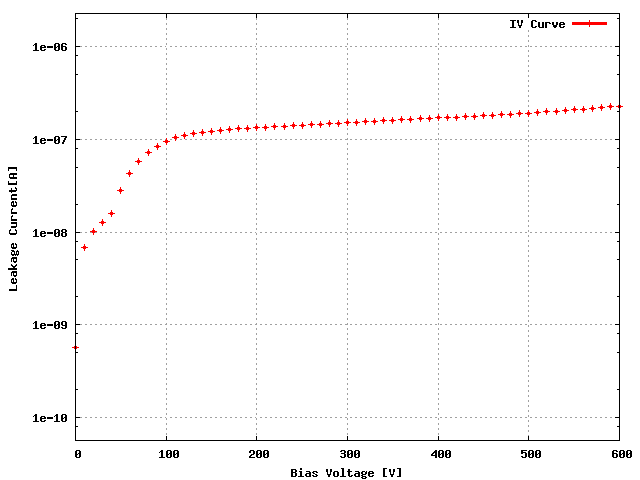

Sensor: S_2x4B_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K3HT | 15B |
ROC1 | W35_XH4K3HT | 15A |
ROC2 | W35_XH4K3HT | 14D |
ROC3 | W35_XH4K3HT | 14C |
ROC4 | W35_XH4K3HT | 33D |
ROC5 | W35_XH4K3HT | 34B |
ROC6 | W35_XH4K3HT | 34C |
ROC7 | W35_XH4K3HT | 34D |
Ibias_DAC, Ibias_DAC Data | 136 | 148 | 136 | 132 | 140 | 122 | 138 | 120 |
Vana, VanaData | 115 | 127 | 116 | 146 | 147 | 124 | 126 | 122 |
CalDelData and plots | 76 | 83 | 82 | 70 | 90 | 94 | 70 | 88 |
VthrCompData and plots | 77 | 78 | 70 | 85 | 82 | 69 | 87 | 68 | Depletion Voltage is -52 and suggested operational voltage is -92
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

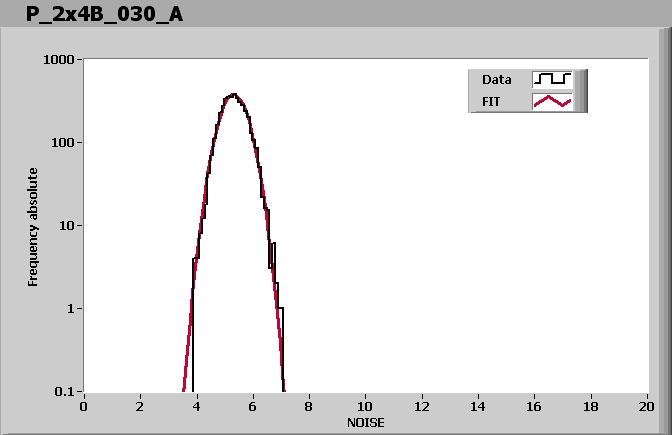

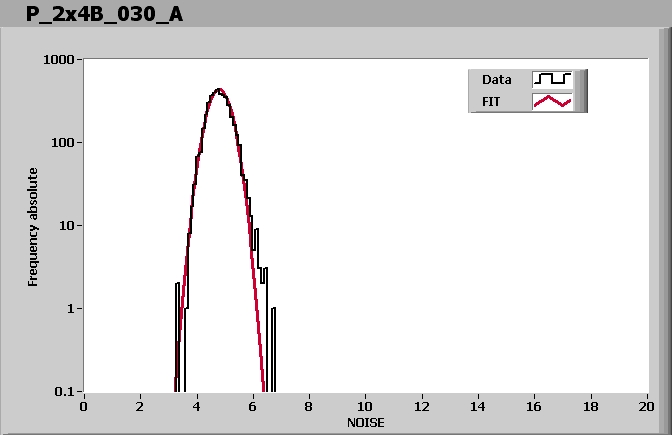

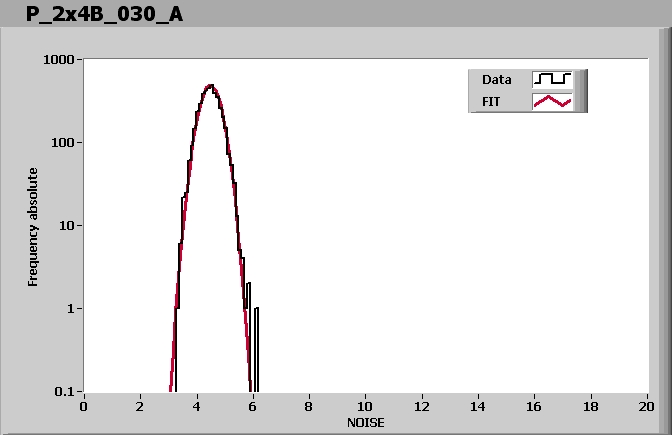

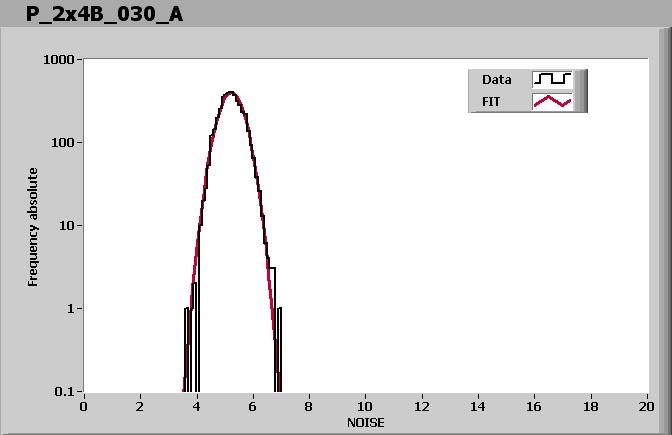

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 160 | 130 | 140 | 100 | 95 | 130 | 125 | 145 |
Vsf | 135 | 140 | 135 | 145 | 145 | 135 | 135 | 140 |
VoffsetOp | 75 | 85 | 65 | 80 | 100 | 60 | 85 | 50 |
VIbias_PH | 100 | 100 | 105 | 100 | 100 | 100 | 95 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:09 AM
