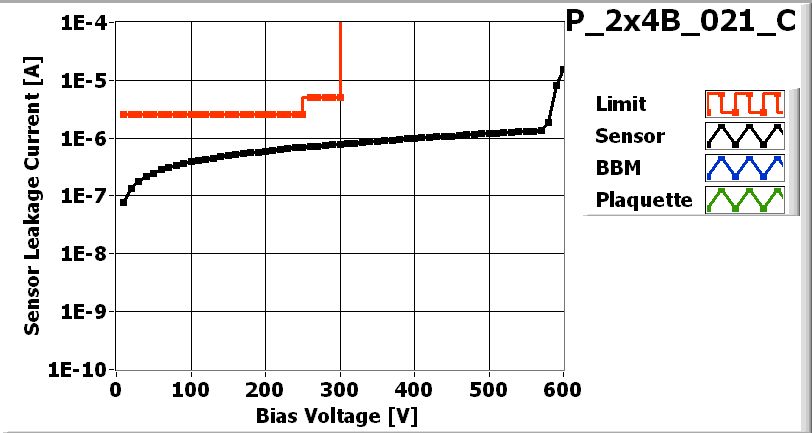

![[IMAGE] of](P_2x4B_021_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

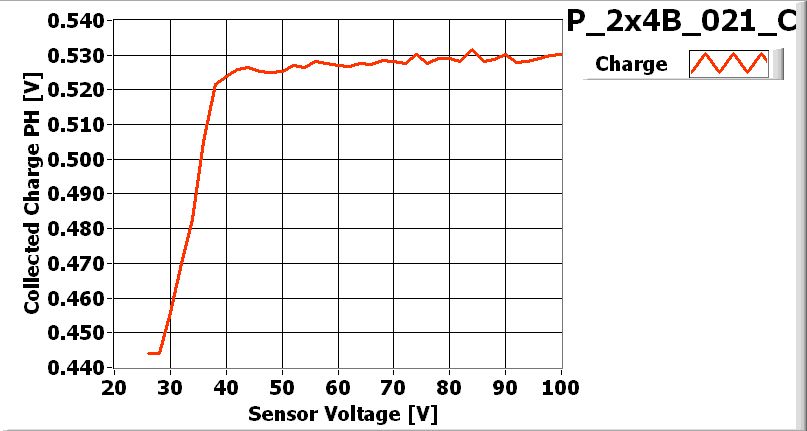

![[IMAGE] of](P_2x4B_021_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_021-2x4B |
| VHDI | 2x4_519 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 67C |
| ROC1 | XL4K3DT | 61B |
| ROC2 | XL4K3DT | 62A |
| ROC3 | XL4K3DT | 62B |
| ROC4 | XL4K3DT | 65B |
| ROC5 | XL4K3DT | 65A |
| ROC6 | XL4K3DT | 64B |
| ROC7 | XL4K3DT | 63B |
Inspected by Arndt Kirk on date 2006-07-24
| LR_dev | 0.034 |
| LL_dev | 0.027 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-24 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-25 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 162 | 174 | 153 | 168 | 154 | 159 | 166 | 162 | |
| Vana | 137 | 146 | 125 | 120 | 130 | 138 | 140 | 127 | |
| Cal_Del | 103 | 78 | 84 | 86 | 103 | 101 | 91 | 94 | |
| Vthrs_Comp | 81 | 86 | 76 | 75 | 73 | 87 | 88 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

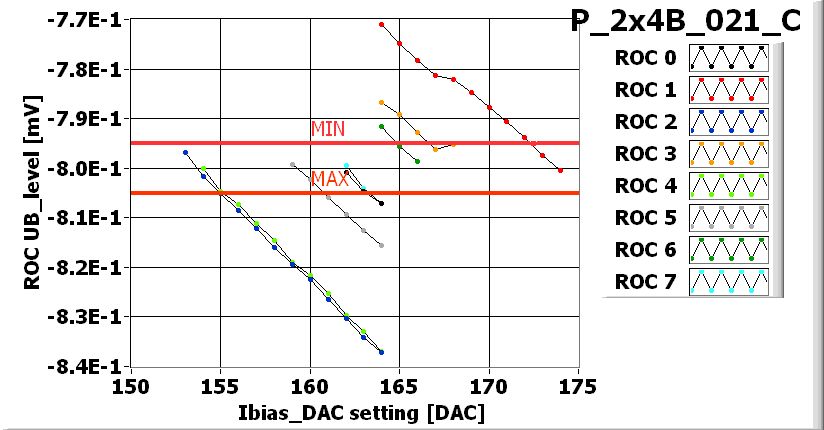

![[IMAGE] of](P_2x4B_021_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

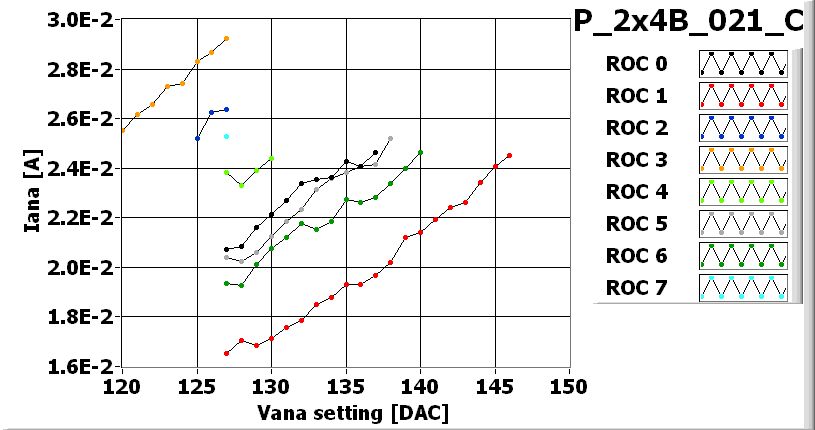

![[IMAGE] of](P_2x4B_021_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_021_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_021_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_021_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_021_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-27
