P_2x4B_019

P_2x4B_019_A

Parts committed by Bolla Gino on date 11/19/2007

Part	ID
BBM	BBM_019-2x4B
VHDI	2x4_727

ROC ROC wafer Label

ROC0 W53_DXLQG9T 67B

ROC1 W53_DXLQG9T 67A

ROC2 W53_DXLQG9T 66C

ROC3 W53_DXLQG9T 66B

ROC4 W53_DXLQG9T 48B

ROC5 W53_DXLQG9T 48C

ROC6 W53_DXLQG9T 48D

ROC7 W53_DXLQG9T 49A

ROC	ROC wafer	Label
ROC0	W53_DXLQG9T	67B
ROC1	W53_DXLQG9T	67A
ROC2	W53_DXLQG9T	66C
ROC3	W53_DXLQG9T	66B
ROC4	W53_DXLQG9T	48B
ROC5	W53_DXLQG9T	48C
ROC6	W53_DXLQG9T	48D
ROC7	W53_DXLQG9T	49A

Inspected by Lockwood Gale on date 12/4/2007

LR_dev 0.046

LL_dev 0.035

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 3, Ch 23,2FL,2 tries, ROC 7, CH 1,2,3,4 2-4 tries, ROC 3, Ch 23,2FL, 2 tries, no other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/4/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi

P_2x4B_019_Aon 12/7/2007 11:10 AM

PLAQUETTE TESTED on 2007-12-07 by Ozhan Koybasi

IV_XML-File

Maximum Voltage 570 V

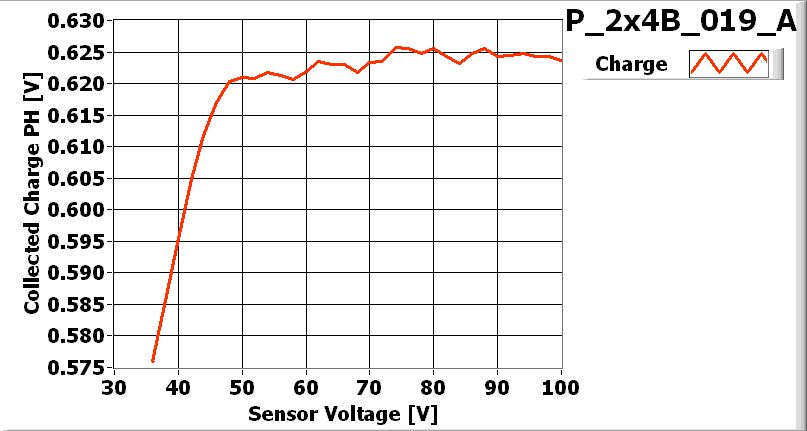

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	164	158	144	156	154	160	160	160
Vana	149	158	141	142	154	144	150	145
Cal_Del	76	90	86	68	82	71	93	80
Vthrs_Comp	87	87	75	93	84	90	83	85
Unbumped	0	0	0	0	0	0	0	0
Dead	1	2	0	0	2	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	1	2	0	0	2	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

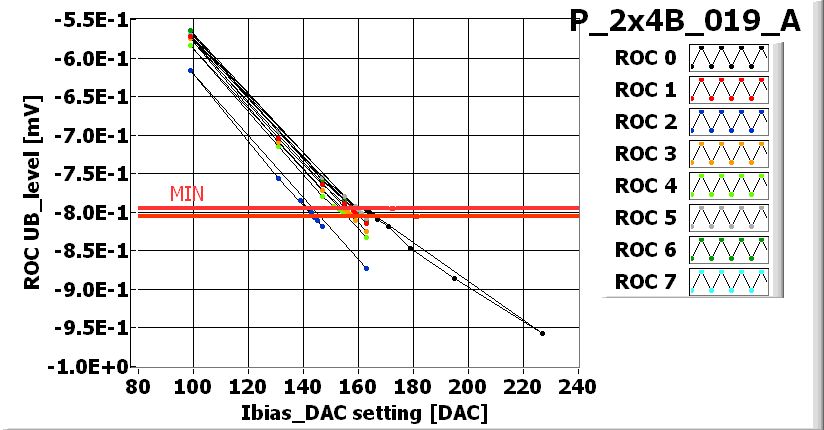

	I_BIAS_DAC_XML-File

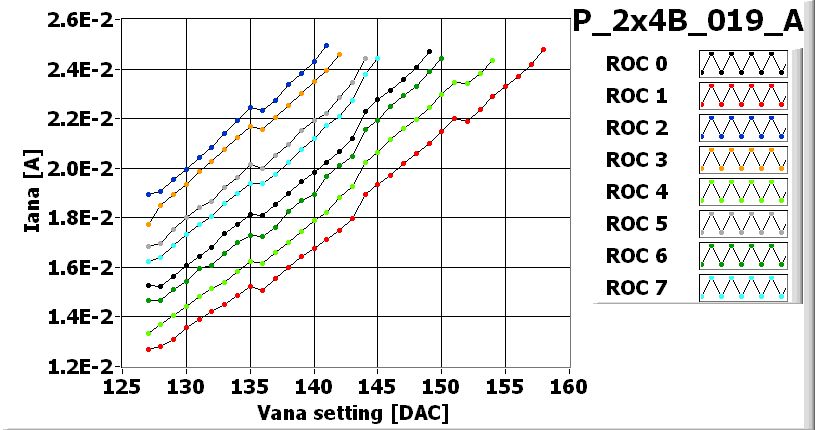

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	95	90	95	95	90	100	95	90
Vsf	155	155	140	140	150	145	150	145
VoffsetOp	120	125	95	110	115	115	95	95
VIbias_PH	100	105	95	100	105	100	95	95

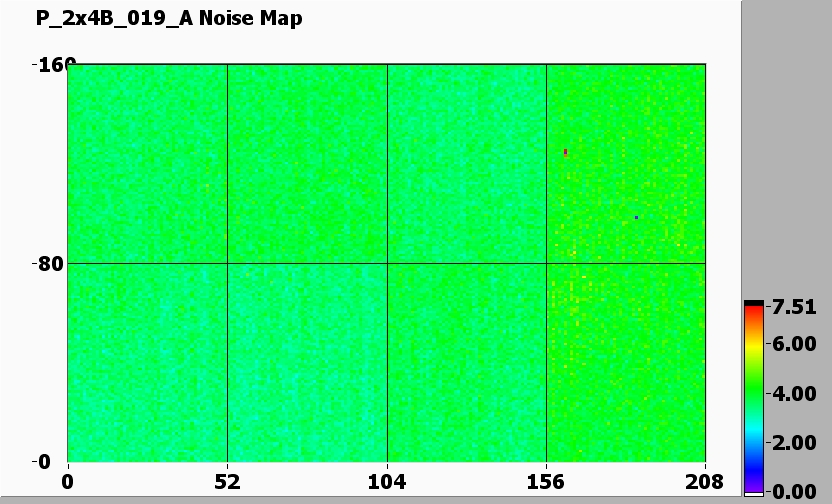

Noise MAP at VMAX

Efficiency MAP

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-12-13
