P_2x4B_019_A

Production testing

Date:12/7/2007

Operator: Ozhan Koybasi

start testing time:11:10 AM

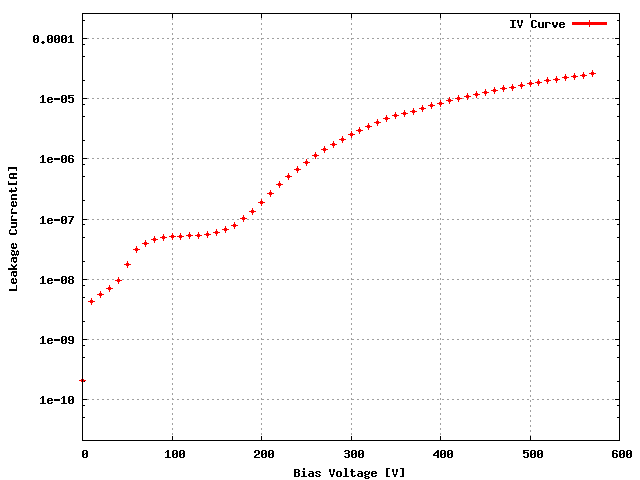

Sensor: S_2x4B_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W53_DXLQG9T67B
ROC1W53_DXLQG9T67A
ROC2W53_DXLQG9T66C
ROC3W53_DXLQG9T66B
ROC4W53_DXLQG9T48B
ROC5W53_DXLQG9T48C
ROC6W53_DXLQG9T48D
ROC7W53_DXLQG9T49A

Inspected by Lockwood Gale on date 12/4/2007
LR_dev0.046
LL_dev0.035

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood GaleForce used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 3, Ch 23,2FL,2 tries, ROC 7, CH 1,2,3,4 2-4 tries, ROC 3, Ch 23,2FL, 2 tries, no other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/4/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi

P_2x4B_019_Aon 12/7/2007 11:10 AM

Depletion Voltage is -50 and suggested operational voltage is -90
Ibias_DAC, Ibias_DAC Data 164 158 144 156 154 160 160 160
Vana, VanaData 149 158 141 142 154 144 150 145
CalDelData and plots7690866882719380
VthrCompData and plots8787759384908385
TestDdata ,TestD Plots18002035
LightData ,Light Plots00000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe95909595901009590
Vsf155155140140150145150145
VoffsetOp120125951101151159595
VIbias_PH100105951001051009595
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 3.702978

SIGMA = 0.288671
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 3.654870

SIGMA = 0.281859
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 3.896354

SIGMA = 0.310296

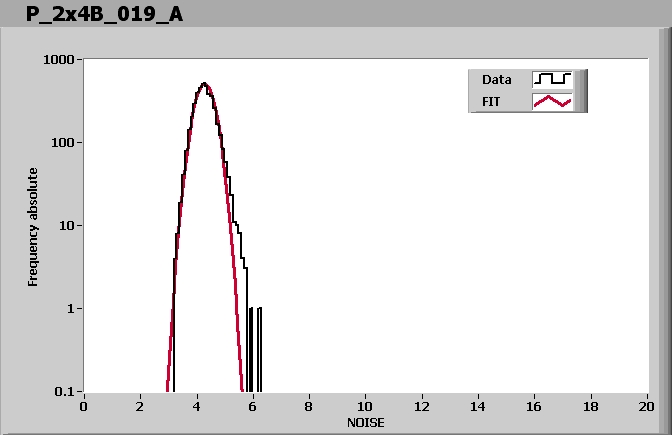

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.273411

SIGMA = 0.321973

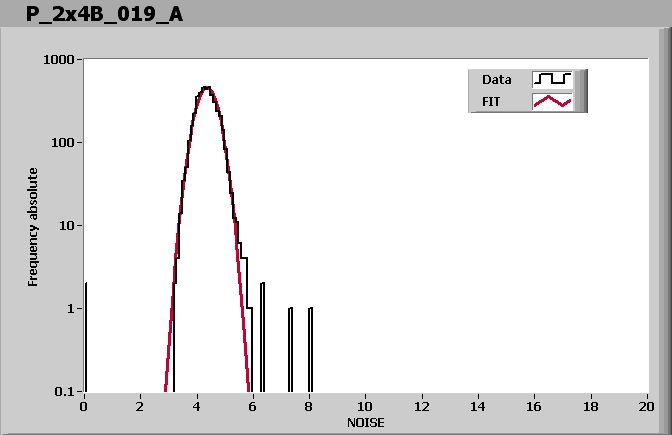

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.353496

SIGMA = 0.357968

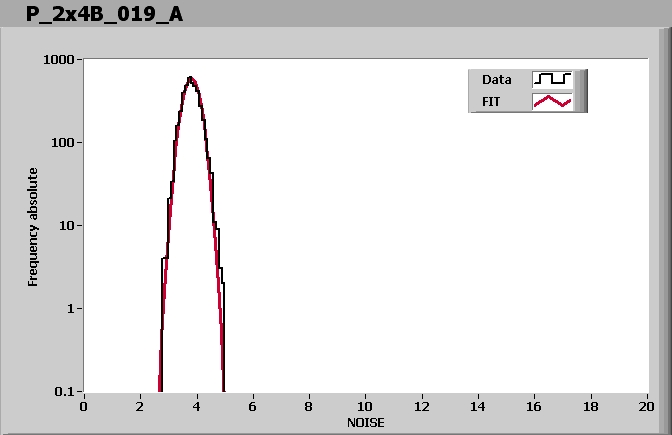

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 3.805943

SIGMA = 0.278300

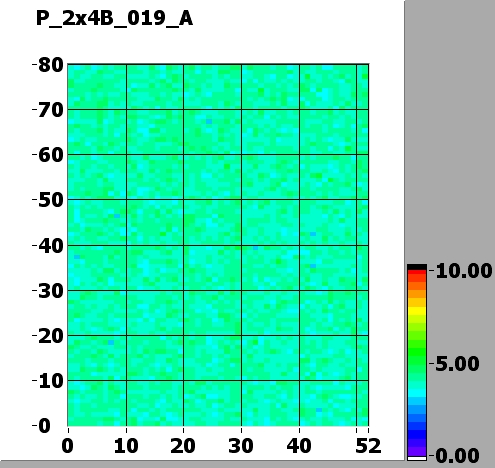

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 3.993095

SIGMA = 0.308638
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 3.855767

SIGMA = 0.311205

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:41 AM
