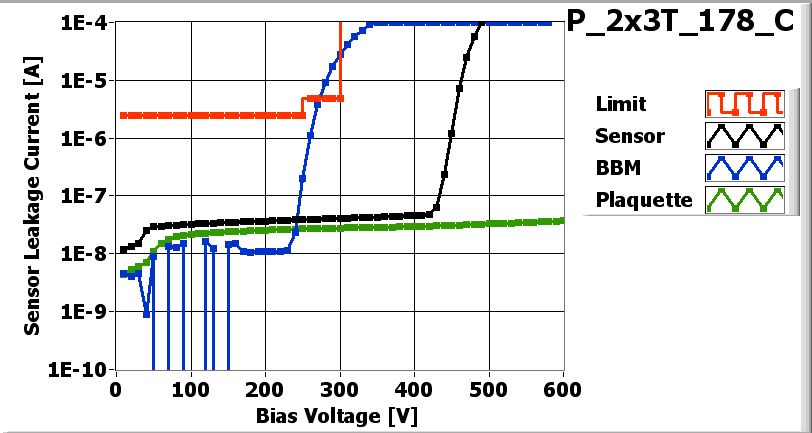

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_178_C_LASER.jpg)

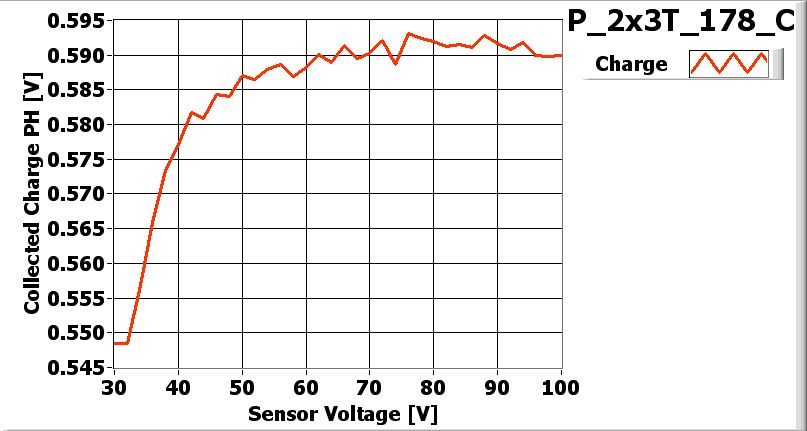

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/8/2007
| Part | ID |
|---|---|
| BBM | BBM_178-2x3T |
| VHDI | 2x3_456 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 58D |
| ROC1 | KFNG13T | 37D |
| ROC2 | KFNG13T | 57D |
| ROC3 | KFNG13T | 17C |
| ROC4 | KFNG13T | 68D |
| ROC5 | KFNG13T | 58B |
Inspected by Arndt Kirk on date 5/10/2007
| LR_dev | 0.105 |
| LL_dev | 0.108 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 5/10/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/10/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/10/2007 by Ortiz Jason
P_2x3T_178_Con 5/11/2007 12:12 PM
P_2x3T_178_C-1on 5/11/2007 12:51 PM
P_2x3T_178_C-1on 5/11/2007 12:51 PM
PLAQUETTE TESTED on 2007-05-11 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 170 | 146 | 160 | 164 | 162 | 160 | |
| Vana | 148 | 127 | 146 | 139 | 133 | 145 | |
| Cal_Del | 71 | 87 | 76 | 73 | 96 | 62 | |
| Vthrs_Comp | 92 | 77 | 85 | 83 | 76 | 84 | |
| Unbumped | 0 | 2 | 2 | 1 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 2 | 2 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_178_C_Ibias-dac.jpg) |

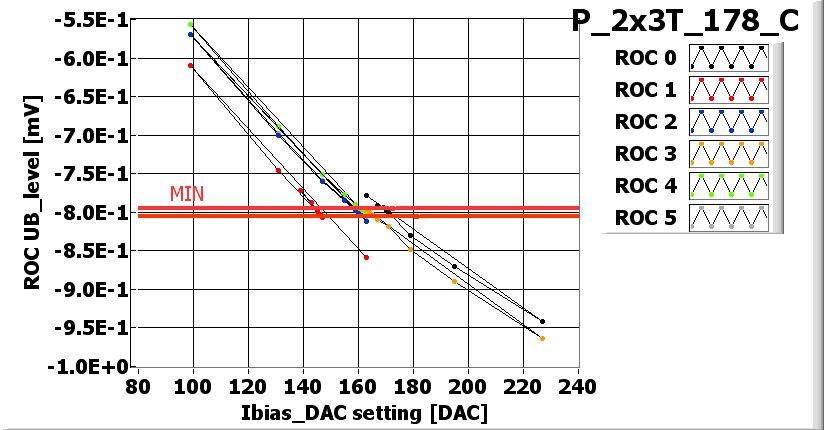

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_178_C_Vana.jpg) |

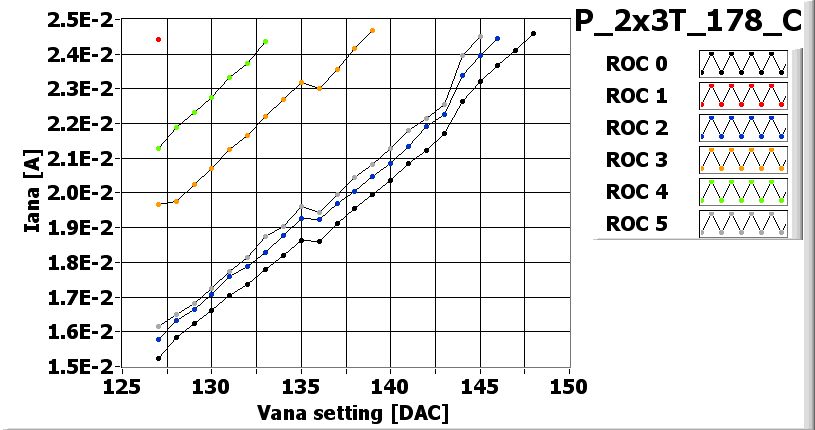

VANA_XML-File |
![[IMAGE] of](P_2x3T_178_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_178_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_178_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_178_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 120 | 100 | 110 | 120 | 95 |
| Vsf | 145 | 135 | 150 | 140 | 135 | 140 |
| VoffsetOp | 105 | 75 | 80 | 95 | 70 | 90 |
| VIbias_PH | 100 | 105 | 105 | 95 | 100 | 95 |

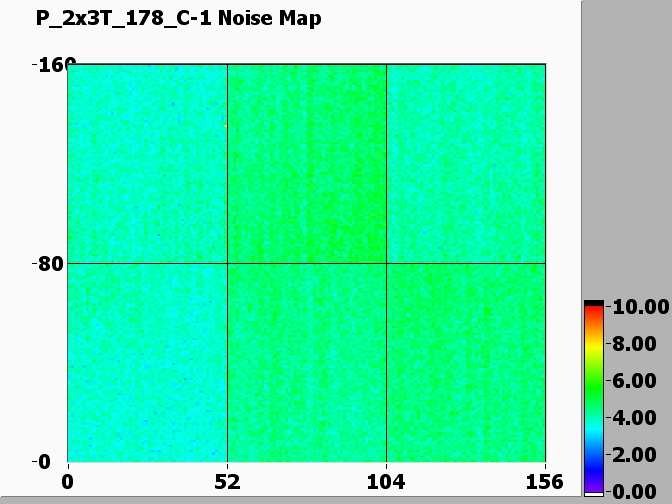

Noise MAP
![[IMAGE] of](P_2x3T_178_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_178_C-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
