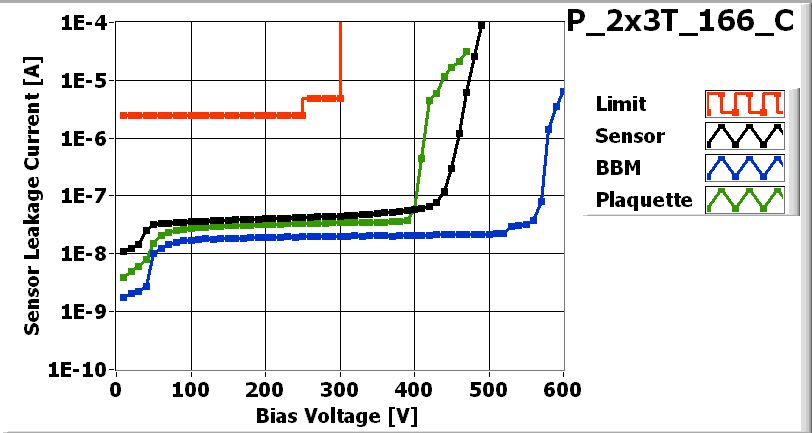

![[IMAGE] of](P_2x3T_166_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 470 V |

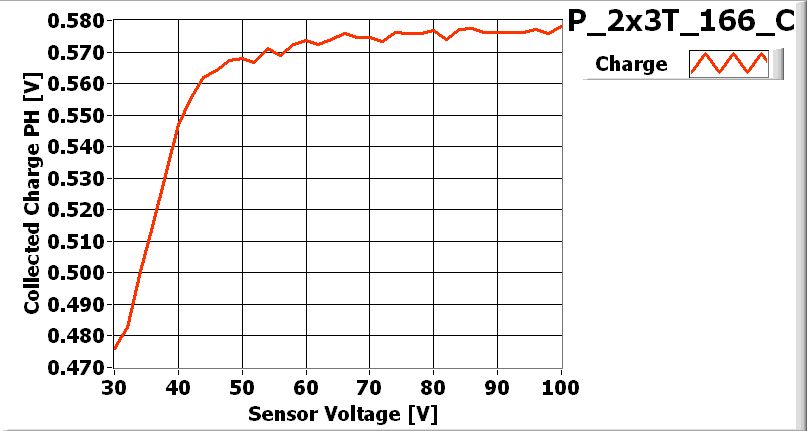

![[IMAGE] of](P_2x3T_166_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_166-2x3T |
| VHDI | 2x3_493 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 05D |
| ROC1 | XG4KFCT | 06C |
| ROC2 | XG4KFCT | 05C |
| ROC3 | XG4KFCT | 04D |
| ROC4 | XG4KFCT | 04C |
| ROC5 | XG4KFCT | 03C |
Inspected by Arndt Kirk on date 3/21/2007
| LR_dev | 0.018 |
| LL_dev | 0.015 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/21/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/21/2007 by Ozhan Koybasi
P_2x3T_166_Con 3/22/2007 10:57 AM
P_2x3T_166_Con 3/22/2007 10:57 AM
PLAQUETTE TESTED on 2007-03-22 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 138 | 144 | 128 | 126 | 144 | |
| Vana | 139 | 127 | 124 | 126 | 125 | 114 | |
| Cal_Del | 98 | 77 | 96 | 86 | 95 | 88 | |
| Vthrs_Comp | 76 | 80 | 72 | 84 | 76 | 77 | |
| Unbumped | 0 | 0 | 1 | 1 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 1 | |
| Noisy | 0 | 3 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 3 | 1 | 1 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

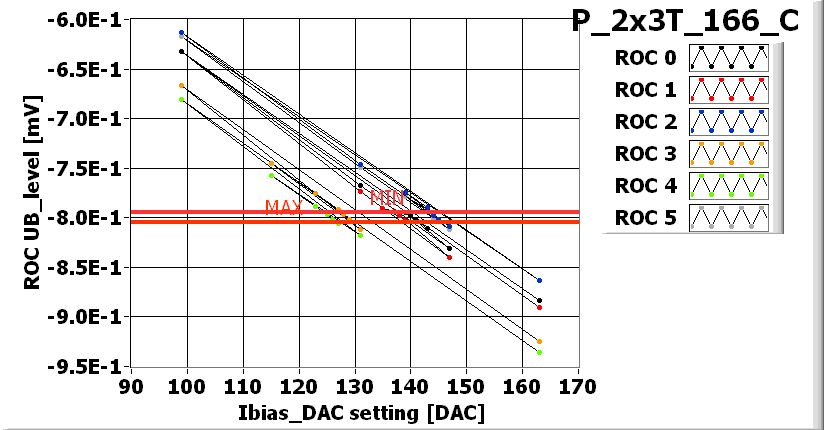

![[IMAGE] of](P_2x3T_166_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

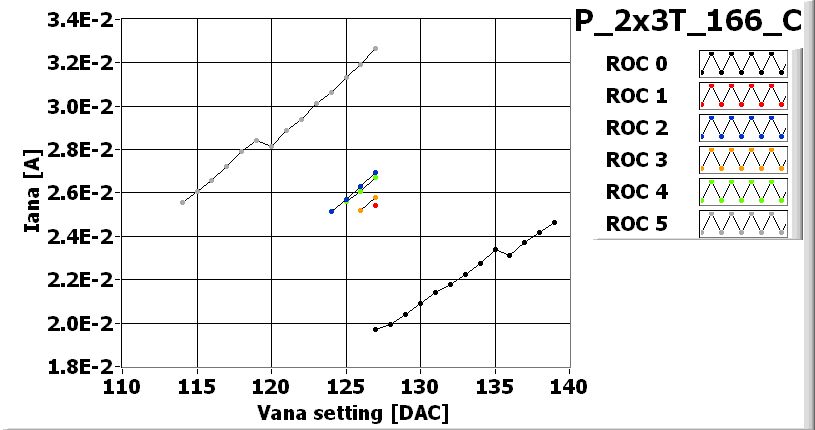

![[IMAGE] of](P_2x3T_166_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_166_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_166_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_166_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_166_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 130 | 140 | 110 | 135 | 160 |
| Vsf | 140 | 140 | 135 | 140 | 140 | 135 |
| VoffsetOp | 85 | 70 | 80 | 70 | 70 | 75 |
| VIbias_PH | 100 | 105 | 100 | 95 | 95 | 100 |

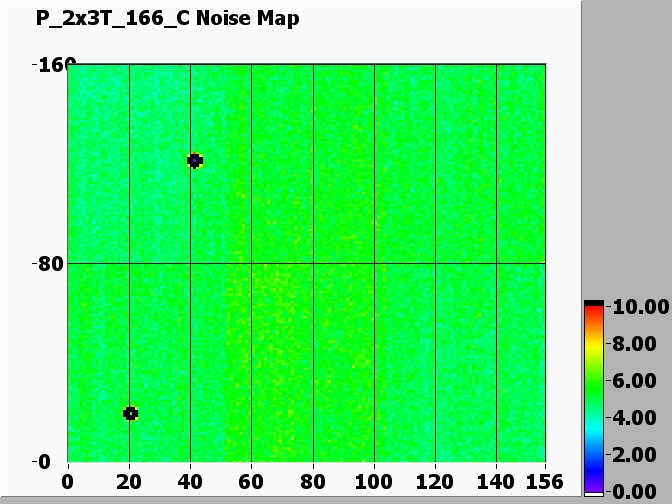

Noise MAP
![[IMAGE] of](P_2x3T_166_C-450-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_166_C-450-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
