P_2x3T_158

P_2x3T_158_A

Parts committed by Bolla Gino on date 12/13/2006

Part	ID
BBM	BBM_158-2x3T
VHDI	2x3_210

ROC ROC wafer Label

ROC0 W21_XA4KFIT 18C

ROC1 W21_XA4KFIT 39C

ROC2 W21_XA4KFIT 16D

ROC3 W21_XA4KFIT 14D

ROC4 W21_XA4KFIT 15A

ROC5 W21_XA4KFIT 15B

ROC	ROC wafer	Label
ROC0	W21_XA4KFIT	18C
ROC1	W21_XA4KFIT	39C
ROC2	W21_XA4KFIT	16D
ROC3	W21_XA4KFIT	14D
ROC4	W21_XA4KFIT	15A
ROC5	W21_XA4KFIT	15B

Inspected by Arndt Kirk on date 12/18/2006

LR_dev 0.036

LL_dev 0.056

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 12/18/2006 by Arndt Kirk

P_2x3T_158_Aon 12/18/2006 2:39 PM

PLAQUETTE TESTED on 2006-12-18 by Pertra Merkel

IV_XML-File

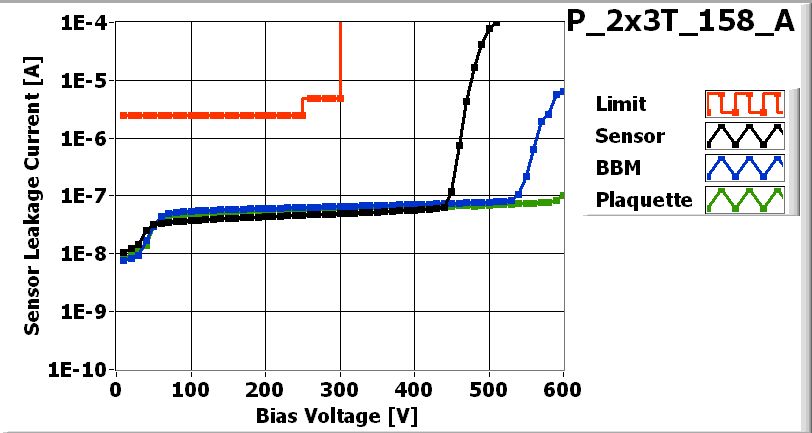

Maximum Voltage 600 V

LASER_XML-File

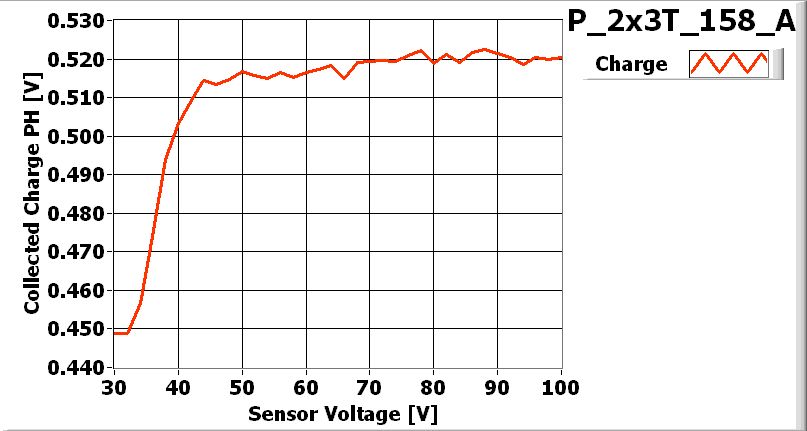

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5

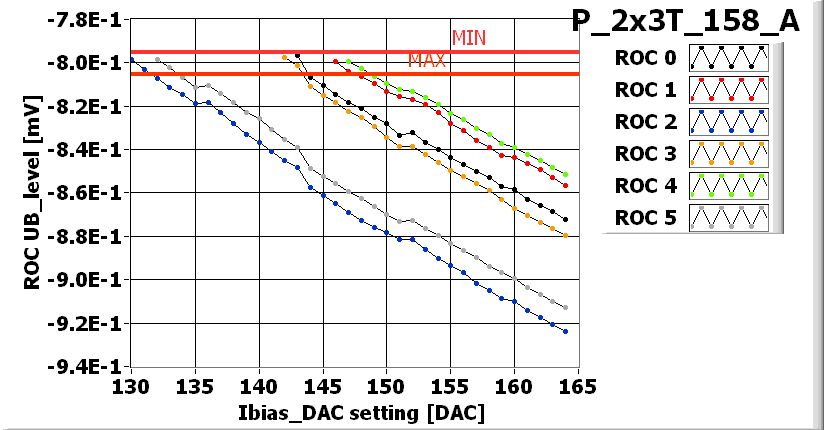

Ibias_DAC	144	146	130	142	147	132

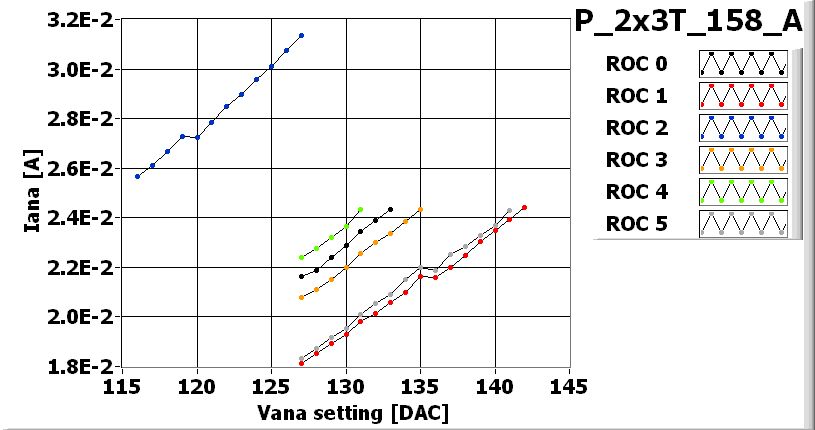

Vana	133	142	116	135	131	141
Cal_Del	88	82	96	79	75	77
Vthrs_Comp	72	80	70	73	80	86
Unbumped	0	0	0	0	3	0
Dead	0	0	0	0	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	0	0	0	3	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2007-01-05

Plaquette assigned to panel P3L_031
