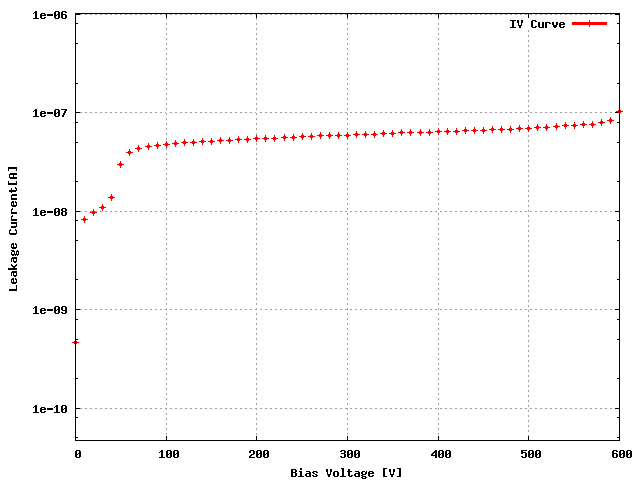

Sensor: S_2x3T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W21_XA4KFIT | 18C |
ROC1 | W21_XA4KFIT | 39C |
ROC2 | W21_XA4KFIT | 16D |
ROC3 | W21_XA4KFIT | 14D |
ROC4 | W21_XA4KFIT | 15A |
ROC5 | W21_XA4KFIT | 15B |
Ibias_DAC, Ibias_DAC Data | 144 | 146 | 130 | 142 | 147 | 132 |
Vana, VanaData | 133 | 142 | 116 | 135 | 131 | 141 |
CalDelData and plots | 88 | 82 | 96 | 79 | 75 | 77 |
VthrCompData and plots | 72 | 80 | 70 | 73 | 80 | 86 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 3 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 3 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good plaquette with 3 bad bumps in ROC4.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:01 PM
