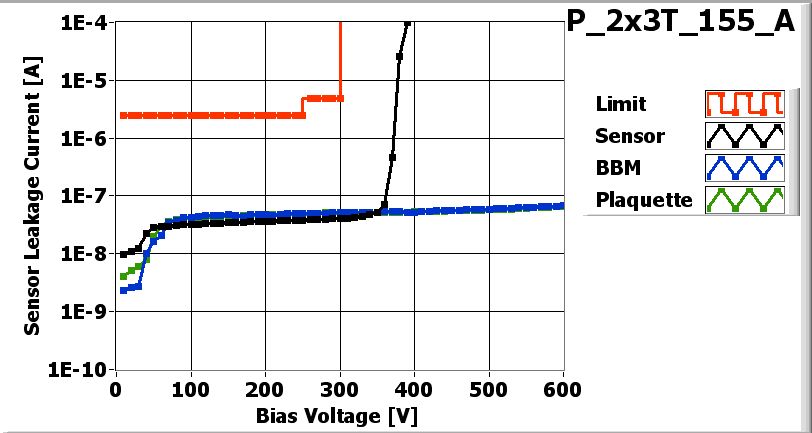

![[IMAGE] of](P_2x3T_155_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_155_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 2/23/2007
| Part | ID |
|---|---|
| BBM | BBM_155-2x3T |
| VHDI | 2x3_479 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 05D |
| ROC1 | W31_X44K5UT | 05B |
| ROC2 | W31_X44K5UT | 04D |
| ROC3 | W29_X64K5ST | 34C |
| ROC4 | W29_X64K5ST | 34D |
| ROC5 | W29_X64K5ST | 35B |
Inspected by Lockwood Gale on date 2/27/2007
| LR_dev | 0.041 |
| LL_dev | 0.055 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/1/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 3/1/2007 by Arndt Kirk
P_2x3T_155_Aon 3/2/2007 1:27 PM
P_2x3T_155_A-1on 3/2/2007 3:57 PM
P_2x3T_155_A-1on 3/2/2007 3:57 PM
PLAQUETTE TESTED on 2007-03-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 130 | 150 | 130 | 154 | 142 | 132 | |
| Vana | 126 | 132 | 126 | 134 | 142 | 122 | |
| Cal_Del | 85 | 83 | 86 | 77 | 81 | 88 | |
| Vthrs_Comp | 72 | 74 | 74 | 80 | 89 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 8 | 27 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 8 | 27 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

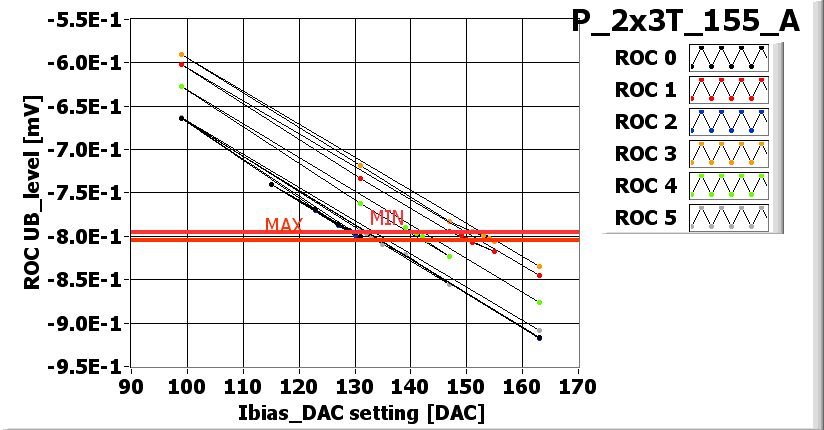

![[IMAGE] of](P_2x3T_155_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

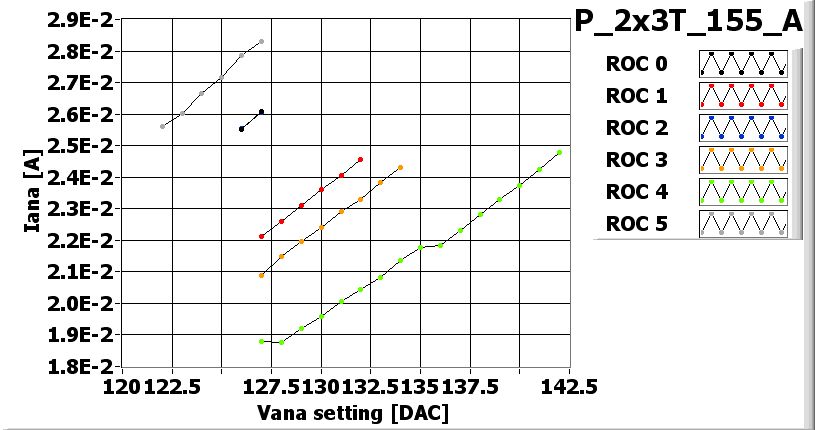

![[IMAGE] of](P_2x3T_155_A_Vana.jpg) |
VANA_XML-File |

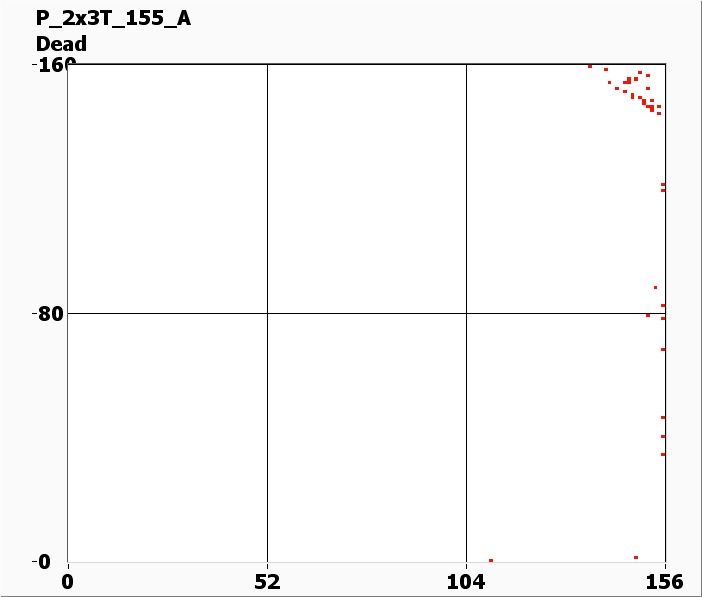

![[IMAGE] of](P_2x3T_155_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_155_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_155_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_155_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 120 | 125 | 140 | 95 | 130 |
| Vsf | 135 | 140 | 140 | 140 | 140 | 140 |
| VoffsetOp | 70 | 85 | 65 | 100 | 105 | 85 |
| VIbias_PH | 105 | 95 | 105 | 100 | 105 | 100 |

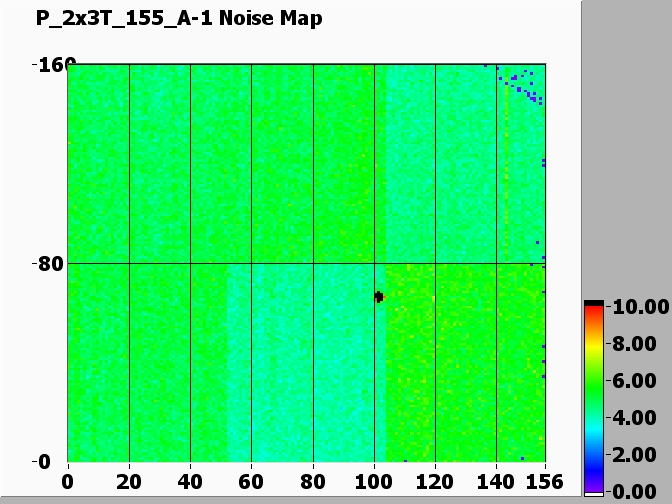

Noise MAP
![[IMAGE] of](P_2x3T_155_A-1-580-noise.jpg)

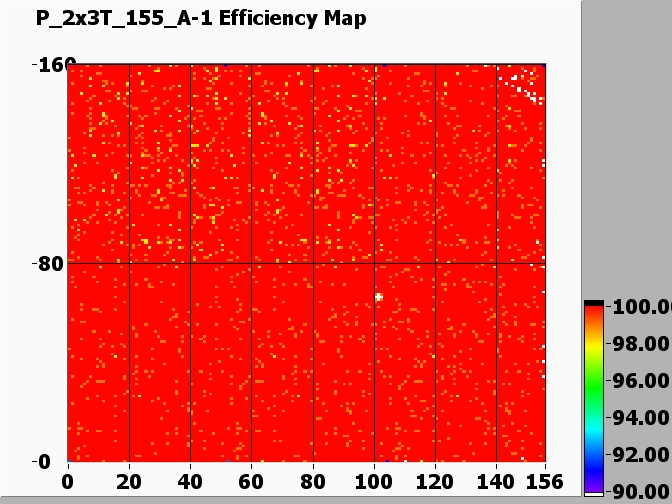

Efficiency MAP
![[IMAGE] of](P_2x3T_155_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
