P_2x3T_155

P_2x3T_155_A-1

Production testing

Date:3/2/2007

Operator: Isaac Childres

start testing time:3:57 PM

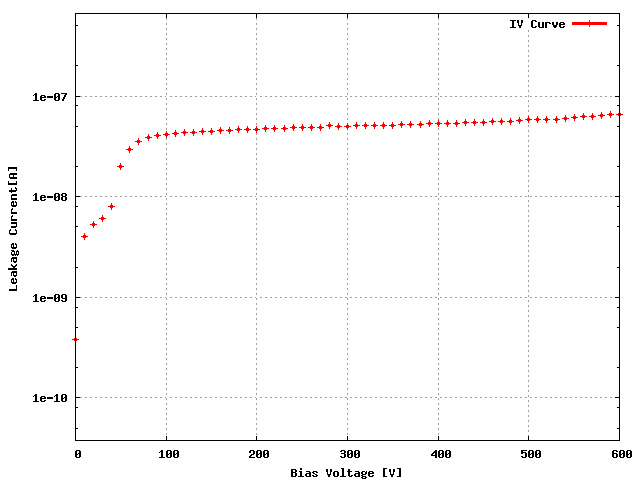

Sensor: S_2x3T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W31_X44K5UT 05D

ROC1 W31_X44K5UT 05B

ROC2 W31_X44K5UT 04D

ROC3 W29_X64K5ST 34C

ROC4 W29_X64K5ST 34D

ROC5 W29_X64K5ST 35B

ROC	ROC wafer	Label
ROC0	W31_X44K5UT	05D
ROC1	W31_X44K5UT	05B
ROC2	W31_X44K5UT	04D
ROC3	W29_X64K5ST	34C
ROC4	W29_X64K5ST	34D
ROC5	W29_X64K5ST	35B

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 130 150 130 154 142 132

Vana, VanaData 126 132 126 134 142 122

CalDelData and plots 85 83 86 77 81 88

VthrCompData and plots 72 74 74 80 89 77

TestDdata ,TestD Plots 0 0 8 28 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

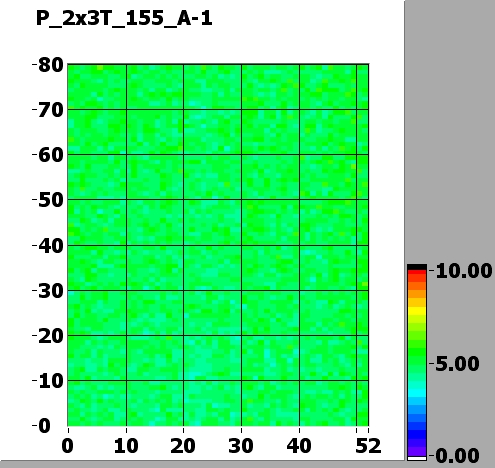

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	120	125	140	95	130
Vsf	135	140	140	140	140	140
VoffsetOp	70	85	65	100	105	85
VIbias_PH	105	95	105	100	105	100

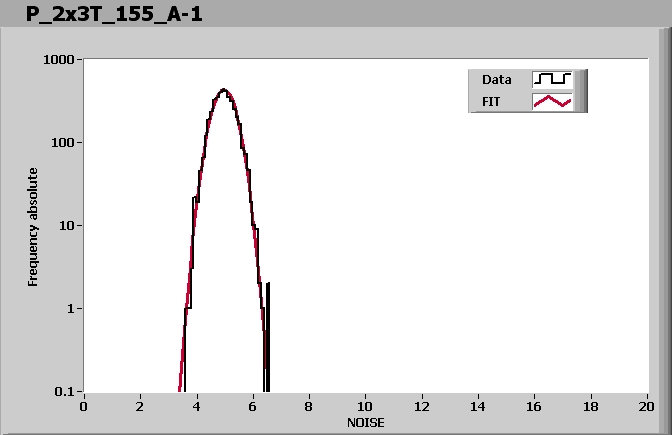

ROC0 NOISE			MEAN = 4.961278 SIGMA = 0.384631

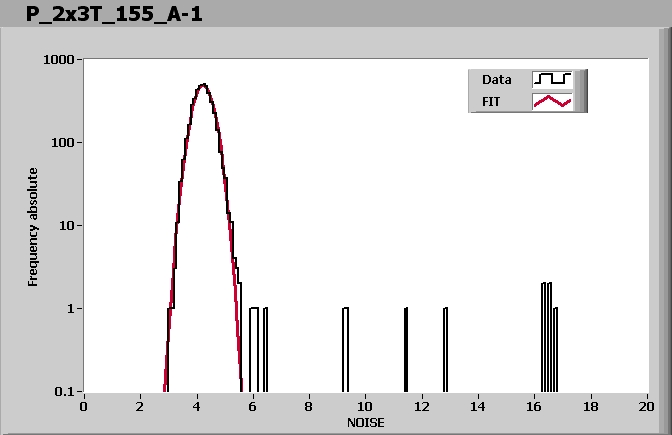

ROC1 NOISE			MEAN = 4.223556 SIGMA = 0.332996

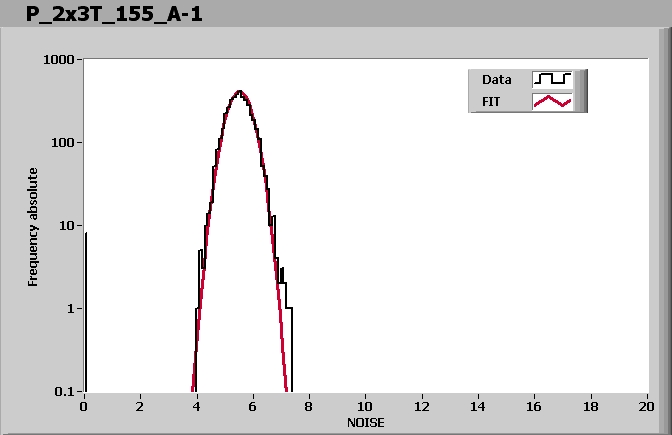

ROC2 NOISE			MEAN = 5.515482 SIGMA = 0.407319

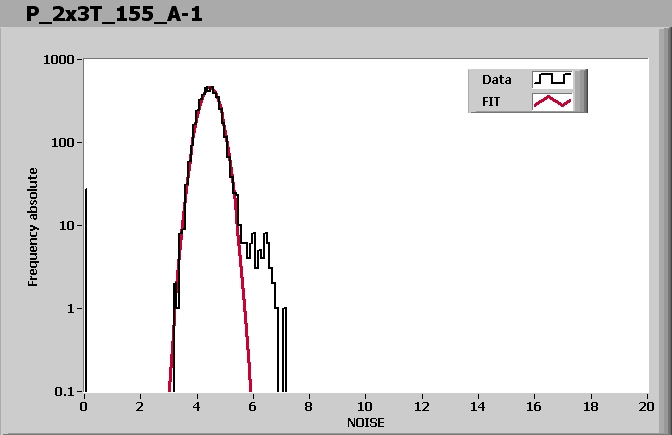

ROC3 NOISE			MEAN = 4.456730 SIGMA = 0.352631

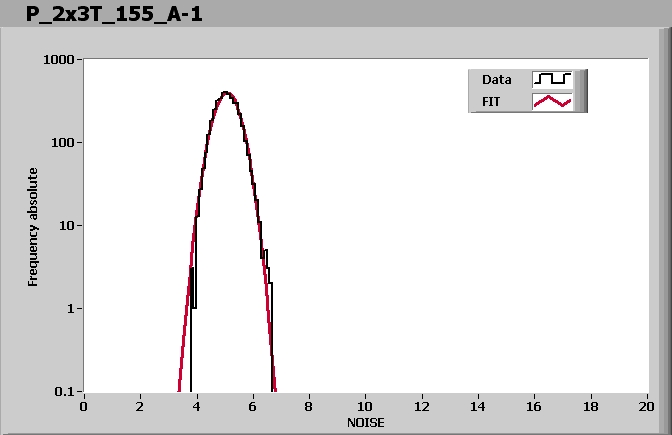

ROC4 NOISE			MEAN = 5.070975 SIGMA = 0.418633

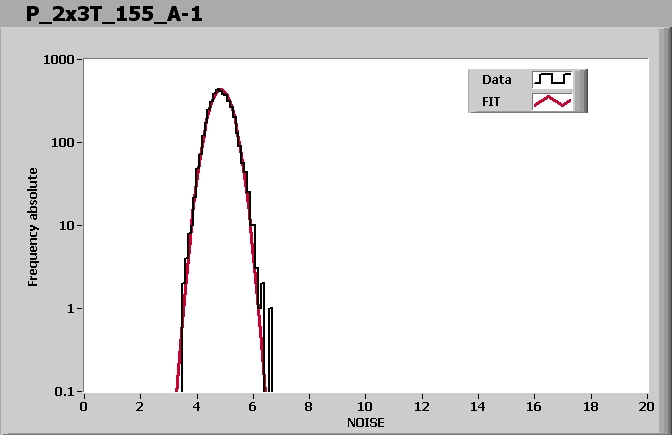

ROC5 NOISE			MEAN = 4.852479 SIGMA = 0.380923

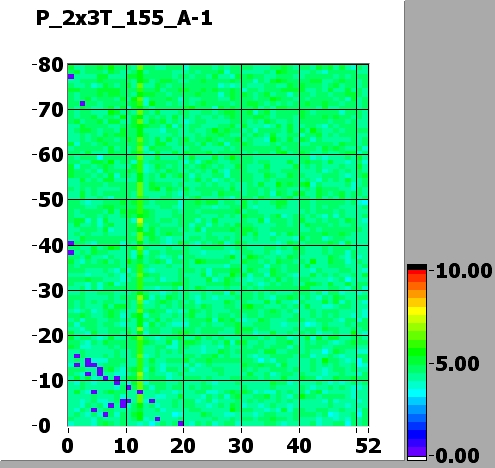

Comment (if any): Bad corner on ROC3, but still an acceptable number of dead pixels.

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3T_155_A.html,

End testing time: 4:15 PM

Ibias_DAC, Ibias_DAC Data	130	150	130	154	142	132
Vana, VanaData	126	132	126	134	142	122
CalDelData and plots	85	83	86	77	81	88
VthrCompData and plots	72	74	74	80	89	77
TestDdata ,TestD Plots	0	0	8	28	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
