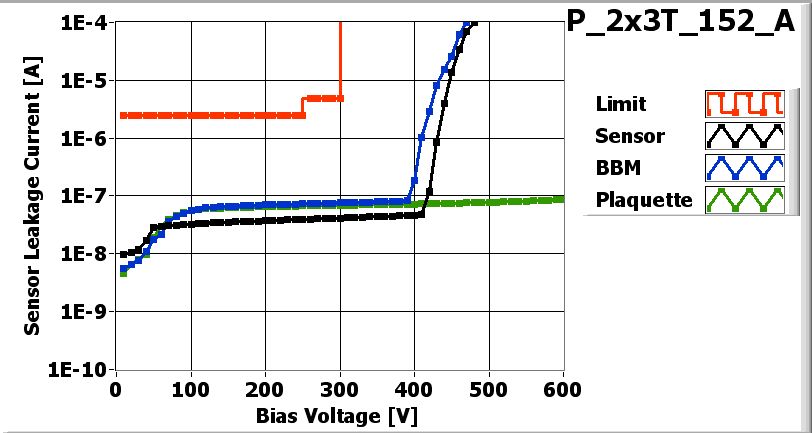

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_152_A_LASER.jpg)

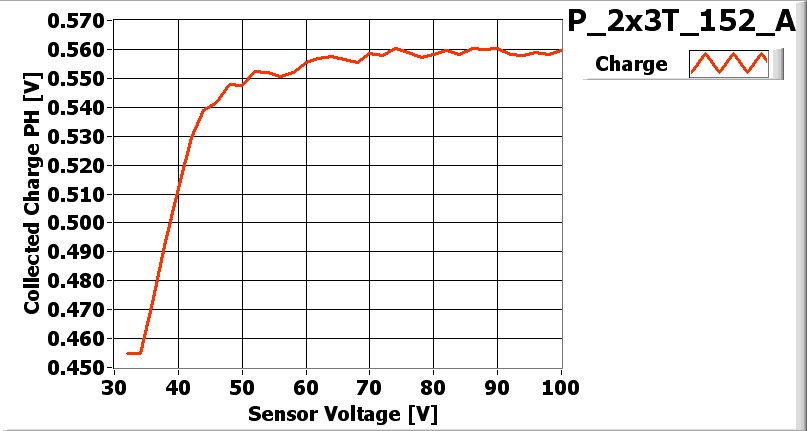

| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_152-2x3T |
| VHDI | 2x3_483 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 75D |
| ROC1 | W34_XA4K3PT | 75B |
| ROC2 | W34_XA4K3PT | 75A |
| ROC3 | W34_XA4K3PT | 43A |
| ROC4 | W34_XA4K3PT | 43C |
| ROC5 | W34_XA4K3PT | 43D |
Inspected by Lockwood Gale on date 3/2/2007
| LR_dev | 0.042 |
| LL_dev | 0.047 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/2/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/5/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/5/2007 by Ozhan Koybasi
P_2x3T_152_Aon 3/5/2007 1:37 PM
P_2x3T_152_Aon 3/5/2007 1:37 PM
PLAQUETTE TESTED on 2007-03-05 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 156 | 134 | 140 | 142 | 134 | |
| Vana | 138 | 144 | 143 | 129 | 130 | 126 | |
| Cal_Del | 85 | 61 | 74 | 94 | 94 | 93 | |
| Vthrs_Comp | 81 | 90 | 85 | 64 | 79 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_152_A_Ibias-dac.jpg) |

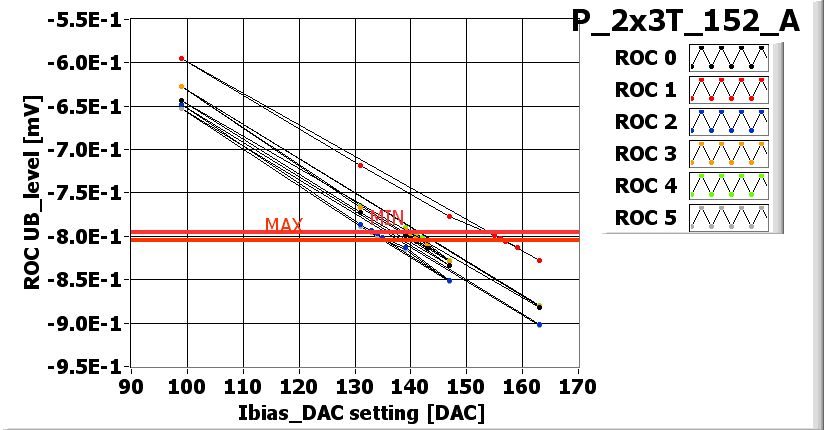

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_152_A_Vana.jpg) |

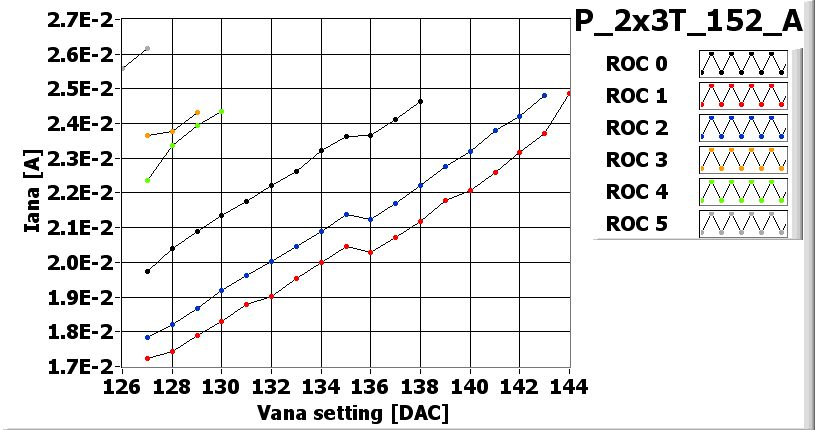

VANA_XML-File |
![[IMAGE] of](P_2x3T_152_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_152_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_152_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_152_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 95 | 90 | 100 | 125 | 160 |
| Vsf | 140 | 145 | 145 | 135 | 135 | 145 |
| VoffsetOp | 100 | 120 | 95 | 75 | 75 | 70 |
| VIbias_PH | 95 | 100 | 105 | 105 | 100 | 100 |

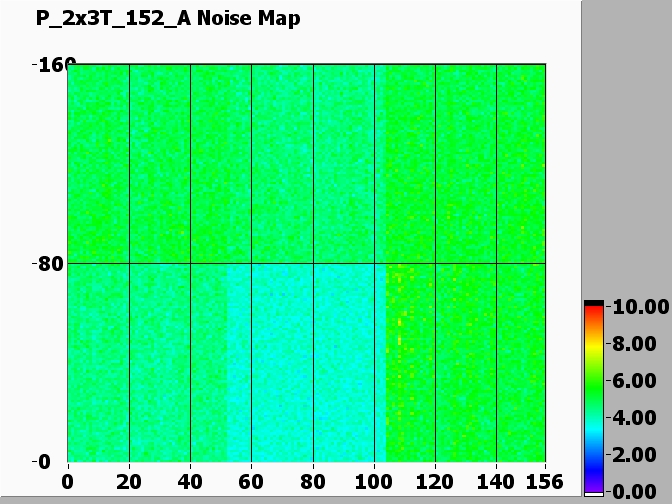

Noise MAP
![[IMAGE] of](P_2x3T_152_A-580-noise.jpg)

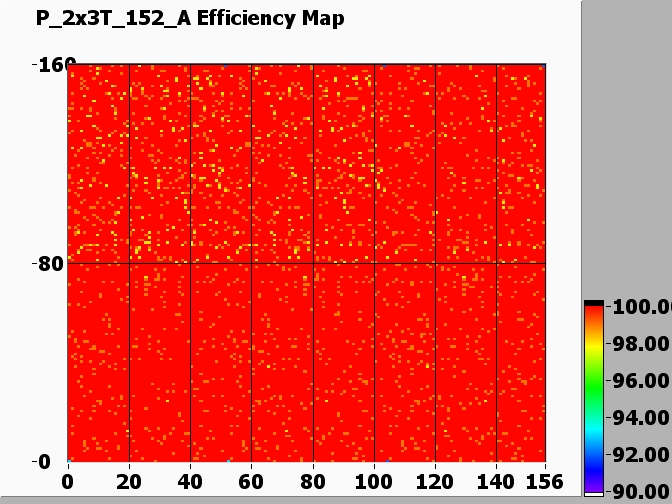

Efficiency MAP
![[IMAGE] of](P_2x3T_152_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
