P_2x3T_152

P_2x3T_152_A

Production testing

Date:3/5/2007

Operator: Joseph Clampitt

start testing time:1:37 PM

Sensor: S_2x3T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 75D

ROC1 W34_XA4K3PT 75B

ROC2 W34_XA4K3PT 75A

ROC3 W34_XA4K3PT 43A

ROC4 W34_XA4K3PT 43C

ROC5 W34_XA4K3PT 43D

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	75D
ROC1	W34_XA4K3PT	75B
ROC2	W34_XA4K3PT	75A
ROC3	W34_XA4K3PT	43A
ROC4	W34_XA4K3PT	43C
ROC5	W34_XA4K3PT	43D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 140 156 134 140 142 134

Vana, VanaData 138 144 143 129 130 126

CalDelData and plots 85 61 74 94 94 93

VthrCompData and plots 81 90 85 64 79 80

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

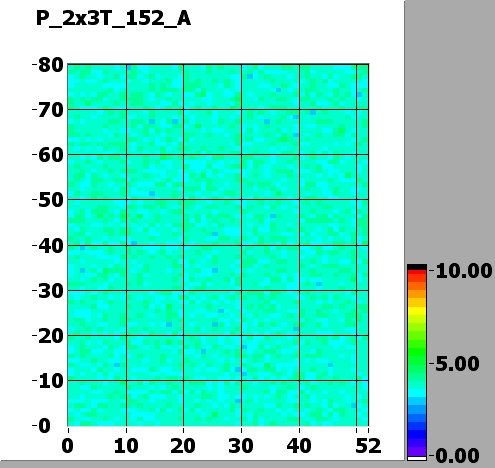

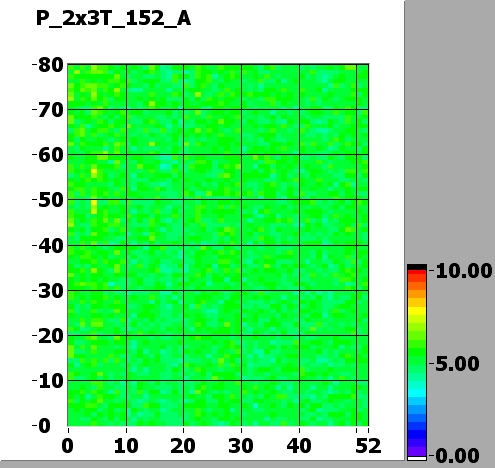

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	95	90	100	125	160
Vsf	140	145	145	135	135	145
VoffsetOp	100	120	95	75	75	70
VIbias_PH	95	100	105	105	100	100

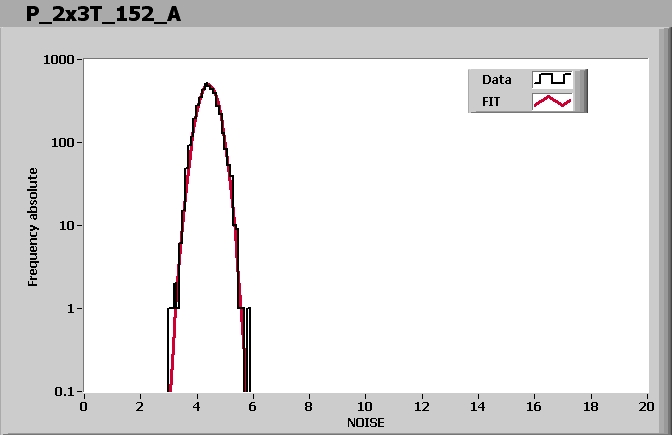

ROC0 NOISE			MEAN = 4.407504 SIGMA = 0.328732
ROC1 NOISE			MEAN = 3.739716 SIGMA = 0.279100

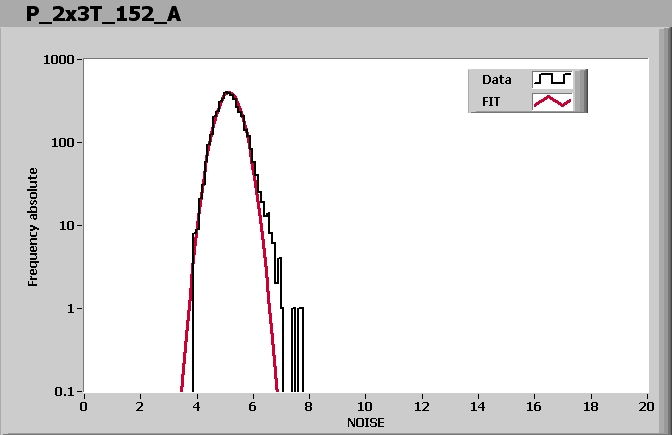

ROC2 NOISE			MEAN = 5.145592 SIGMA = 0.415894
ROC3 NOISE			MEAN = 5.107519 SIGMA = 0.404135

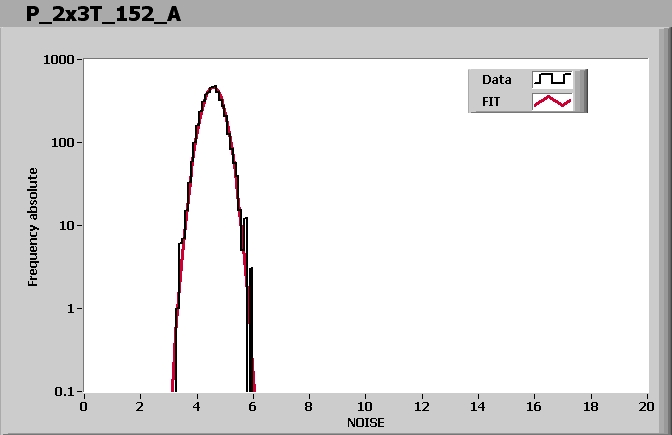

ROC4 NOISE			MEAN = 4.576059 SIGMA = 0.358288

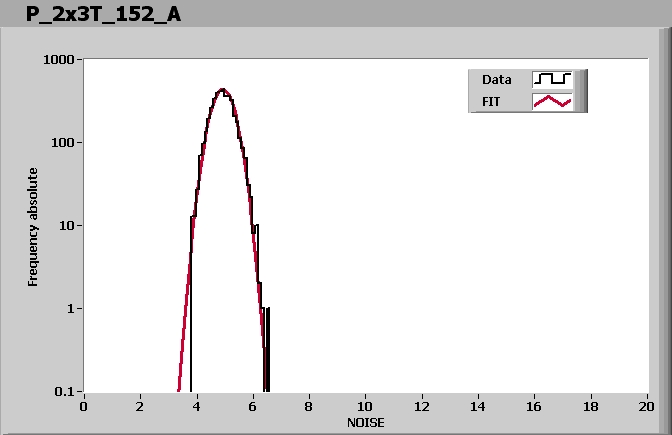

ROC5 NOISE			MEAN = 4.922226 SIGMA = 0.381310

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:58 PM

Ibias_DAC, Ibias_DAC Data	140	156	134	140	142	134
Vana, VanaData	138	144	143	129	130	126
CalDelData and plots	85	61	74	94	94	93
VthrCompData and plots	81	90	85	64	79	80
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
