![[IMAGE] of](P_2x3T_137_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 500 V |

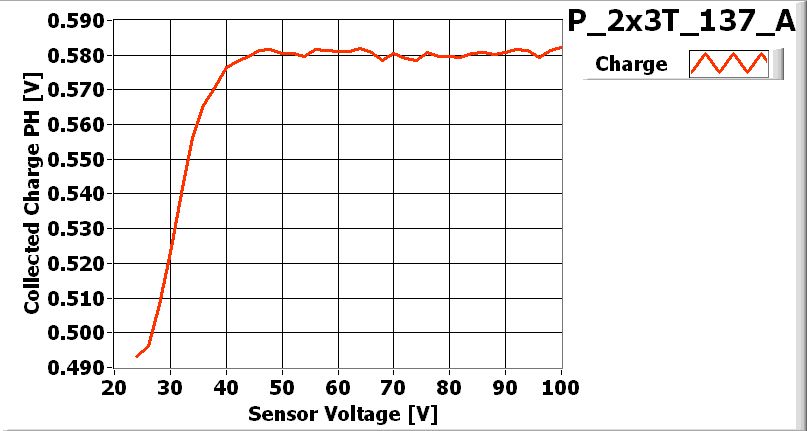

![[IMAGE] of](P_2x3T_137_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Bolla Gino on date 9/21/2007
| Part | ID |
|---|---|
| BBM | BBM_137-2x3T |
| VHDI | 2x3_701 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W54_D2LQG4T | 51A |
| ROC1 | W54_D2LQG4T | 68C |
| ROC2 | W54_D2LQG4T | 68A |
| ROC3 | W54_D2LQG4T | 30A |
| ROC4 | W54_D2LQG4T | 30C |
| ROC5 | W54_D2LQG4T | 30D |
Inspected by Lockwood Gale on date 10/2/2007
| LR_dev | 0.077 |
| LL_dev | 0.077 |
PLAQUETTE GLUED with MINIMUM PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. BBM joined to VHDI using minimal pressure. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 10/2/2007 by Lockwood Gale
PLAQUETTE encapsulated on 10/2/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 10/2/2007 by Ozhan Koybasi
P_2x3T_137_Aon 10/3/2007 12:47 PM
P_2x3T_137_A-1on 10/3/2007 12:50 PM
P_2x3T_137_A-2on 10/5/2007 10:38 AM
P_2x3T_137_A-2on 10/5/2007 10:38 AM
PLAQUETTE TESTED on 2007-10-05 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 160 | 158 | 146 | 156 | 150 | 290 | |
| Vana | 139 | 144 | 151 | 137 | 127 | 254 | |
| Cal_Del | 82 | 77 | 73 | 92 | 95 | 0 | |
| Vthrs_Comp | 84 | 84 | 83 | 76 | 72 | 0 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 5 | 2 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 5 | 2 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

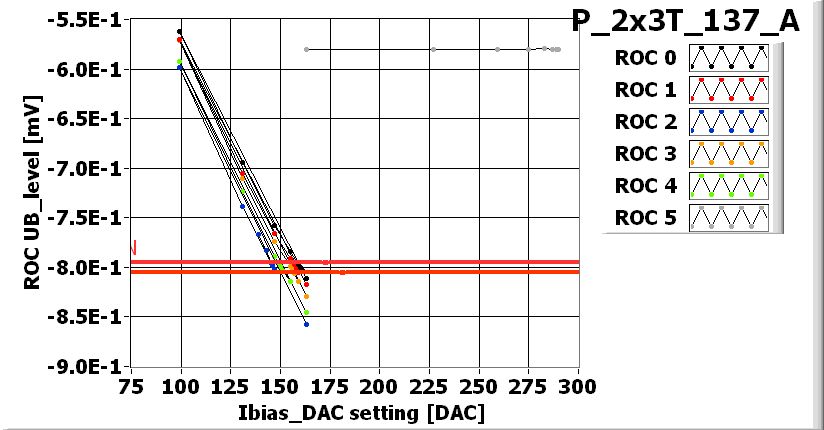

![[IMAGE] of](P_2x3T_137_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_137_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_137_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_137_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_137_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_137_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 85 | 105 | 0 | 0 |
| Vsf | 140 | 145 | 150 | 140 | 0 | 0 |
| VoffsetOp | 105 | 90 | 85 | 85 | 0 | 0 |
| VIbias_PH | 95 | 105 | 100 | 100 | 0 | 0 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_137_A-2-480-noise.jpg)

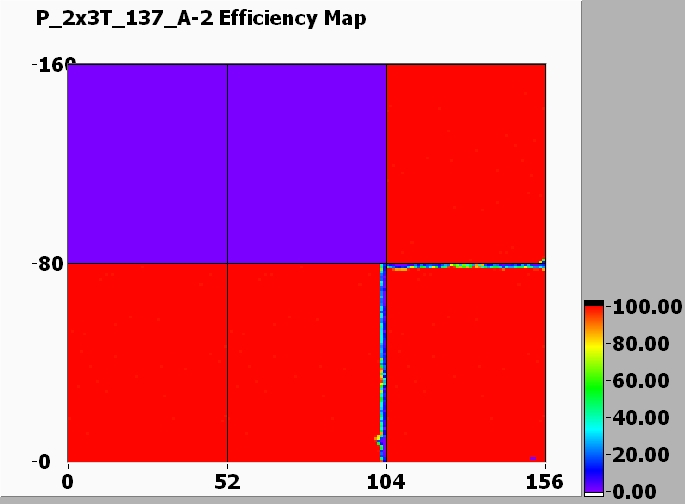

Efficiency MAP
![[IMAGE] of](P_2x3T_137_A-2-480-efficiency.jpg)

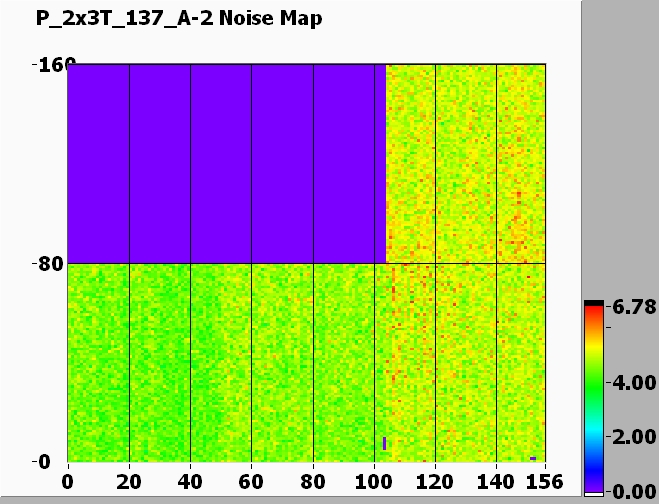

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_137_A-2-200-noise.jpg)

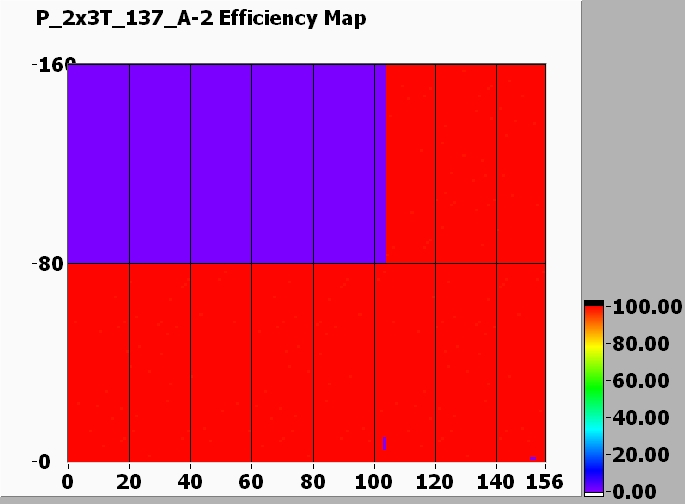

Efficiency MAP
![[IMAGE] of](P_2x3T_137_A-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
