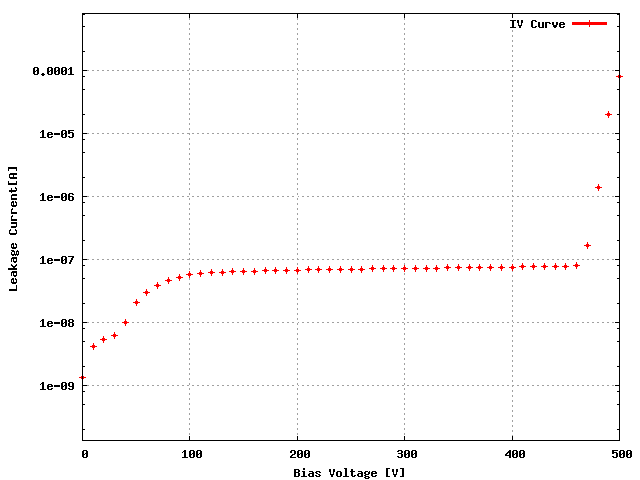

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W54_D2LQG4T | 51A |
ROC1 | W54_D2LQG4T | 68C |
ROC2 | W54_D2LQG4T | 68A |
ROC3 | W54_D2LQG4T | 30A |
ROC4 | W54_D2LQG4T | 30C |
ROC5 | W54_D2LQG4T | 30D |
Ibias_DAC, Ibias_DAC Data | 160 | 158 | 146 | 156 | 150 | 290 |
Vana, VanaData | 139 | 144 | 151 | 137 | 127 | 127 |
CalDelData and plots | 82 | 77 | 73 | 92 | 95 | 0 |
VthrCompData and plots | 84 | 84 | 83 | 76 | 72 | 0 | Depletion Voltage is -40 and suggested operational voltage is -80
TestDdata ,TestD Plots | 1 | 7 | 11 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

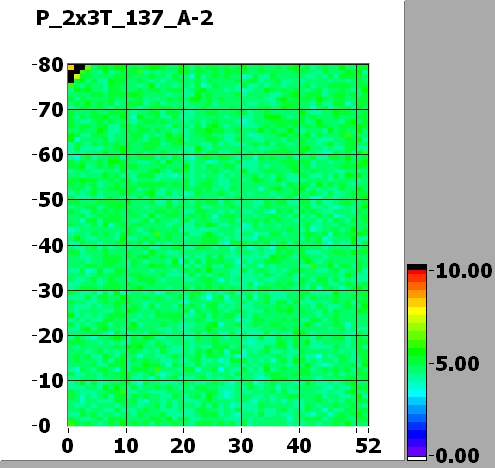

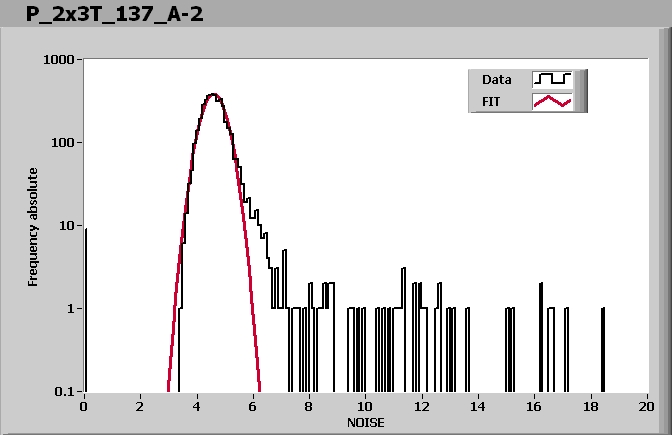

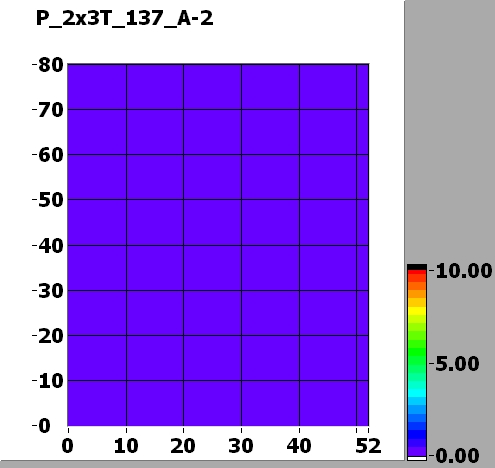

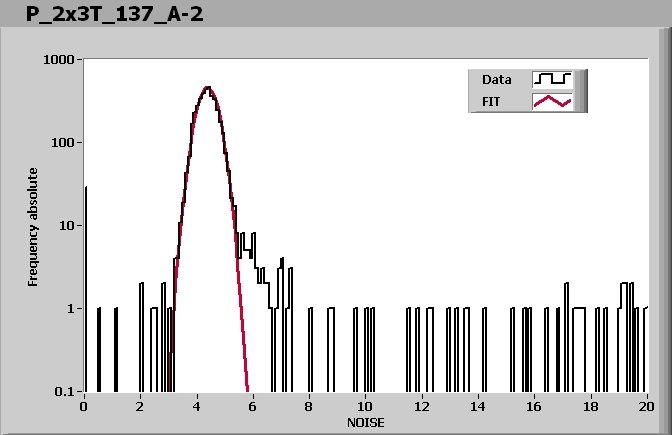

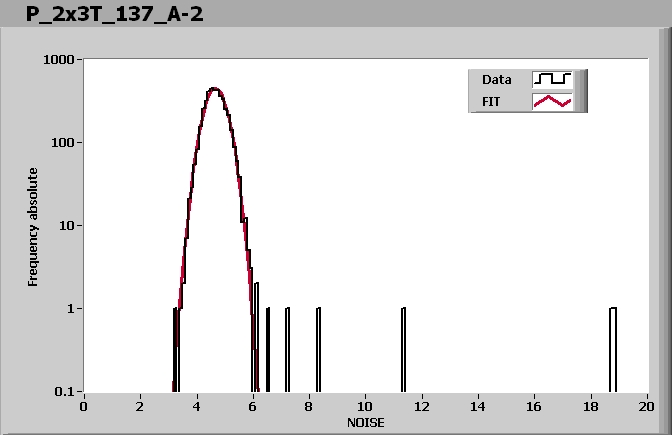

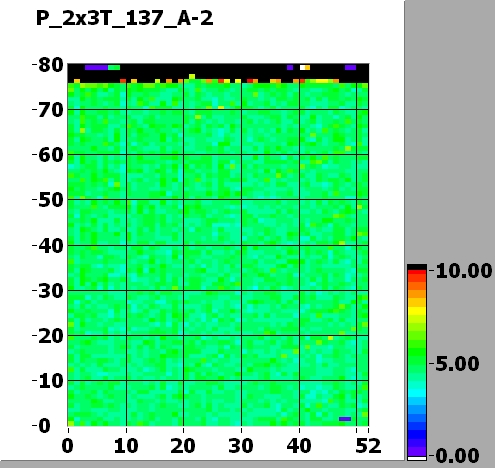

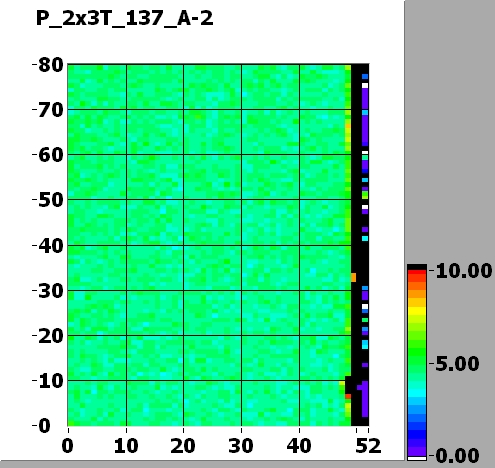

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 100 | 95 | 85 | 105 | 0 | 0 |
Vsf | 140 | 145 | 150 | 140 | 0 | 0 |
VoffsetOp | 105 | 90 | 85 | 85 | 0 | 0 |
VIbias_PH | 95 | 105 | 100 | 100 | 0 | 0 |
Comment (if any): One of the ROCs is not working
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 11:07 AM
