![[IMAGE] of](P_2x3T_136_A_IV.jpg)

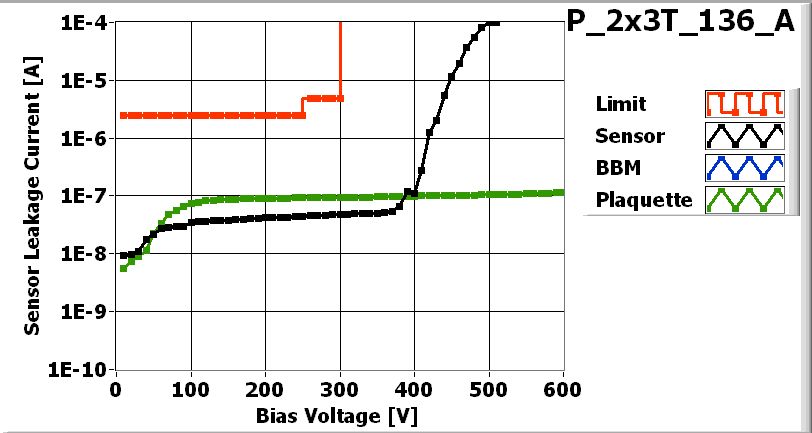

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_136_A_LASER.jpg)

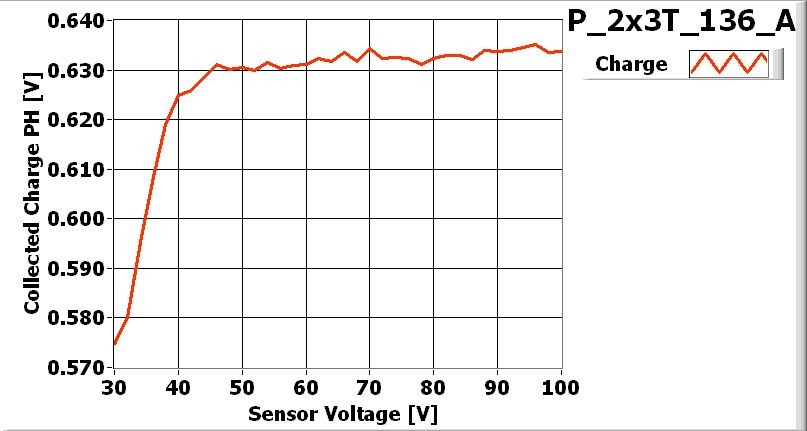

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_136-2x3T |
| VHDI | 2x3_749 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 76D |
| ROC1 | W52_DOLQC8T | 75C |
| ROC2 | W52_DOLQC8T | 75A |
| ROC3 | W52_DOLQC8T | 44B |
| ROC4 | W52_DOLQC8T | 44C |
| ROC5 | W52_DOLQC8T | 44D |
Inspected by Arndt Kirk on date 12/6/2007
| LR_dev | 0.058 |
| LL_dev | 0.056 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. Bond pads on VHDI for ROC2 bonds are narrow. ROC2 ch 18 2FL 2 tries, ROC4 ch 28 WO 2 tries. No other wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/6/2007 by Arndt Kirk
PLAQUETTE encapsulated on 12/7/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/7/2007 by Ozhan Koybasi
P_2x3T_136_Aon 12/7/2007 4:25 PM
P_2x3T_136_Aon 12/7/2007 4:25 PM
PLAQUETTE TESTED on 2007-12-07 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 166 | 176 | 176 | 160 | 162 | 158 | |
| Vana | 149 | 149 | 166 | 154 | 144 | 158 | |
| Cal_Del | 66 | 80 | 51 | 62 | 64 | 83 | |
| Vthrs_Comp | 88 | 88 | 87 | 86 | 92 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_136_A_Ibias-dac.jpg) |

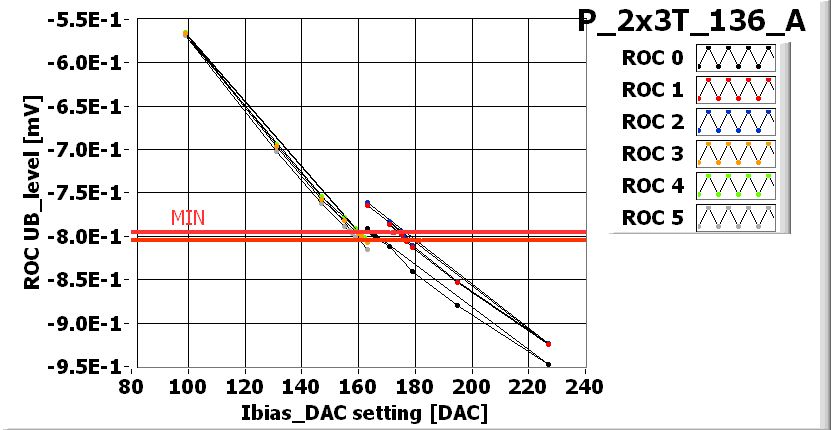

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_136_A_Vana.jpg) |

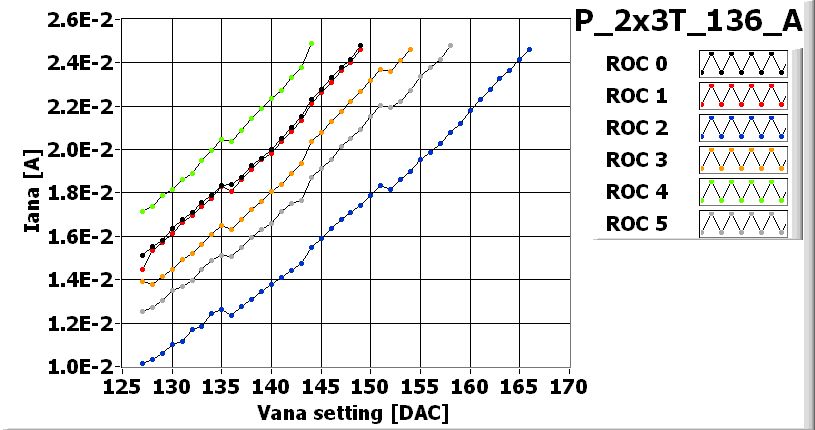

VANA_XML-File |
![[IMAGE] of](P_2x3T_136_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_136_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_136_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_136_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 100 | 105 | 110 | 95 | 105 |
| Vsf | 150 | 150 | 165 | 150 | 150 | 150 |
| VoffsetOp | 100 | 135 | 145 | 125 | 125 | 135 |
| VIbias_PH | 100 | 100 | 100 | 95 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_136_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_136_A-580-efficiency.jpg)

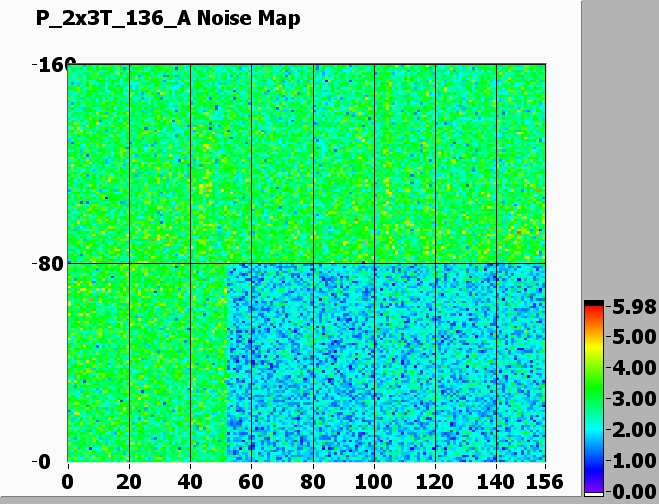

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_136_A-200-noise.jpg)

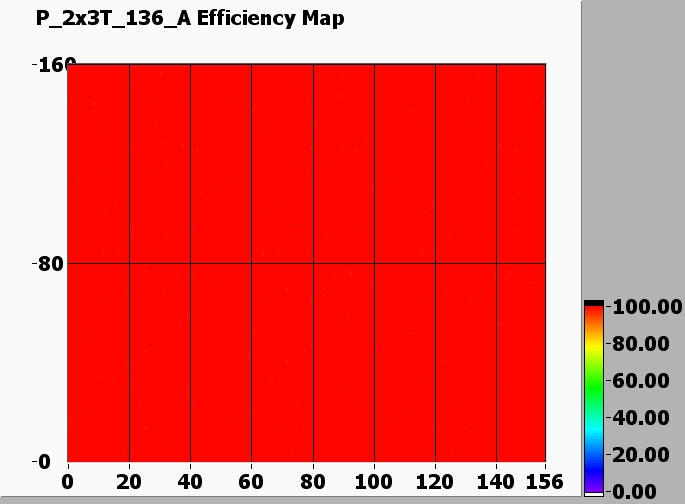

Efficiency MAP
![[IMAGE] of](P_2x3T_136_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
