P_2x3T_136

P_2x3T_136_A

Production testing

Date:12/7/2007

Operator: Ozhan Koybasi

start testing time:4:25 PM

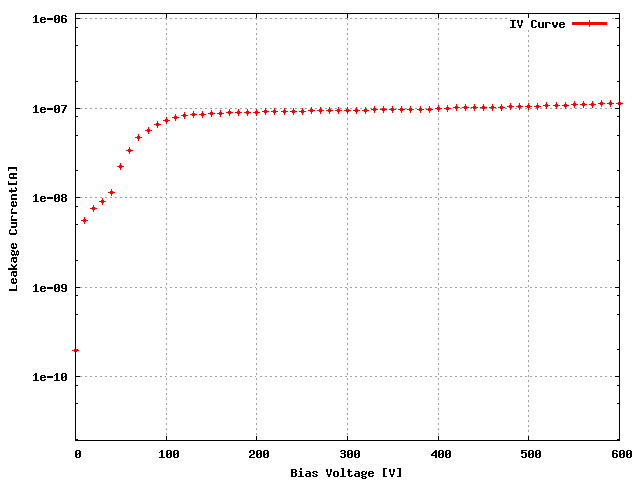

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_DOLQC8T 76D

ROC1 W52_DOLQC8T 75C

ROC2 W52_DOLQC8T 75A

ROC3 W52_DOLQC8T 44B

ROC4 W52_DOLQC8T 44C

ROC5 W52_DOLQC8T 44D

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	76D
ROC1	W52_DOLQC8T	75C
ROC2	W52_DOLQC8T	75A
ROC3	W52_DOLQC8T	44B
ROC4	W52_DOLQC8T	44C
ROC5	W52_DOLQC8T	44D

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 166 176 176 160 162 158

Vana, VanaData 149 149 166 154 144 158

CalDelData and plots 66 80 51 62 64 83

VthrCompData and plots 88 88 87 86 92 88

TestDdata ,TestD Plots 0 0 0 0 0 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

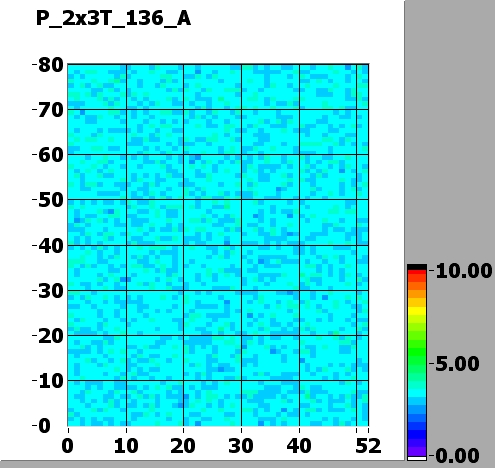

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	100	105	110	95	105
Vsf	150	150	165	150	150	150
VoffsetOp	100	135	145	125	125	135
VIbias_PH	100	100	100	95	100	100

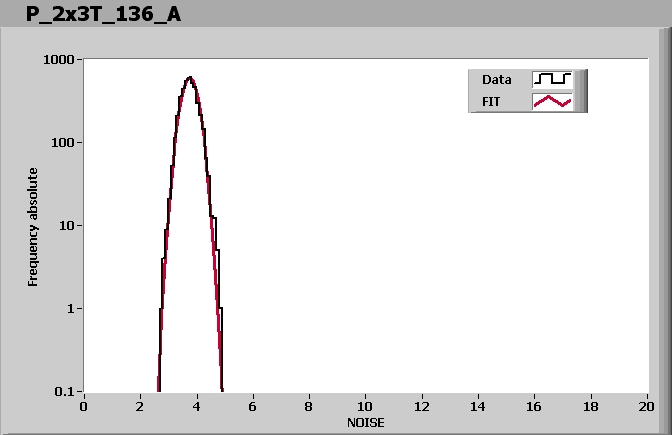

ROC0 NOISE			MEAN = 3.743728 SIGMA = 0.272500

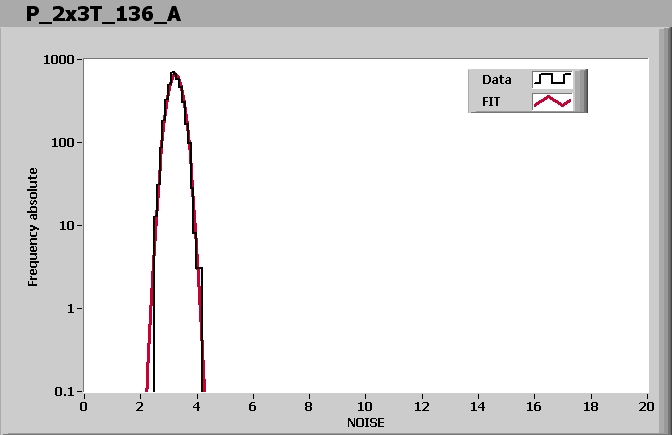

ROC1 NOISE			MEAN = 3.235725 SIGMA = 0.241853

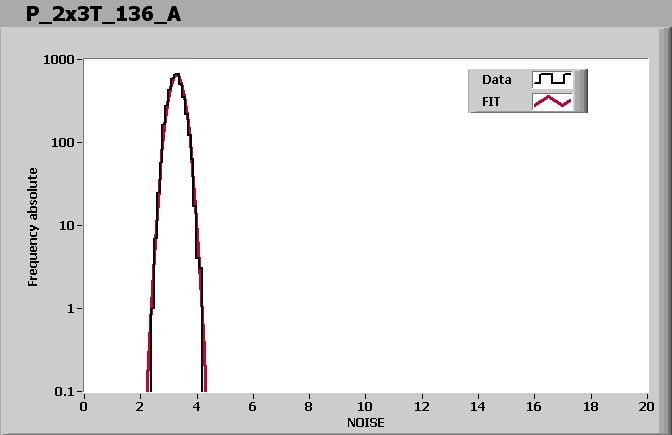

ROC2 NOISE			MEAN = 3.274905 SIGMA = 0.248872
ROC3 NOISE			MEAN = 3.724044 SIGMA = 0.297142

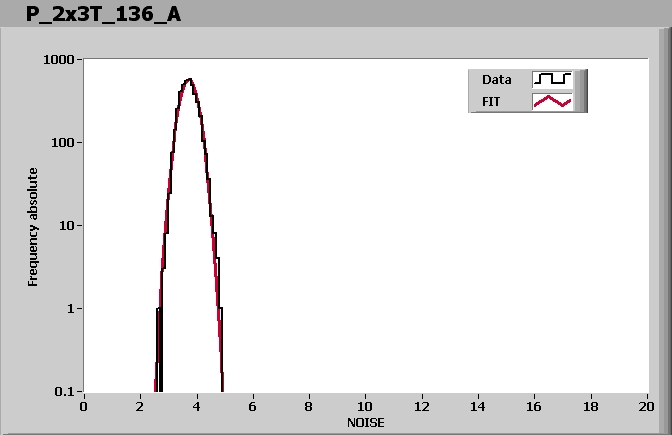

ROC4 NOISE			MEAN = 3.710902 SIGMA = 0.288836

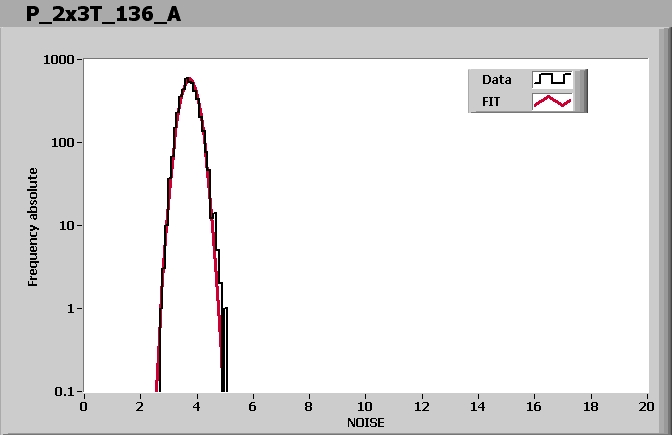

ROC5 NOISE			MEAN = 3.734157 SIGMA = 0.285280

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:53 PM

Ibias_DAC, Ibias_DAC Data	166	176	176	160	162	158
Vana, VanaData	149	149	166	154	144	158
CalDelData and plots	66	80	51	62	64	83
VthrCompData and plots	88	88	87	86	92	88
TestDdata ,TestD Plots	0	0	0	0	0	1
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
