Parts committed by Bolla Gino on date 3/21/2007
| Part | ID |
|---|---|
| BBM | BBM_135-2x3T |
| VHDI | 2x3_501 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 32A |
| ROC1 | W36_XD4K3LT | 31A |
| ROC2 | W36_XD4K3LT | 30D |
| ROC3 | W36_XD4K3LT | 51D |
| ROC4 | W36_XD4K3LT | 52C |
| ROC5 | W36_XD4K3LT | 52D |
Inspected by Arndt Kirk on date 3/26/2007
| Picture | Comment |
|---|---|

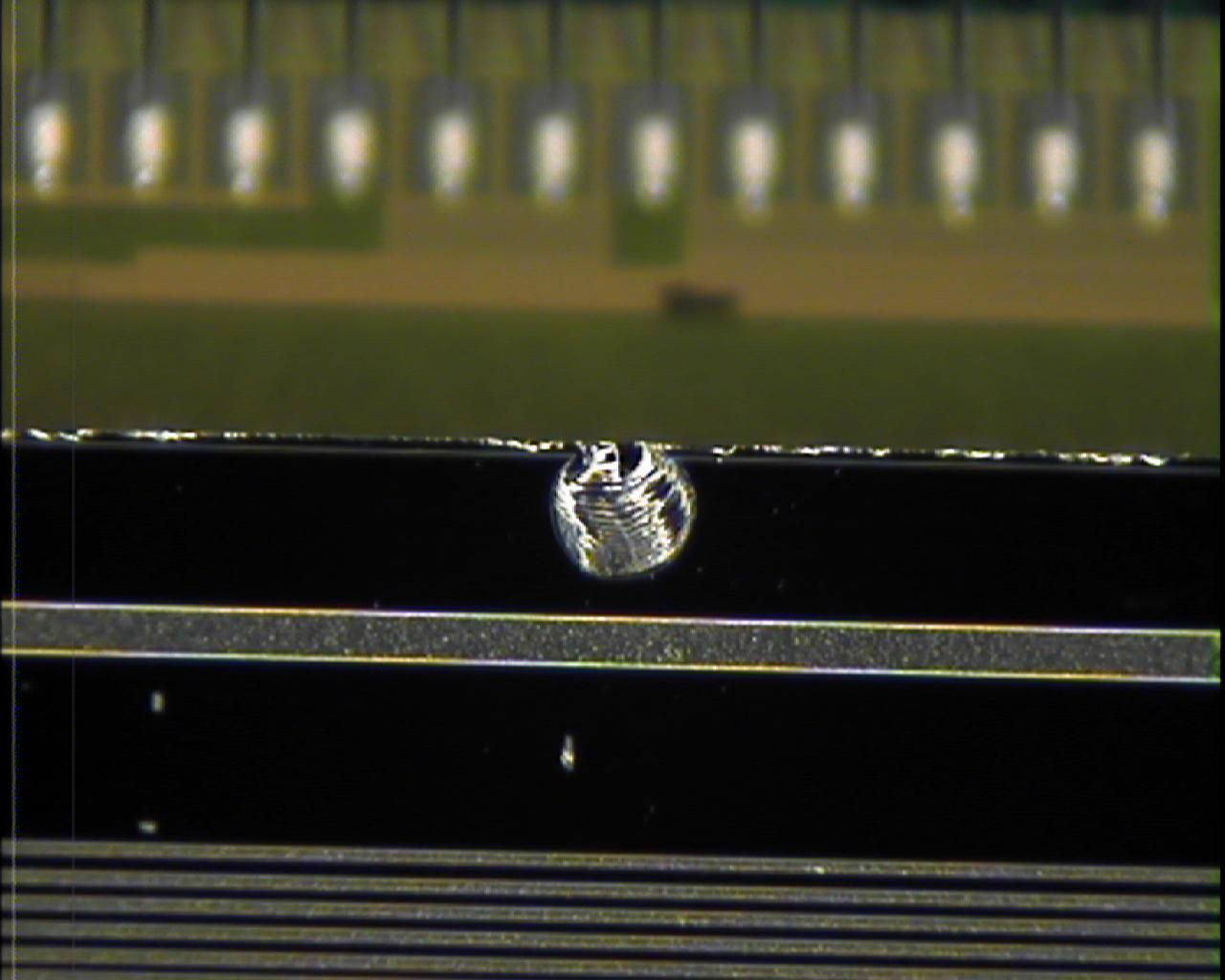

| Chip out of sensor above ROC5 noticed during wirebond visual inspection. |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.080 |
| LL_dev | 0.087 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 5 ch 34,35 two attempts, all bonded out fine. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x3T_135_Aon 3/29/2007 11:51 AM
P_2x3T_135_Aon 3/29/2007 11:51 AM
PLAQUETTE TESTED on 2007-03-29 by Joseph Clampitt

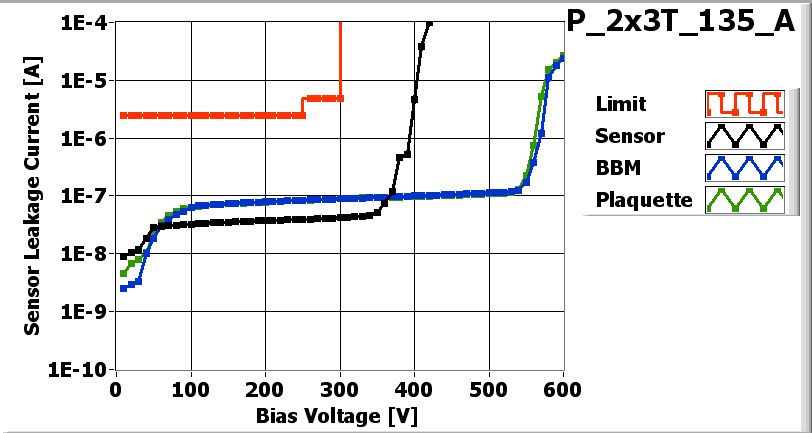

![[IMAGE] of](P_2x3T_135_A_IV.jpg) |
|
|||

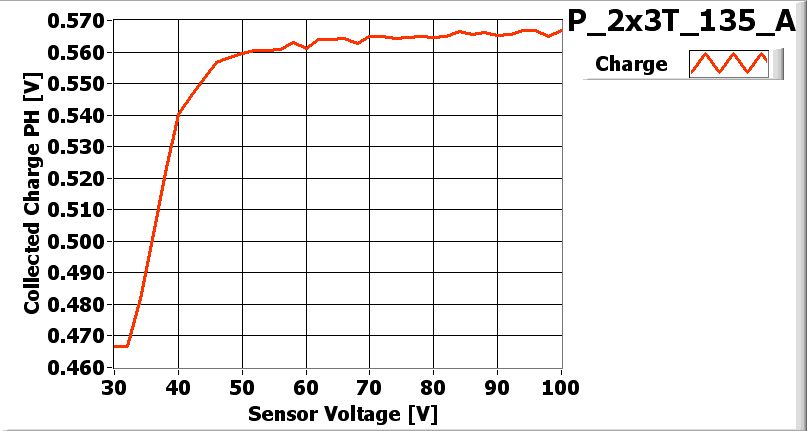

![[IMAGE] of](P_2x3T_135_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 132 | 132 | 130 | 124 | 148 | 150 | |
| Vana | 131 | 142 | 132 | 131 | 151 | 132 | |
| Cal_Del | 79 | 91 | 91 | 100 | 78 | 84 | |
| Vthrs_Comp | 80 | 82 | 70 | 65 | 86 | 75 | |
| Unbumped | 4 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 4 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

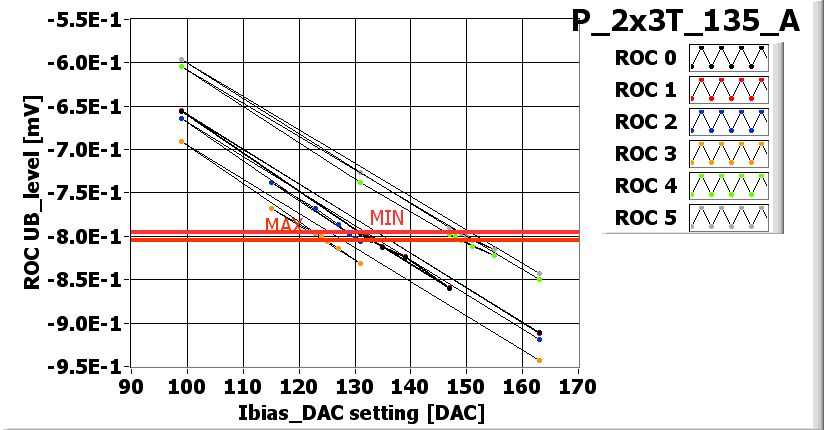

![[IMAGE] of](P_2x3T_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

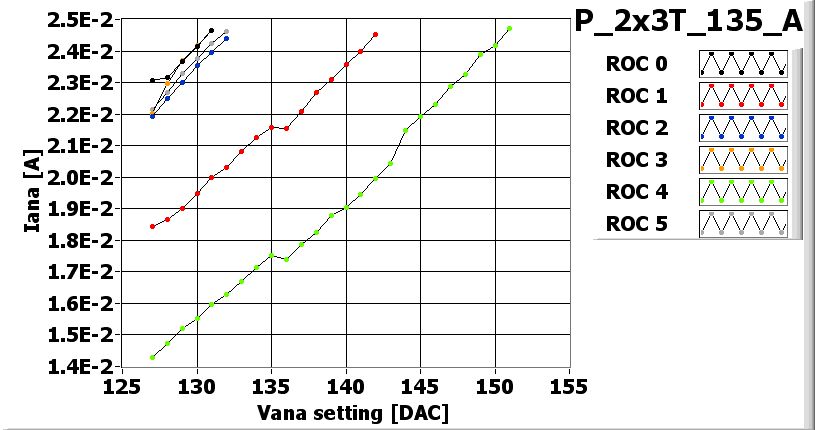

![[IMAGE] of](P_2x3T_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 95 | 85 | 90 | 95 | 115 |
| Vsf | 140 | 140 | 135 | 140 | 145 | 140 |
| VoffsetOp | 70 | 95 | 75 | 80 | 100 | 75 |
| VIbias_PH | 95 | 100 | 100 | 100 | 100 | 100 |

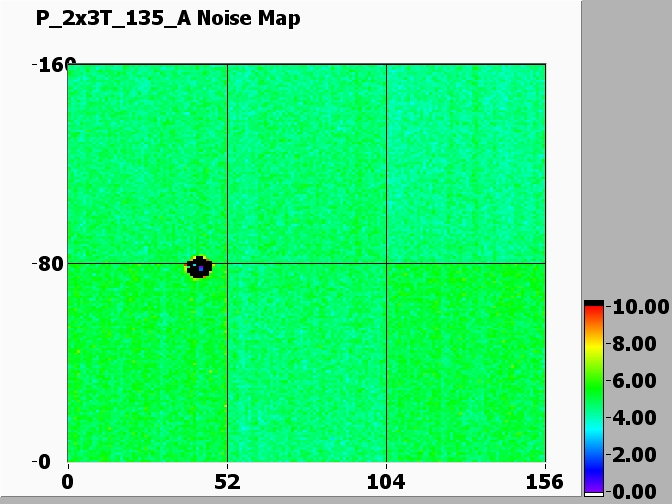

Noise MAP
![[IMAGE] of](P_2x3T_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_135_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
