P_2x3T_135

P_2x3T_135_A

Production testing

Date:3/29/2007

Operator: Joseph Clampitt

start testing time:11:51 AM

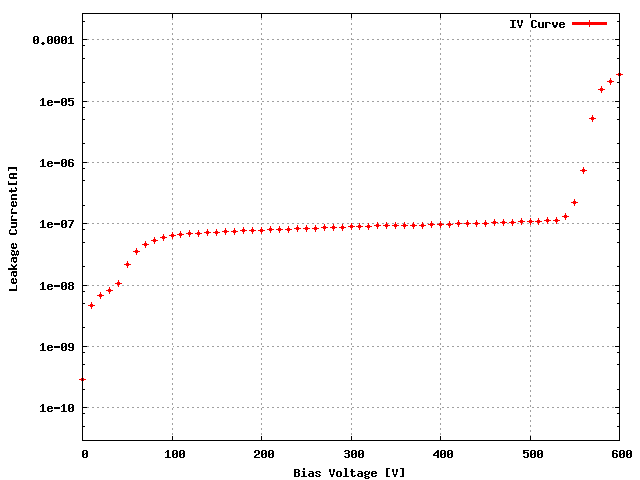

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W36_XD4K3LT 32A

ROC1 W36_XD4K3LT 31A

ROC2 W36_XD4K3LT 30D

ROC3 W36_XD4K3LT 51D

ROC4 W36_XD4K3LT 52C

ROC5 W36_XD4K3LT 52D

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	32A
ROC1	W36_XD4K3LT	31A
ROC2	W36_XD4K3LT	30D
ROC3	W36_XD4K3LT	51D
ROC4	W36_XD4K3LT	52C
ROC5	W36_XD4K3LT	52D

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 132 132 130 124 148 150

Vana, VanaData 131 142 132 131 151 132

CalDelData and plots 79 91 91 100 78 84

VthrCompData and plots 80 82 70 65 86 75

TestDdata ,TestD Plots 4 0 0 1 0 0

LightData ,Light Plots 4 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	95	85	90	95	115
Vsf	140	140	135	140	145	140
VoffsetOp	70	95	75	80	100	75
VIbias_PH	95	100	100	100	100	100

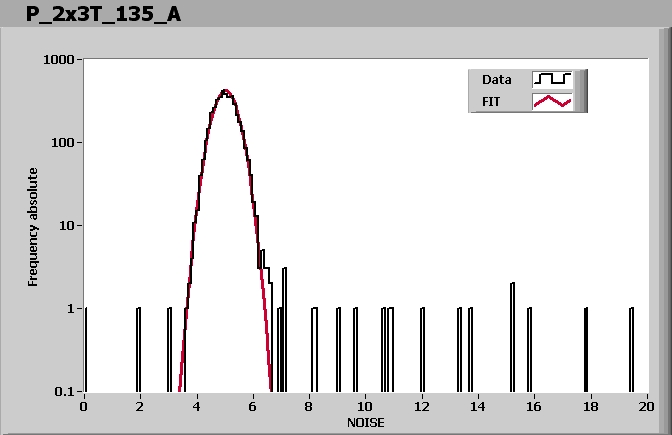

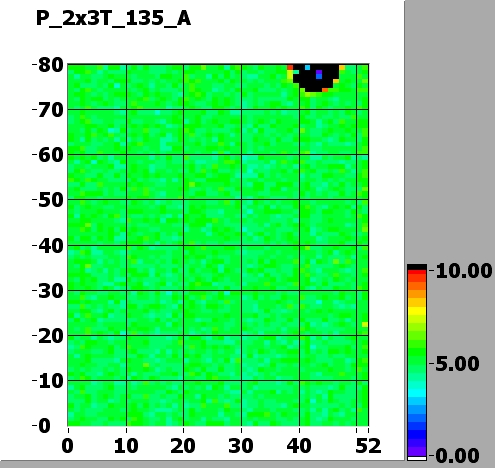

ROC0 NOISE			MEAN = 5.013799 SIGMA = 0.398208
ROC1 NOISE			MEAN = 4.598772 SIGMA = 0.367010
ROC2 NOISE			MEAN = 4.974846 SIGMA = 0.385901

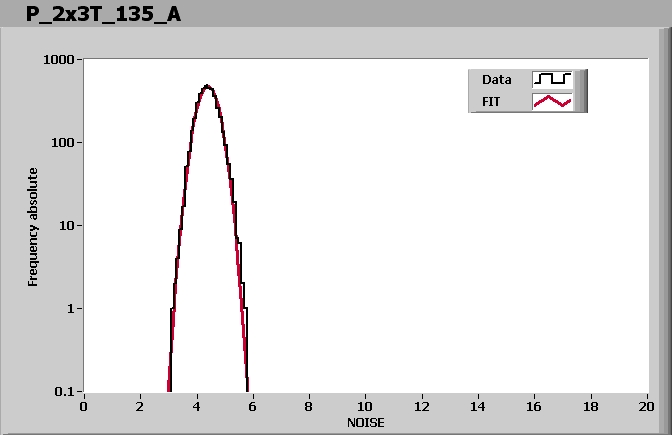

ROC3 NOISE			MEAN = 4.387265 SIGMA = 0.342821
ROC4 NOISE			MEAN = 4.573429 SIGMA = 0.349769

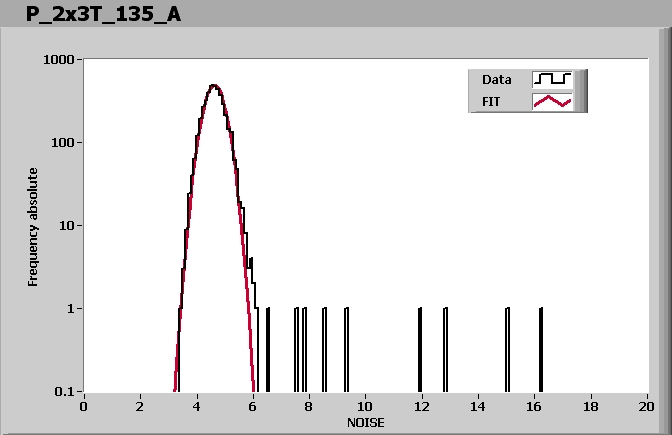

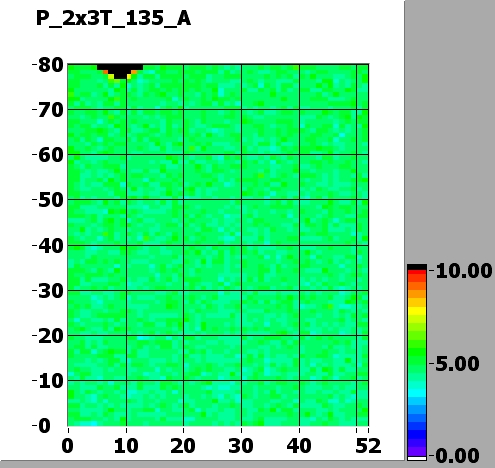

ROC5 NOISE			MEAN = 4.623968 SIGMA = 0.340559

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:10 PM

Ibias_DAC, Ibias_DAC Data	132	132	130	124	148	150
Vana, VanaData	131	142	132	131	151	132
CalDelData and plots	79	91	91	100	78	84
VthrCompData and plots	80	82	70	65	86	75
TestDdata ,TestD Plots	4	0	0	1	0	0
LightData ,Light Plots	4	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
