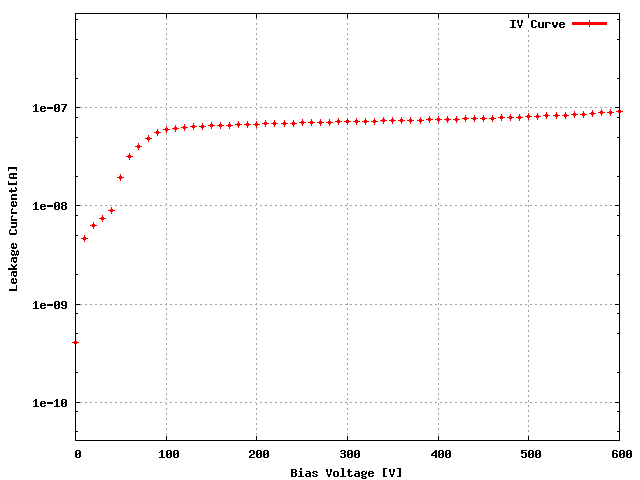

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K5HT | 37B |
ROC1 | W35_XH4K5HT | 37A |
ROC2 | W35_XH4K5HT | 36D |
ROC3 | W35_XH4K5HT | 43B |
ROC4 | W35_XH4K5HT | 43D |
ROC5 | W35_XH4K5HT | 44A |
Ibias_DAC, Ibias_DAC Data | 136 | 128 | 144 | 140 | 142 | 132 |
Vana, VanaData | 111 | 134 | 140 | 127 | 130 | 127 |
CalDelData and plots | 81 | 76 | 82 | 90 | 85 | 87 |
VthrCompData and plots | 73 | 76 | 75 | 65 | 73 | 79 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 1 | 0 | 0 | 7 | 9 | 3 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 1 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

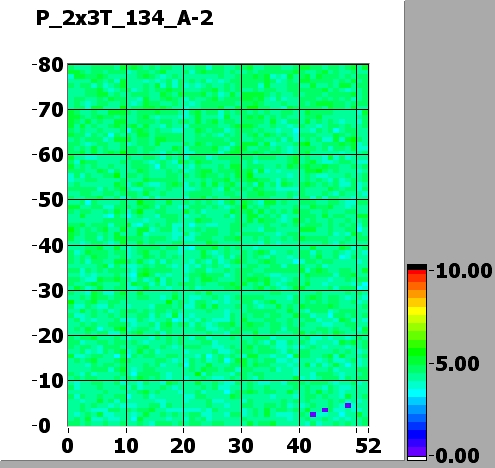

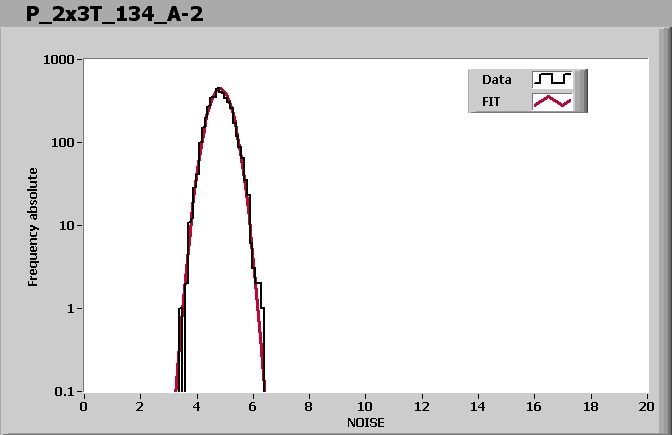

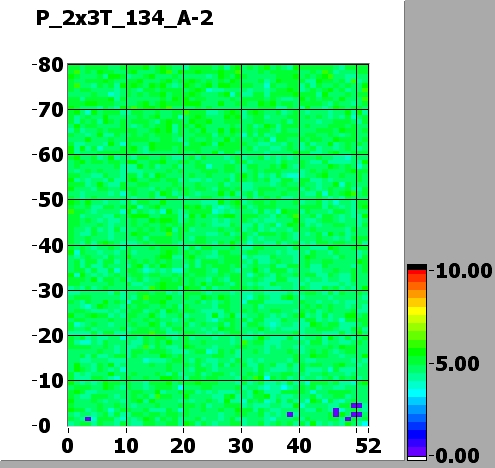

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 160 | 125 | 85 | 130 | 105 | 130 |
Vsf | 135 | 145 | 140 | 140 | 140 | 140 |
VoffsetOp | 65 | 75 | 95 | 80 | 70 | 85 |
VIbias_PH | 100 | 105 | 100 | 100 | 100 | 95 |
Comment (if any): Good plaquette
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 4:27 PM
