P_2x3T_134_A

Production testing

Date:4/5/2007

Operator: Joseph Clampitt

start testing time:11:33 AM

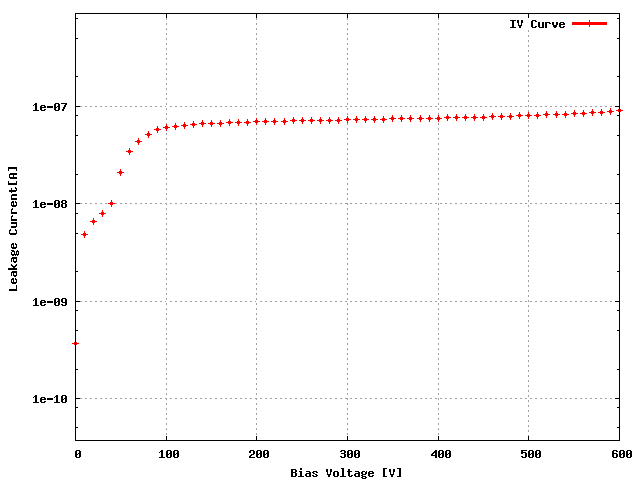

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W35_XH4K5HT37B
ROC1W35_XH4K5HT37A
ROC2W35_XH4K5HT36D
ROC3W35_XH4K5HT43B
ROC4W35_XH4K5HT43D
ROC5W35_XH4K5HT44A

CalDel numbers are much too low.
Ibias_DAC, Ibias_DAC Data 136 128 144 140 140 132
Vana, VanaData 111 134 141 128 130 127
CalDelData and plots000521
VthrCompData and plots909794838995
