![[IMAGE] of](P_2x3T_132_A_IV.jpg)

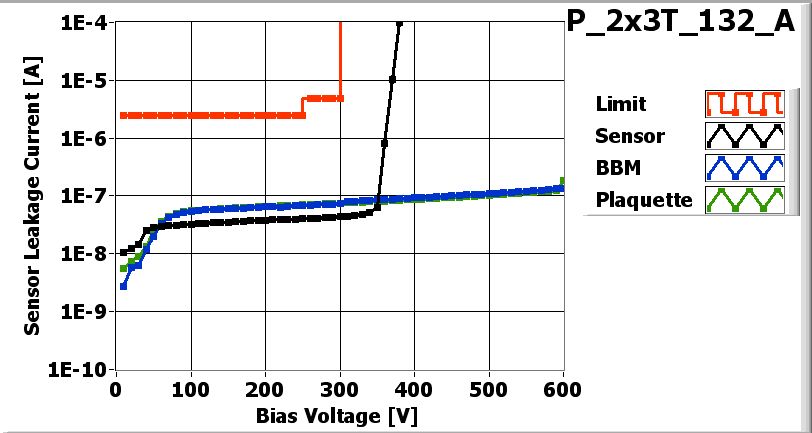

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_132_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_132-2x3T |
| VHDI | 2x3_619 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 57B |
| ROC1 | W45_D3LQFLT | 57A |
| ROC2 | W45_D3LQFLT | 56C |
| ROC3 | W45_D3LQFLT | 39A |
| ROC4 | W45_D3LQFLT | 39B |
| ROC5 | W45_D3LQFLT | 39C |
Inspected by Lockwood Gale on date 6/8/2007
| LR_dev | 0.023 |
| LL_dev | 0.024 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/8/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/8/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/8/2007 by Kozak Brian
P_2x3T_132_Aon 6/11/2007 9:29 AM
P_2x3T_132_Aon 6/11/2007 9:29 AM
PLAQUETTE TESTED on 2007-06-11 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 146 | 152 | 140 | 170 | 160 | 160 | |
| Vana | 145 | 135 | 133 | 166 | 149 | 148 | |
| Cal_Del | 70 | 76 | 98 | 66 | 93 | 86 | |
| Vthrs_Comp | 90 | 88 | 76 | 90 | 85 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 119 | 4 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 119 | 4 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_132_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_132_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_132_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_132_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_132_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_132_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 100 | 95 | 100 | 95 | 95 |
| Vsf | 145 | 145 | 140 | 160 | 150 | 150 |
| VoffsetOp | 90 | 100 | 80 | 115 | 115 | 125 |
| VIbias_PH | 100 | 105 | 105 | 105 | 95 | 105 |

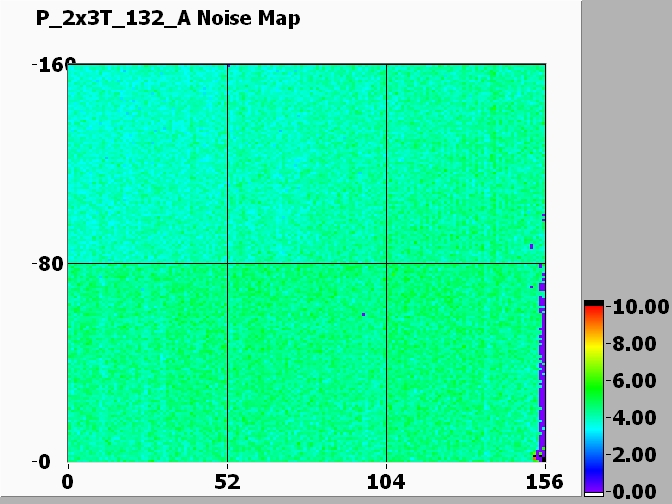

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_132_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_132_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3T_132_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_132_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
